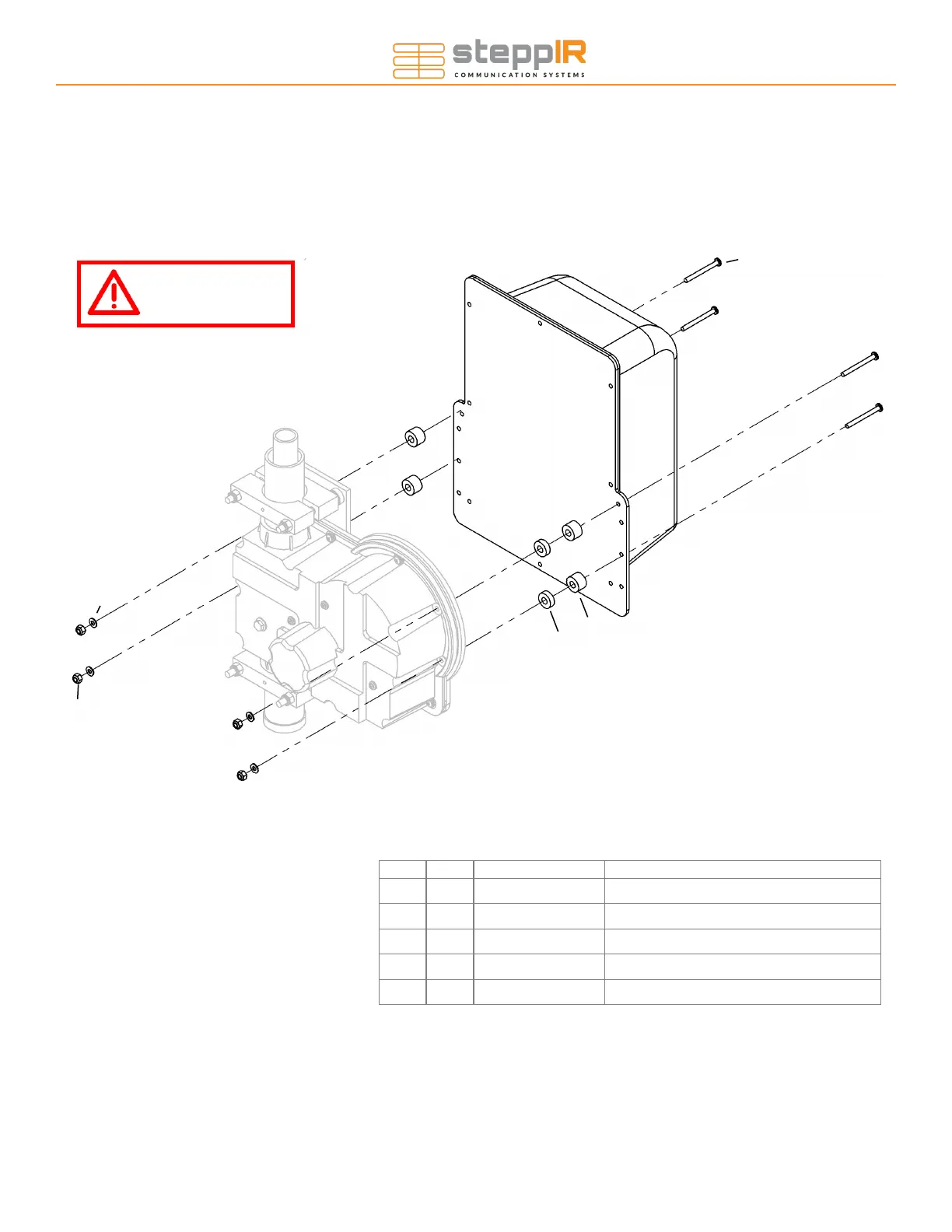

Section 1.3: 80m Base Coil Installation (skip if 80m coil is not purchased)
ASSEMBLY
Key QTY Part Number Description
A 4 60-0095 Screw, 10-32 x 2", Panhead, Phillips, S/S
B 4 60-1004-01 Spacer, 1/2", Nylon
C 2 10-1613-11 AL Spacer, 1/4" X 5/16" ID X 3/4" OD
D 4 60-0018 Washer, 10-32, Flat
E 4 60-0019 Nut, 10-32, Nylock
Use anti-seize on
all SS hardware!
A
B
C
D
E
