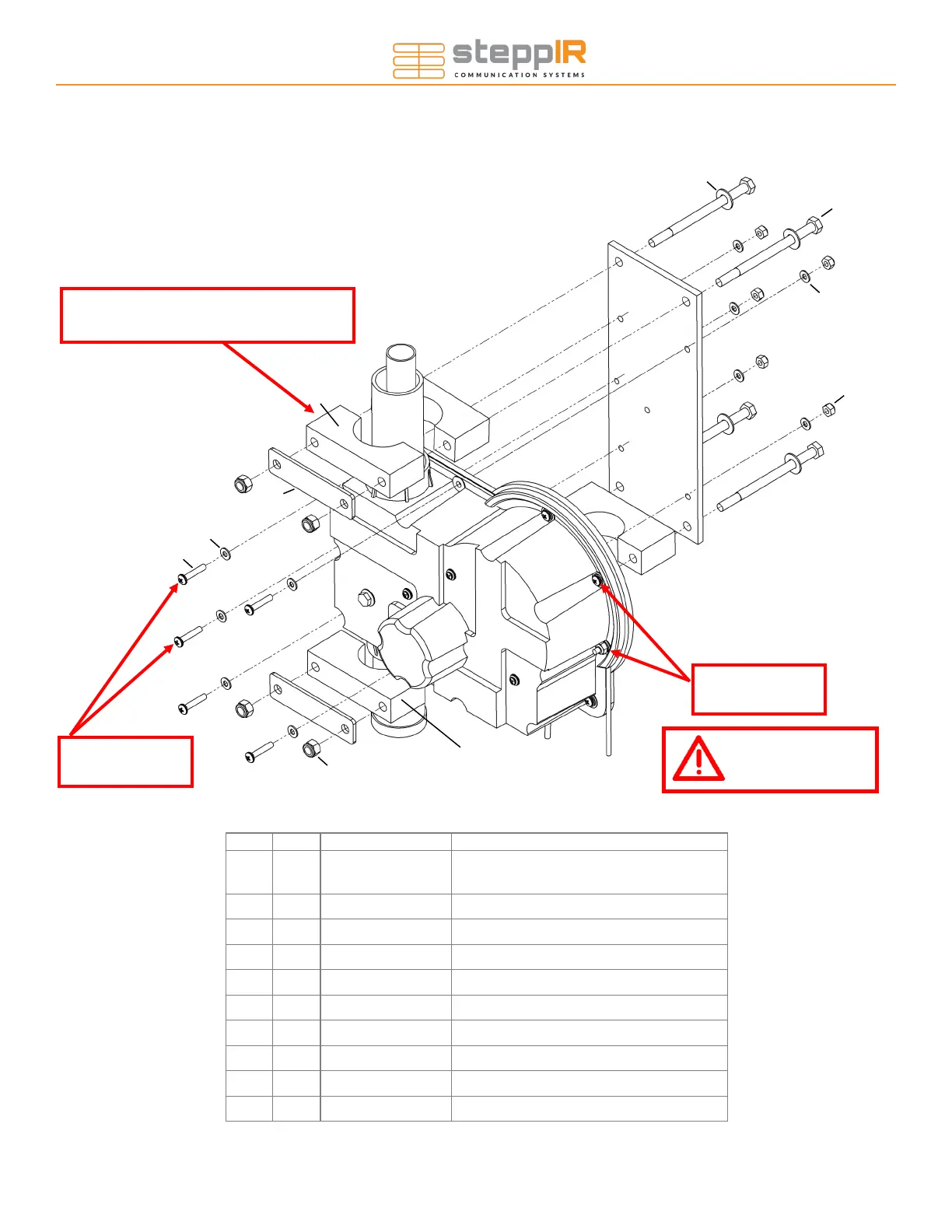

Section 1.3: High wind kit assembly (only follow if you have plastic saddles)
ASSEMBLY
Key QTY Part Number Description
A 2 10-1611-31
Plastic Saddle, 1.75" medium - BigIR/
StealthIR
B 2 10-1611-51 Plastic Saddle, 2" - BigIR/StealthIR
C 1 10-1021-54 Reinforcing Plate, for High wind kit EHU
D 2 10-1614-01 Plastic Saddle Reinforcement Plate
E 4 60-0115 Bolt, 5/16" x 4.5", S/S
F 4 60-0033 Washer, 5/16", Flat, S/S
G 4 60-0046 Nut, 5/16" -18, Nylock, S/S
H 5 60-0071 Screw, 10-32 x 1", Panhead, Phillips, S/S
I 10 60-0018 Washer, 10-32, Flat
J 5 60-0019 Nut, 10-32, Nylock
A
B
C
E
F
D
H
I
J
Use anti-seize on
all SS hardware!
Leave 2” saddles loose until EST
extension assembly is installed
Do not install if
using loading coil
I
Do not install if
using loading coil
G
