Tech Support: consumer.steppir.com/support | 425.453.1910 | support@steppir.com
17

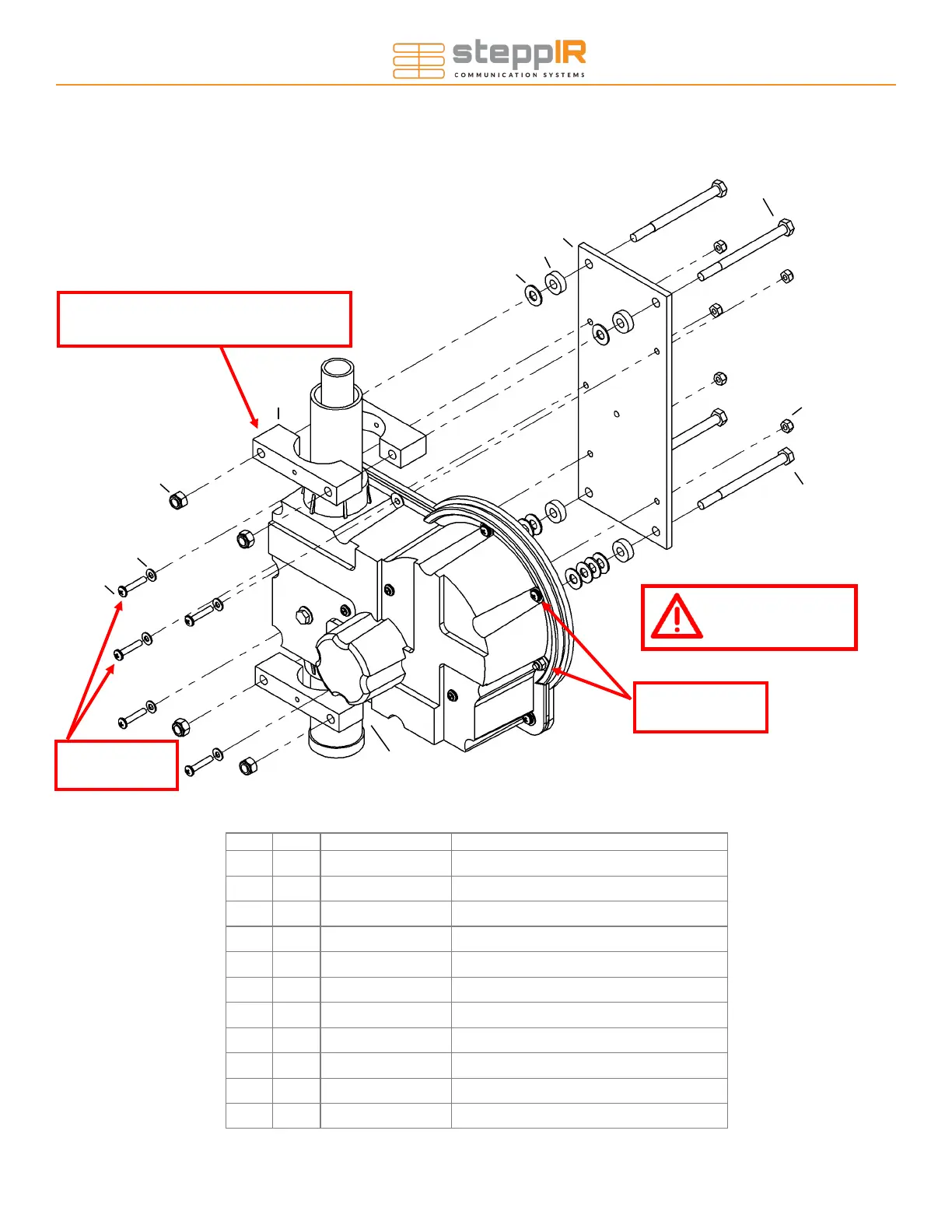

Section 1.3: High wind kit assembly (only follow if you have aluminum saddles)
ASSEMBLY
Key QTY Part Number Description
A 2 10-1601-03 Saddle, 1-3/4" x 3/4”
B 2 10-1601-22 Saddle, 2" x 3/4”
C 1 10-1021-54 Reinforcing Plate, for High wind kit EHU
D 2 60-0066 Bolt, 5/16" x 4", S/S
E 2 60-0114 Bolt, 5/16" x 3-3/4", S/S
F 10 60-0033 Washer, 5/16", Flat, S/S
G 4 10-1613-11 AL Spacer, 1/4" X 5/16" ID X 3/4" OD
H 4 60-0046 Nut, 5/16" -18, Nylock, S/S
I 5 60-0071 Screw, 10-32 x 1", Panhead, Phillips, S/S
J 5 60-0018 Washer, 10-32, Flat
K 5 60-0019 Nut, 10-32, Nylock
A
B
C
D
E
F
G
H
I
J
K
Use anti-seize on
all SS hardware!
Leave 2” saddles loose until EST
extension assembly is installed
Do not install if
using 80m coil
Do not install if
using loading coil
To Next Page
