59
fullload
speedrange
100%
90%
80%
70%
60%
50%
40%
30%
B
C D
RPM
A
OUTPUT
POWER

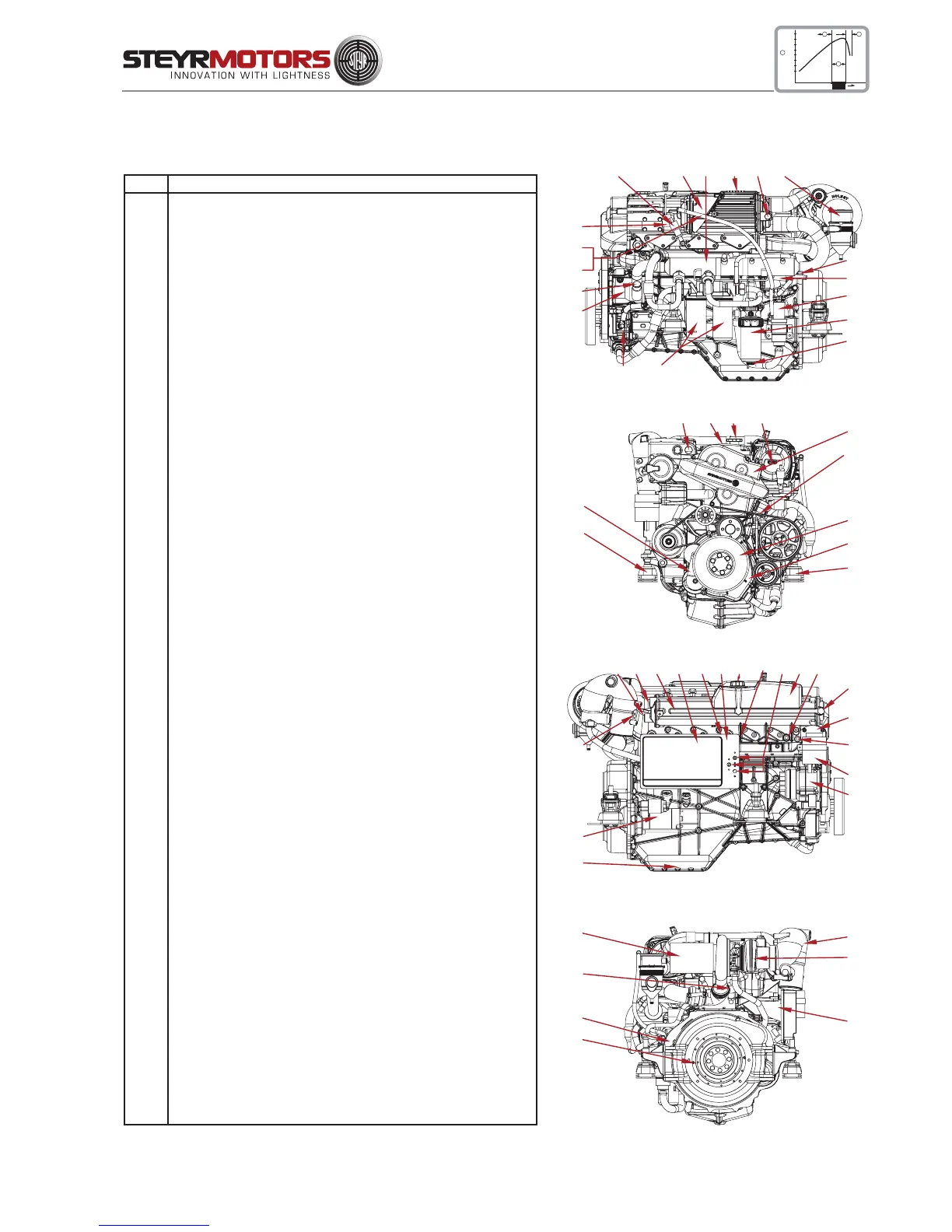

Overview STEYR MOTORS MO286H43, MO156K25, MO126K25
*) This sensor is magnetism sensitive. All external magnets must be kept away.
Item Designation
1 Boost Pressure Sensor
2 Zinc Anode
3 Intercooler
4 Fuel/Hydr. Oil Cooler
5 Model and Serial Number
6 Oil Seperator
7 Raw Water Drain Plug
8 Valve Crankshaft Housing Ventilation (only SOLAS)
9 Fuel Filter and water seperator
10 Fuel Pump
11 Oil Filter
12 Raw Water Inlet Fitting
13 Raw Water Pump
14 Coolant Drain Plug (2 Units)
15 Oil Suction Pipe
16 Oil Dipstick
17 Rack Position Sensor*)
18 Engine Lifting Eye
19 Motor Oil Filler Cap
20 Potentiometer Accelerator
21 Drive Belt, Raw Water Pump, Alternator, Hydr. Pump
22 Engine Mount
23 Drive Belt Tensioner
24 Cover T-Belt, Lower
25 Vibration Damper
26 Speed Sensor
27 Cover T-Belt, Upper
28 Valve Cover
29 Heat Exchanger
30 Coolant Expansion Tank
31 Cooler Cap
32 Diagnostic Outlet
33 Inversion Switch (only for SOLAS)
34 Connector Instrument Panel
35 Coolant Temperature Sensor
36 Thermostat Housing
37 Hydraulic Oil Tank
38 Circuit Breakers
39 Alternator
40 Hydraulic Pump
41 Oil Drain Plug
42 Starter Motor
43 Engine Management System/Fuses
44 Exhaust Temperature Sensor
45 Air Filter
46 Turbo Charger
47 Exhaust Elbow
48 Starter Relais (Backside E-Box Ground Plate)
49 Flywheel
50 Flywheel Housing
51 Oil Pressure Sensor
52 Water drain point
MO286H43
MO156K25
MO126K25
08014
17
16
15
12
13
15
7
4
9
32
41 11
6
8
53
10
08016
45
27232
37
33
14
38
2
3630 44 35
40
34
3139
43
42
08017
46
52
51
50
48
47
49
08015
21
28
25
24
22
23
22
192918 20
