STEYR MO256H45 User Manual

61
fullload
speedrange
100%
90%
80%
70%
60%
50%
40%
30%
B
C D
RPM
A
OUTPUT
POWER
*) This sensor is magnetism sensitive. All external magnets must be kept away.

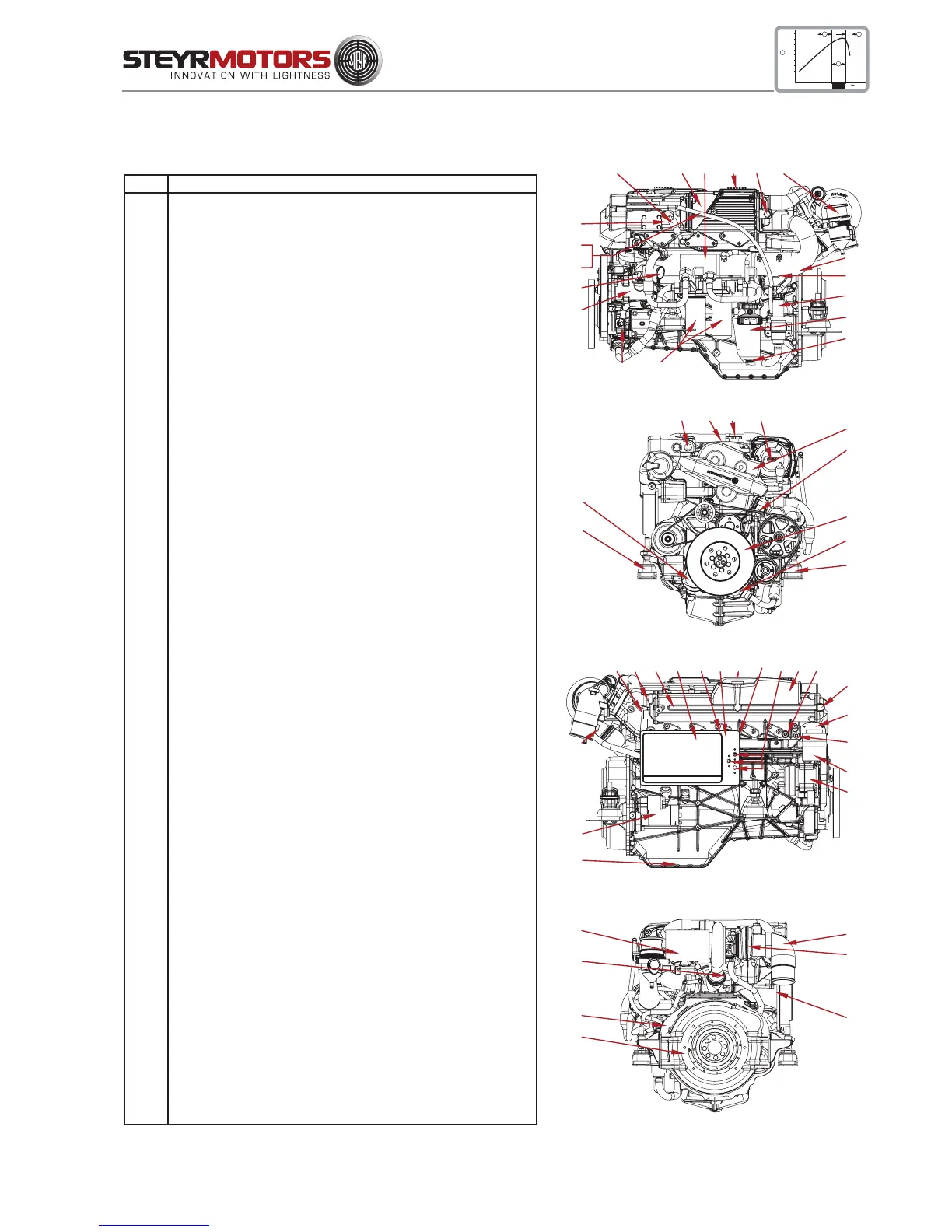

Overview STEYR MOTORS MO306H43WJ
MO306H43WJ
Item Designation
1 Boost Pressure Sensor
2 Zinc Anode
3 Intercooler
4 Fuel/Hydr. Oil Cooler
5 Model and Serial Number
6 Oil Seperator
7 Raw Water Drain Plug
8 Valve Crankshaft Housing Ventilation (only SOLAS)
9 Fuel Filter and water seperator
10 Fuel Pump
11 Oil Filter
12 Raw Water Inlet Fitting
13 Raw Water Pump
14 Coolant Drain Plug (2 Units)
15 Oil Suction Pipe
16 Oil Dipstick
17 Rack Position Sensor*)
18 Engine Lifting Eye
19 Motor Oil Filler Cap
20 Potentiometer Accelerator
21 Drive Belt, Raw Water Pump, Alternator, Hydr. Pump
22 Engine Mount
23 Drive Belt Tensioner
24 Cover T-Belt, Lower
25 Vibration Damper
27 Speed Sensor
28 Cover T-Belt, Upper
29 Valve Cover
30 Heat Exchanger
31 Coolant Expansion Tank
32 Cooler Cap
33 Diagnostic Outlet
34 Inversion Switch (only for SOLAS)
35 Connector Instrument Panel
36 Coolant Temperature Sensor
37 Thermostat Housing
38 Hydraulic Oil Tank
39 Circuit Breakers
40 Alternator
41 Hydraulic Pump
42 Oil Drain Plug
43 Starter Motor
44 Engine Management System/Fuses
45 Exhaust Temperature Sensor
46 Air Filter
47 Turbo Charger
48 Exhaust Elbow
49 Starter Relais (Backside E-Box Ground Plate)
50 Flywheel
51 Flywheel Housing
52 Oil Pressure Sensor
53 Water drain point
08018
17
16
15
12
13
154
9
32
41 11
6
53
7
8
10
08020
45
32
37
33
14
38
2
3630 44 35
40
34
3139
43
42
272
08021
46
52
51
50
48
47
49
08019
21
28
25
24
22
23
22
192918 20
