STEYR MO256H45 User Manual

84
R10/5 R10/1 R10/2 R10/3 R10/4 R10/6
6 CYL. 6 CYL. 4 CYL. 4 CYL.

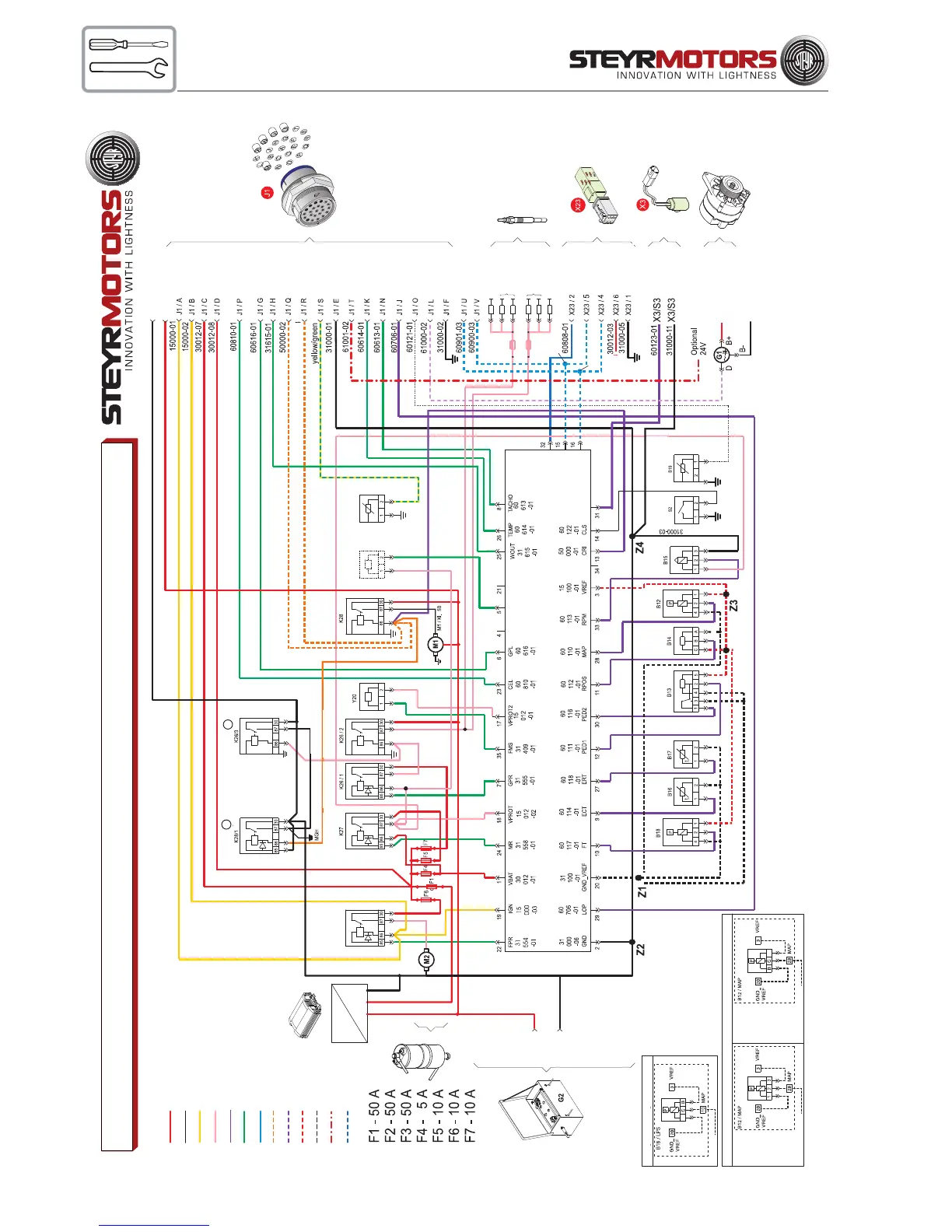

WIRING DIAGRAM / MARINE - 4/6 CYLINDER - 2-POLE - 24V COMPLETE SYSTEM
2179729_D-01-100222
www.steyr-motors.com
Z5
Z6
60900-02 60901-02
60808-01 ISO
60900-01 CAN-H
60901-01 CAN-L
60
123
-01
WS
Batt + Batt - Ign 15 Supplied by Relais Sens ECU Control ECU DIAG Start Charge D+ Sens 5V Sens - B+ 24V CAN
Wiring LPS / All engines before 2007
A
31100-10
15100-07
60117-01
EXCEPTIONS: ONLY FOR TYP: MO 164M40 MO 174V40 MO 246K41 MO 256H45 MO 256K43 MO 266K43
A
31100-08
15100-05
60110-01
Wiring MAP / All engines before 2007
31100-08
15100-05
60110-01
ALL ENGINE TYPES WITH FOLLOWING EXCEPTIONS
Engine oil pressure sender
Gearbox pressure sender
Starter
31024-01 30024-01
J1 / X J1 / W
Converter 12/24V
=
=
VTG
Y50
WIRING DIAGRAM/MARINE – 4/6 CYLINDER – 2-POLE – 24 V – COMPLETE SYSTEM
CONNECTOR “A5” (ENGINE-CONTROL-UNIT)
6 CYL. 6 CYL. 4 CYL. 4 CYL.
Solas
Invers
Batt +
(Cl. 30 about F4)
(Cl. 31) CAN “L” CAN “H”
To fuse F4
Batt –
yellow/green
Cmd
EXT
Ect
LPS
Rack
Map
Speed Gear
switch
Engine oil
pressure sender
Frei
Frei
Frei
Frei
EXCEPTIONS: ONLY FOR TYP:
Wiring LPS/All engines before 2007
ALL ENGINE TYPES WITH FOLLOWING EXCEPTIONS
Wiring MAP/All engines before 2007
Fuel
Batt +
pressure
sender
B22
STARTER
Aktor
Glow Ass.Main
K24 FUEL
Glow
-
Start -
Batt –
Batt + Batt – Ign 15 Supplied by Relais Sens ECU Control ECU DIAG Start Charge D+ Sens 5 V Sens – B+ 24 V CAN
Glow
Converter 12/24 V
VTG
Gearbox
Start Ass.
