- Fix the positioner on the support [# 1] the four screws [# 6+7]
- Connect the upper lever to the positioner shaft and the lower [# 2]
to the motion converter shaft.
- For motion converter adjustment please see Instruction manual
2051
- Adjust the rotate angle of the feedback lever so that it complies to
the requirement in 4.2.1.and fix tight the screw [#13]
- Move the actuator shaft from 0% of the stroke to 100% checking
that there is not mechanical interference of the linkage
components.

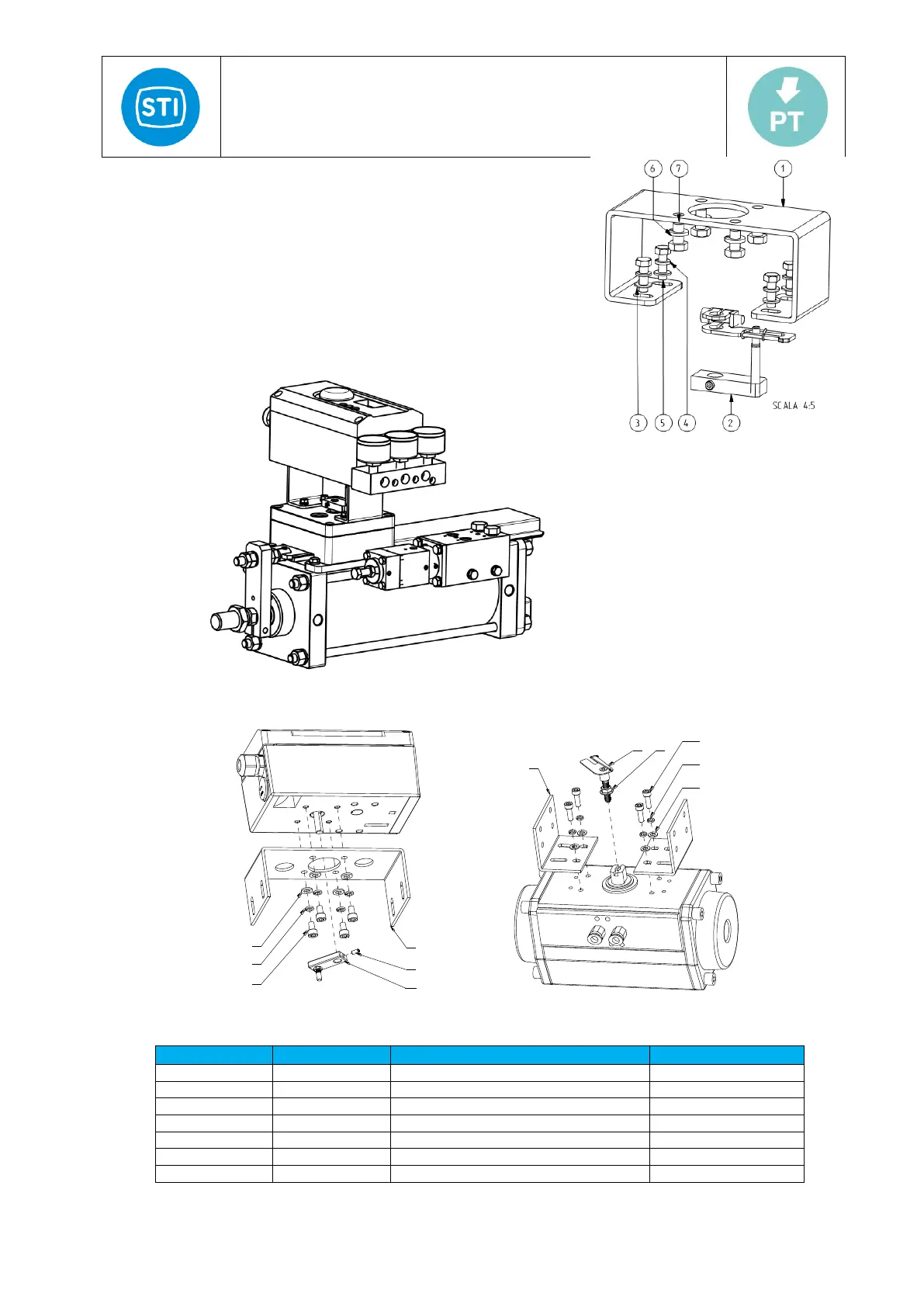

Figure 4-b
4.4 Assembly for rotary actuator
31 2
7
98
10
11
12
2
1
3
4
6
5
31 2
7
98
10
11
12
2
1
3
4
6
5
Figure 5-a
No.
Amount
Name
Spec.
1
8
Washer
D6
2
8
Elastic washer
D6
3
8
socket cap screw
M6×12
4
1
set screw
M5×5
5
1
Feedback lever
6
1
Bracket 2
7
2
Bracket 1
