ENGLISH
  103



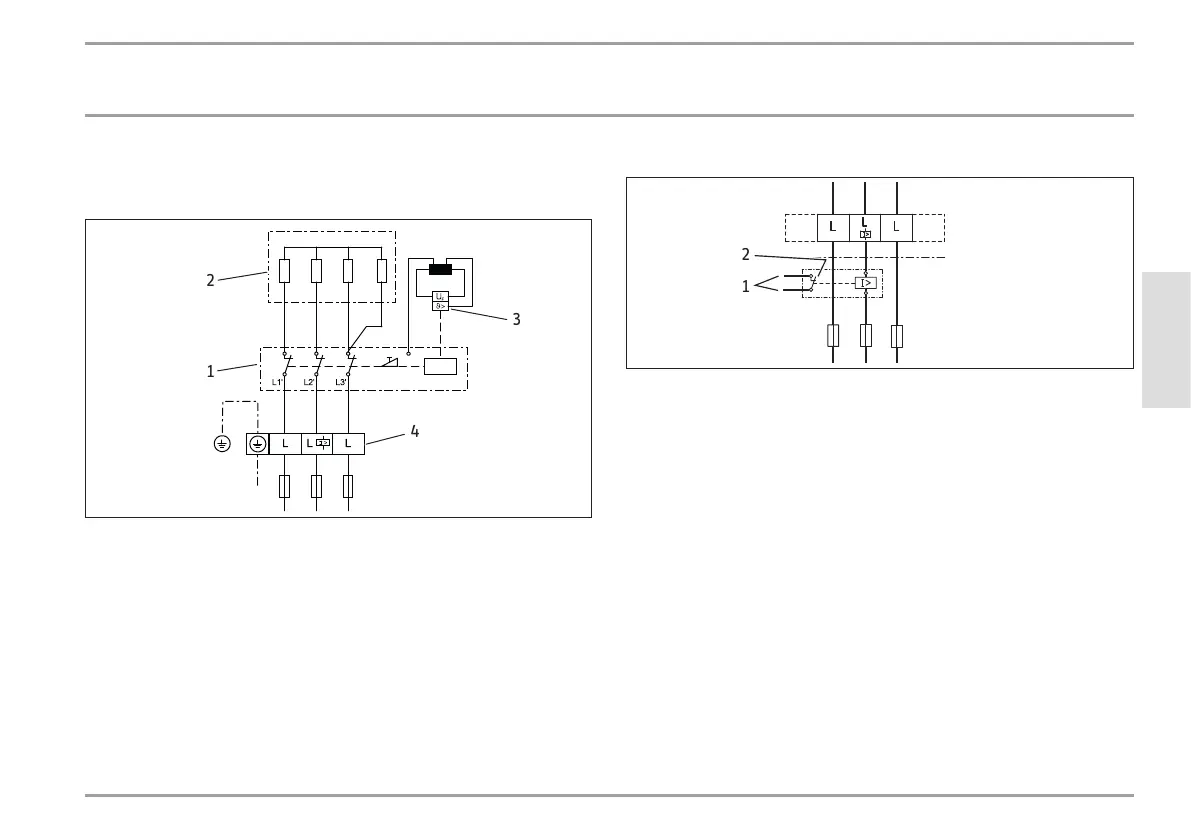

17.2 Wiring diagram
3/PE ~ 380-415 V
D0000053424
1
3
4
2
1 Power PCB with integral safety switch
2 Bare wire heating system
3 High limit safety cut-out
4 Mains terminal
Priority control with LR 1-A
85_02_02_0003_
2
1
1 Control cable to the contactor of the second appliance (elec-
tric storage heater, for example)
2 Control contact drops out when switching the instantaneous
water heater on.

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the STIEBEL ELTRON DHE Connect 18/21/24 and is the answer not in the manual?

STIEBEL ELTRON DHE Connect 18/21/24 Specifications

General IconGeneral
Power Output18/21/24 kW
Voltage400 V
Frequency50/60 Hz
ControlElectronic
Protection ClassIP25
Rated Current26/30/35 A
Energy Efficiency ClassA
Connection TypeFixed Connection
TypeInstantaneous Water Heater
ConnectivityWiFi
Temperature Range20°C to 60°C
