84  

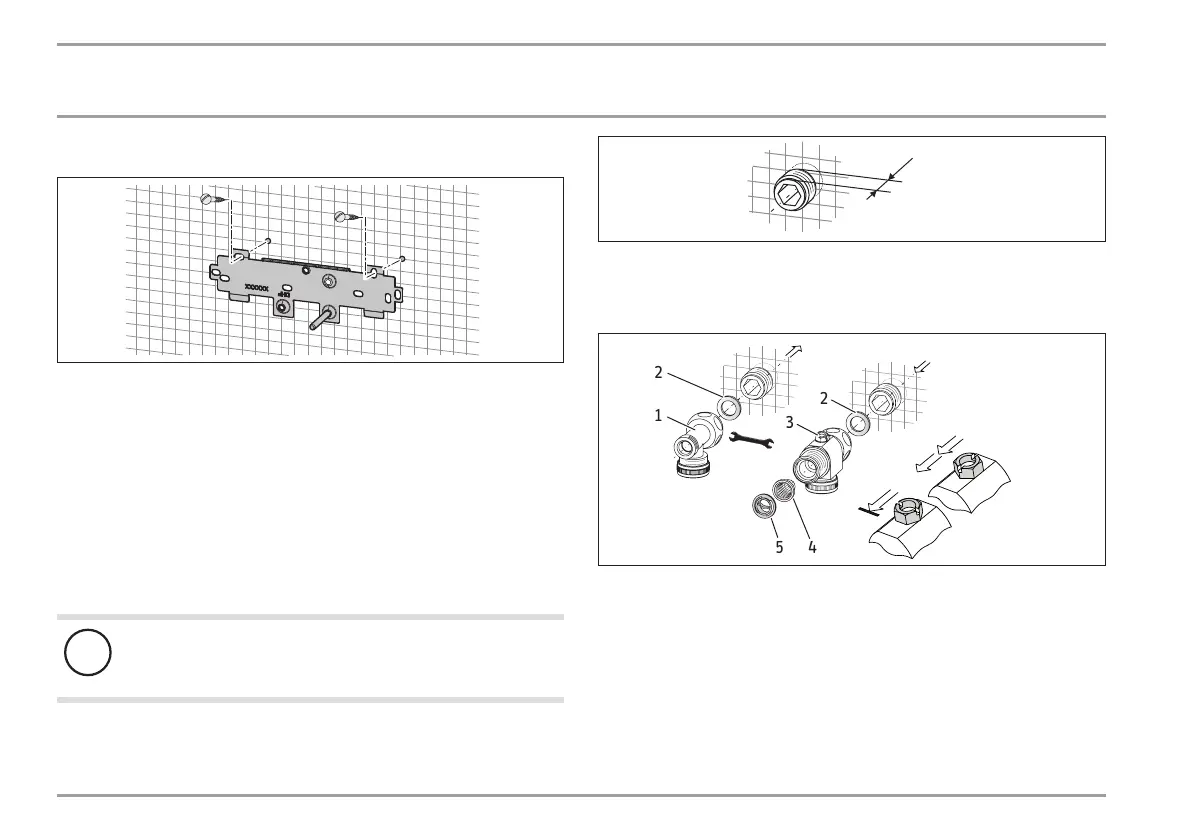

Fitting the wall mounting bracket
D0000059694
 Mark out the holes for drilling using the installation tem-
plate. If the appliance is to be installed with water connec-
tions on finished walls, also mark out the fixing hole in the
lower section of the template.
 Drill the holes and secure the wall mounting bracket at 2
points using suitable fixing materials (screws and rawl plugs
are not part of the standard delivery).
 Fit the wall mounting bracket.
Installing the twin connector
!
Material losses
Carry out all water connection and installation work in
accordance with regulations.
12
D0000053319
 Seal and insert the twin connectors.
Making the water connection
5 Nm
24
D0000059695
1
4
5
2
3
2
1 DHW with tee
2 Gasket
3 Cold water with 3-way ball shut-off valve
4 Strainer
5 Plastic profile washer
 Secure the tee and 3-way ball shut-off valve, each with a flat
gasket, to the twin connector.

STIEBEL ELTRON DHE Connect 18/21/24 Specifications

General

Power Output	18/21/24 kW
Voltage	400 V
Frequency	50/60 Hz
Control	Electronic
Protection Class	IP25
Rated Current	26/30/35 A
Energy Efficiency Class	A
Connection Type	Fixed Connection
Type	Instantaneous Water Heater
Connectivity	WiFi
Temperature Range	20°C to 60°C
