Material losses
The strainer must be fitted for the appliance to function.
When replacing an appliance, check whether the
strainer is installed.
Installing the appliance
Note
If you are installing the appliance with flexible water
connections, also secure the back panel with a screw.
D0000053291
1
2

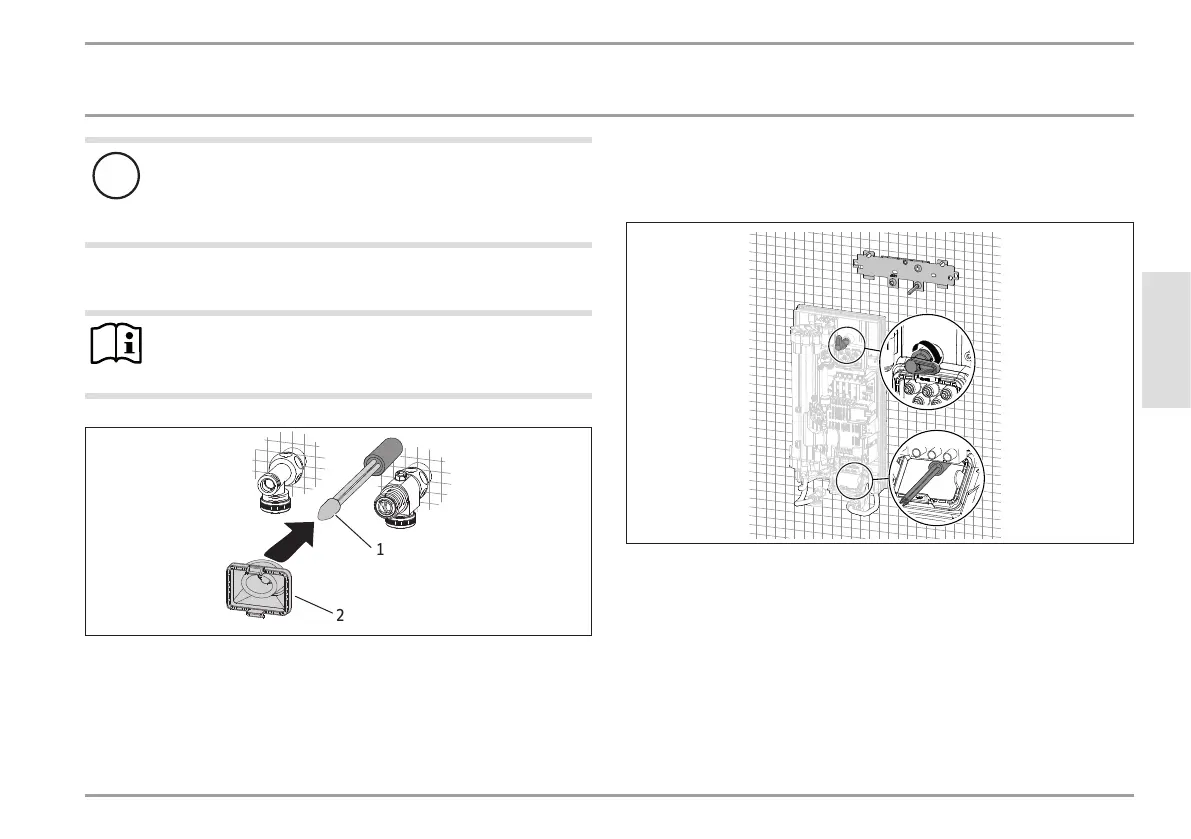

1 Cable entry installation aid
2 Cable grommet
Use the installation aid for easier wiring access through the cable
grommet (see plastic parts set supplied).
Remove the cable grommet from the back panel.
Pull the cable grommet over the cable sheath of the power
cable. For large cable cross-sections, enlarge the hole in the
cable grommet if necessary.
D0000053274
Remove the transport protection plugs from the water
connections.
Bend the mains connection cable 45° upwards.
Route the mains connection cable and cable grommet
through the back panel from the rear.
Install the appliance on the threaded studs of the wall
mounting bracket.
Push the back panel firmly against the wall. Lock the fixing
toggle by turning it 90° clockwise.
