INSTALLATION
Installation
D0000041723
Screw the pre-assembled parts with flat gaskets to the cold
water and DHW pipes of the appliance.
Fit the cold water inlet pipe and the DHW outlet pipe from
the pipework with flat gaskets to the extensions from the
appliance.

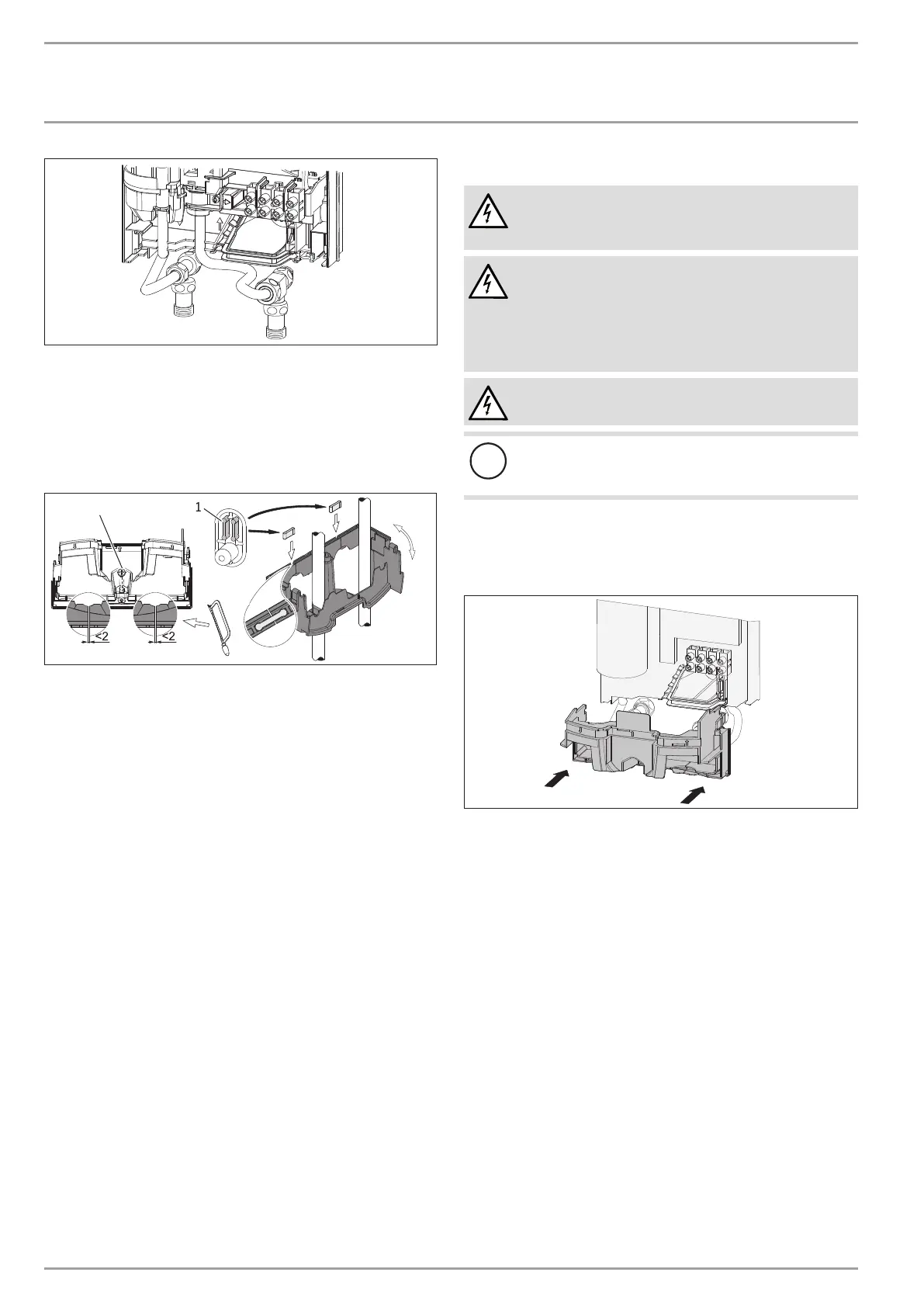

Lower back panel installation
1
2
26�02�02�1080
1 Connection pieces delivered in the pack
2 Screw
Cut open the lower back panel (see illustration).
Fit the lower back panel by bending it out at the sides and
guiding it over the pipes.
Insert the connection pieces into the lower back panel from
behind.
Click the lower back panel into place.
Align the mounted appliance by loosening the fixing toggle,
aligning the power supply and back panel, and then re-tight-
ening the fixing toggle.
Secure the lower back panel with a screw.
Making the electrical connection
WARNING Electrocution
Carry out all electrical connection and installation work
in accordance with relevant regulations.
WARNING Electrocution
The connection to the power supply must be in the form
of a permanent connection in conjunction with the re-
movable cable grommet. Ensure the appliance can be
separated from the power supply by an isolator that dis-
connects all poles with at least 3 mm contact separation.
WARNING Electrocution
Ensure that the appliance is earthed.
!
Material losses
Observe the type plate. The specified voltage must match
the mains voltage.
Connect the power cable to the mains terminal (see chapter
"Installation/ Specification/ Wiring diagrams").
Fitting the lower back panel
26�02�02�1102�
Fit the lower back panel into the back panel. Click the lower
back panel into place.
Align the mounted appliance by loosening the fixing toggle,
aligning the power supply and back panel, and then re-tight-
ening the fixing toggle. If the back panel of the appliance is
not flush, the appliance can be secured at the bottom with an
additional screw.
