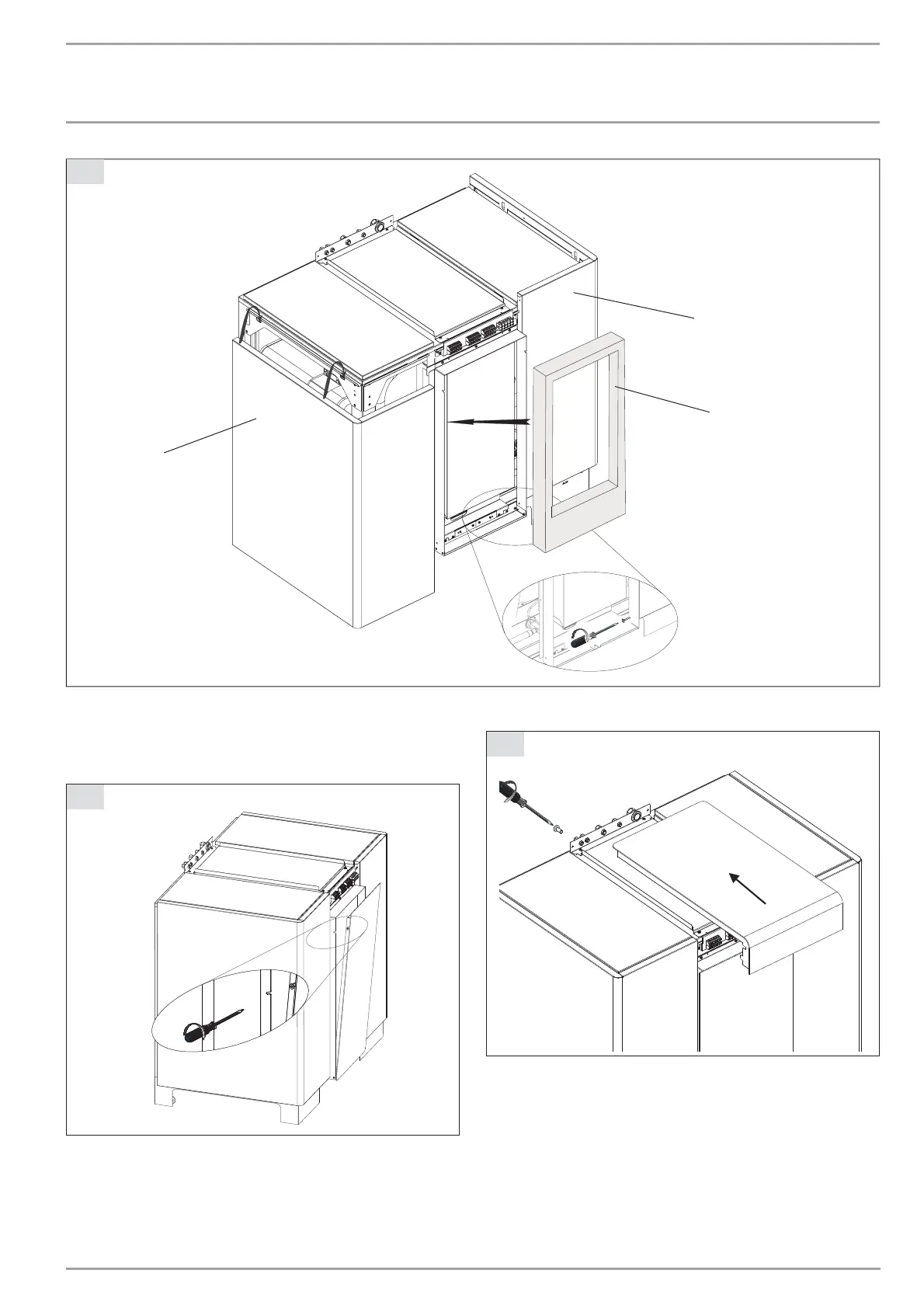

Fitting the side panels
C26_03_01_0793
1
2
»
Hook the side panels 1 from the top into the slots and hooks
provided and secure with one screw each at the bottom of the
control panel frame.
»Install sound insulation 2 in the control panel frame
K
Fit front panel
C26_03_01_0795
»Hook the bottom of the front panel into the control panel frame,
pivot it towards the frame and secure with one screw on each
side.
L
Fit centre cover
C26_03_01_0794
»Position the cover at the front of the device and push it back;
then secure it with two screws.
»Make the power supply before the centre cover and front panel
are fitted.
»
8.6 Removing the casing parts
The casing parts are removed in reverse order.
