12.4 Output diagrams
S

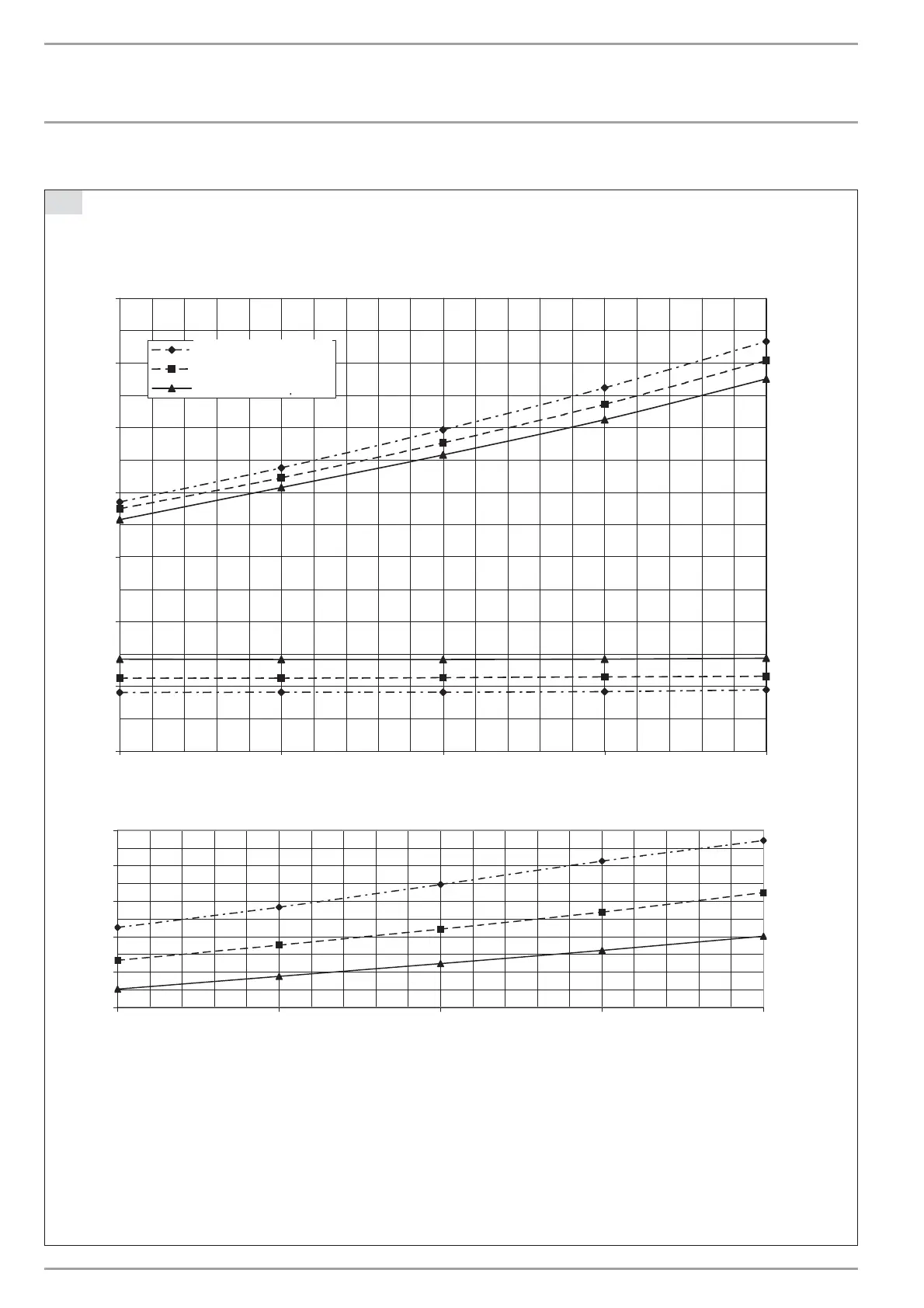

Output diagram WPF 20
C26_03_01_0855
Heat source temperature [°C]
0
5
10
15
20
25
30
35
-5 0 5 10 15
35°C Vorlauftemperatur
45°C Vorlauftemperatur
55°C Vorlauftemperatur
Power consumption Heat output
[kW]
Ethylene glycol/water mixture with 33 Vol. by % ethylene glycol
2
3
4
5
6
7
-5 0 5 10 15
Coefficient of Performance
Heat source temperature [°C]
C26_03_01_0856
www.stiebel-eltron.com WPF 20/27/40/52/66 | 24
INSTALLATION
SPECIFICATION
35°C flow temperature
45°C flow temperature
55°C flow temperature
