1 Strain relief
2 Terminal area

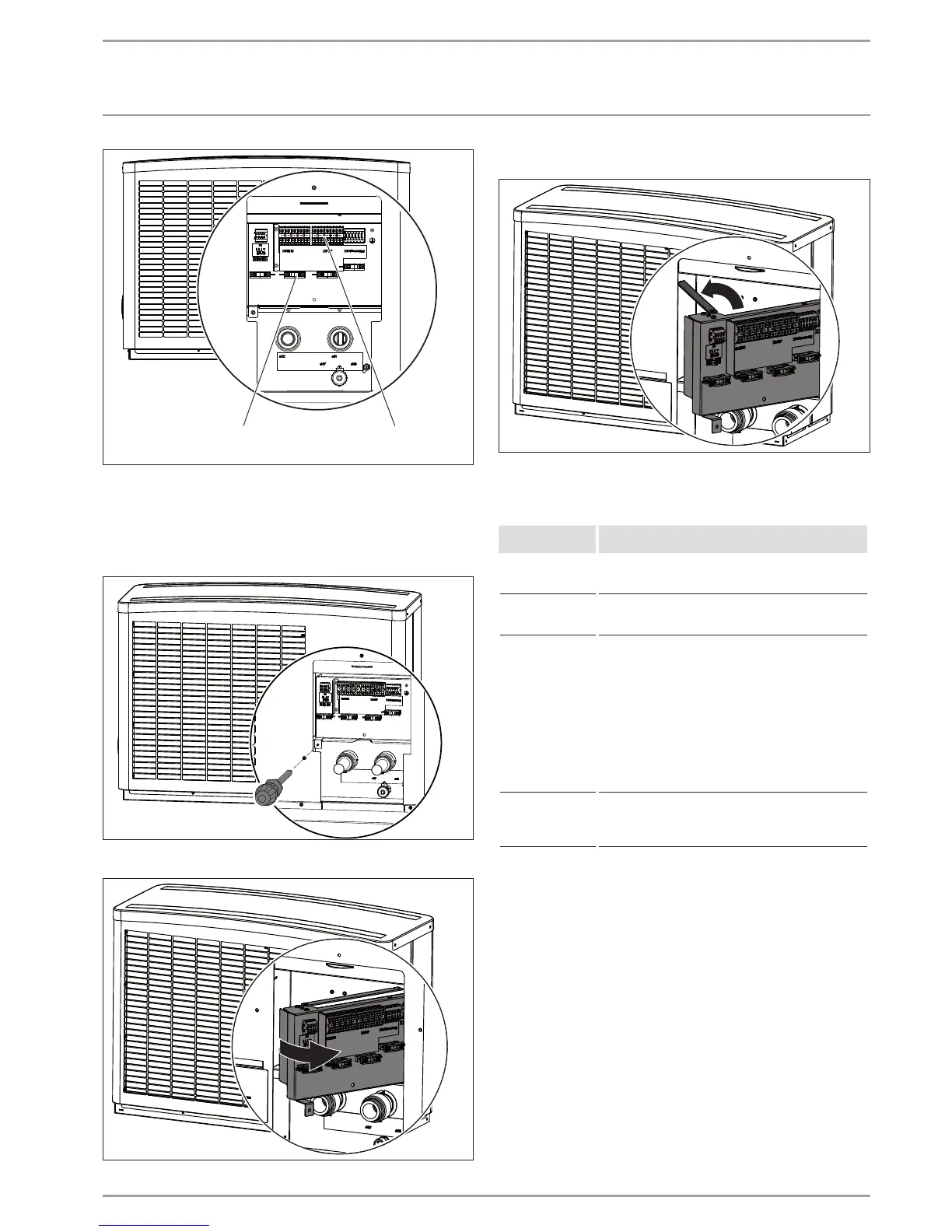

Route cables and leads through the strain relief fittings.
If space behind the appliance is limited, the terminal area can be
folded out.
D0000035380
Undo the screw on the terminal area.
D0000035382
Pivot the terminal area to the side.
D0000075146
Fix the terminal area in place with the locking mechanism.
Connect the electric emergency/booster heater if you want to
utilise the following appliance functions:
-
tion
Mono energetic op-
eration
If the dual mode point is undershot, the electric emer-
gency/booster heater safeguards both the heating oper-
ation and the provision of high DHW temperatures.
Emergency mode
If the heat pump shuts down due to a fault, the heating
output is covered by the electric emergency/booster
heater.
Heat-up program
(only for underfloor
heating systems)
Where return temperatures are <25°C, the electric
emergency/booster heater must provide the necessary
heat for screed drying.
With such low system temperatures, the heat for screed
drying must not be provided by the heat pump, other-
wise the frost protection of the appliance can no longer
be guaranteed during the defrost cycle.
When the heat-up program has ended, the electric
emergency/booster heater can be disconnected if it is
not required for appliance operation.
Please note that during the heat-up program, emergency
mode is not available.
Pasteurisation
mode
The electric emergency/booster heater starts automat-
ically when pasteurisation mode is active. The DHW is
then regularly heated to 60°C to protect it against the
growth of legionella bacteria.
