Detail C
Note: Indentations
in table top are small
so look closely.
5
HARDWARE NEEDED
#8 X 9/16 Screw
(Qty. 28)
IF USING AN ELECTRIC SCREWDRIVER PLEASE SET AT LOW TORQUE
AND USE CAUTION BECAUSE YOU COULD OVER-TIGHTEN THE
HARDWARE AND STRIP SCREW IN WOOD DOING IRREPARABLE
DAMAGE TO THE TABLE. DO NOT OVER TIGHTEN SCREWS!
NOTICE

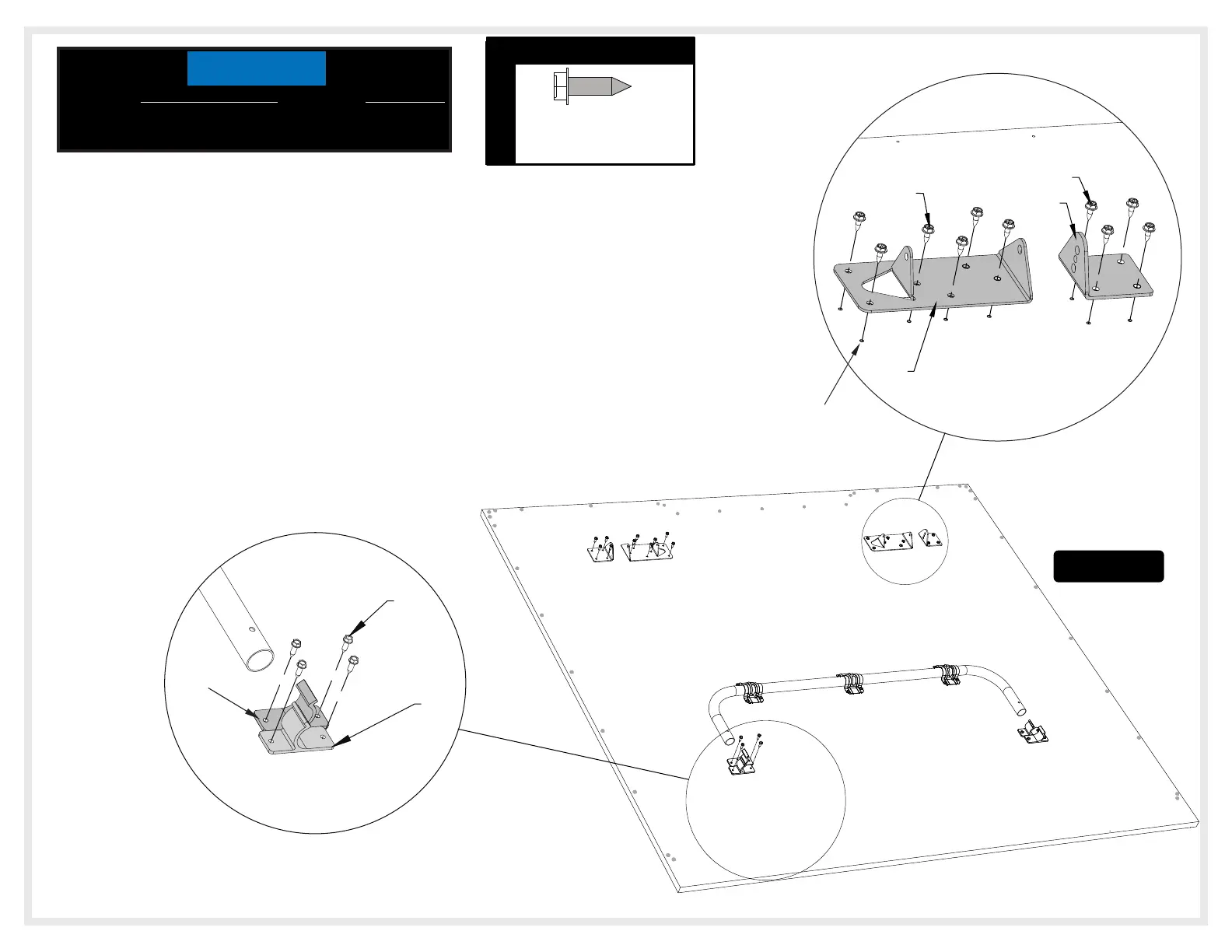

10. Assemble parts to the bottom of the table top with Screws (#5) as shown in Figure 7,
Detail C and Detail D.
a) Align the holes in the Mounting Brackets (#25) & (#20) with Indentations in table
top assembly and secure with screws (#5) as shown. All holes in each Mounting
Bracket must align with Indentations in the top. See Figure 7 and Detail C.
b) Align the holes in the two U-Support Clips (#6) with Indentations in table top. Be
sure that the two U-Support Clips (#6) are positioned exactly as shown in Figure 7 &
Detail D.
6
5
Detail D
6
7
Figure
10
To Next Page
