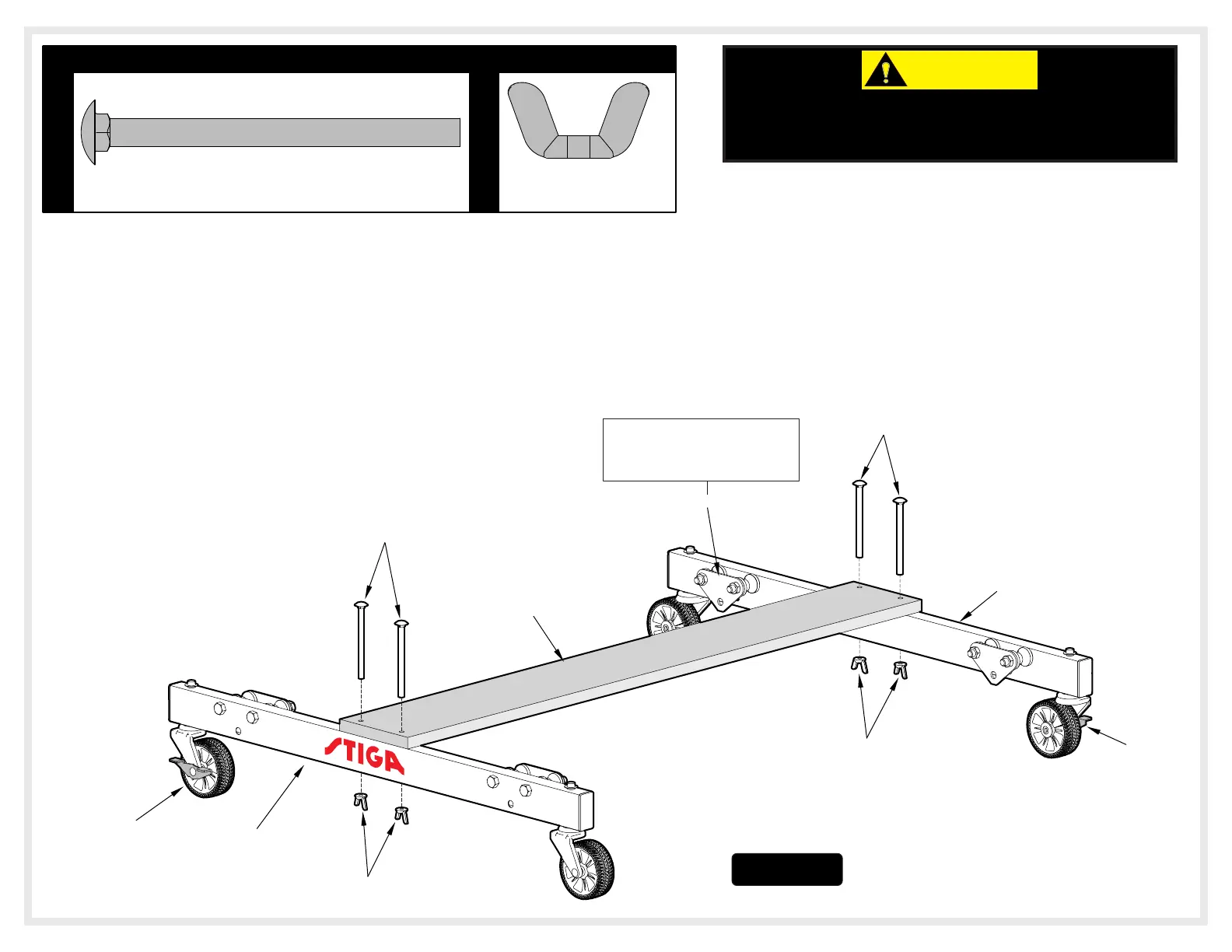

3. Attach Wood Bottom Board (#15) to Caster Beam Assemblies (#8)
as shown in Figure 3. Turn Caster Beams as shown and attach
board with four Carriage Bolts (#31) and four Wing Nuts (#32).
Tighten Wing Nuts securely.
32
31
(Qty. 4)
1/4-20 Wing Nut
8
Caster
with
Lock
HARDWARE NEEDED
1/4-20 X 3 1/4 Carriage Bolt
(Qty. 4)
NOTE: Make sure logos are right side up and
facing the outside as shown.
3
Figure
6
32
31
15
31
32
Caster
with
Lock
8
43
Note: Support Plate (#43)
is on the inside of Caster
Rail (#8) as shown.
READ AND FOLLOW ALL ASSEMBLY, OPERATING, AND
SAFETY INSTRUCTIONS CAREFULLY. AT LEAST TWO (2)
ADULTS ARE NEEDED TO PUT THIS TABLE TOGETHER!
CAUTION:
To Next Page
