DO NOT OPEN THE TABLE TO PLAYING POSITION
UNTIL BOTH TOPS ARE INSTALLED! DO NOT LEAVE
TABLE STANDING UNATTENDED. IT COULD BE
KNOCKED OVER CAUSING SERIOUS BODILY INJURY
OR PROPERTY DAMAGE.
TUBES UP
Table Top
Assembly
21
U-Support
17
Strut Tube
8
8
With at least 2 adults,
slide Table Top Assembly
onto Strut Tubes (#17).
17
Strut Tube
PIVOT STRUT
COMPLETE THE REST OF THIS ASSEMBLY! WHEN
ASSEMBLING TOPS TO BASE, HANDLE TOP
ASSEMBLIES BY GRASPING ONLY THE TOPS
THEMSELVES. DO NOT GRASP METAL LEGS, U-
SUPPORT, LINKAGE, OR HINGES. THESE PARTS
CAN MOVE AND COULD PINCH FINGERS OR
HANDS CAUSING SERIOUS INJURY! ASSEMBLE
AS SHOWN WITH LEGS FULLY CLOSED AND
TOPS IN A VERTICAL POSITION. DO NOT OPEN
Y T
O ASSEMBLE. TABLE TOPS ARE
LEGS AND TR
HEAVY -
ALONE!
DO NOT ATTEMPT TO ASSEMBLE
HEAVY -
AT LEAST TWO (2) ADULTS ARE NEEDED TO
16
13
Figure

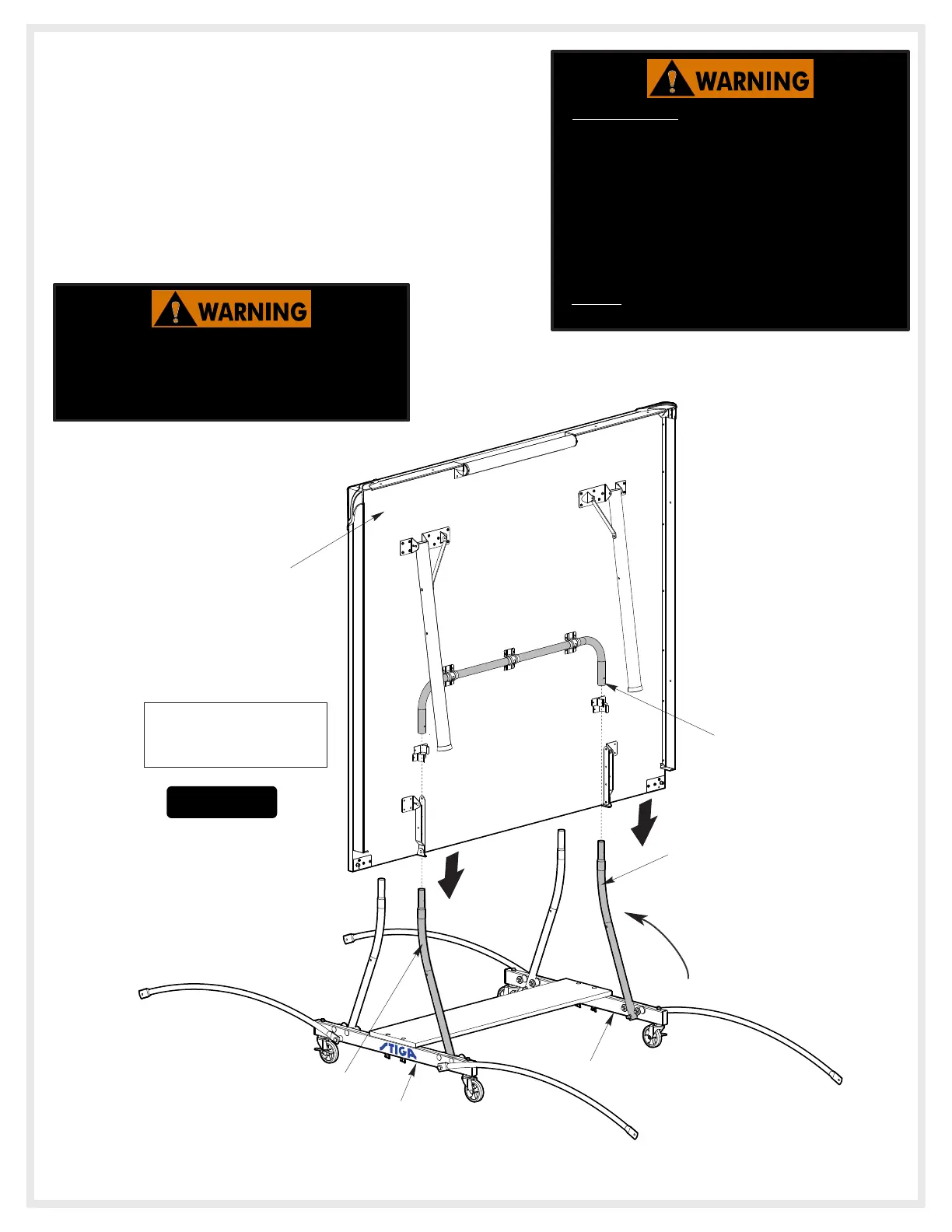

20. Attach Table Top Assembly to Base Assembly as shown in
Figure 13. Pivot Strut Tubes (#17) up as shown; then, with
at least one adult on each side of Table Top, lift top and
align ends of U-support tube (#21) with tops of Strut Tubes
(#17) as shown in Figure 13. Lower the table in a
controlled manner and as even as possible so the Strut Tube
goes in the U-Support evenly. Carefully slide tubes together.
