Page #15 background imageLoading...
Page #15 background image

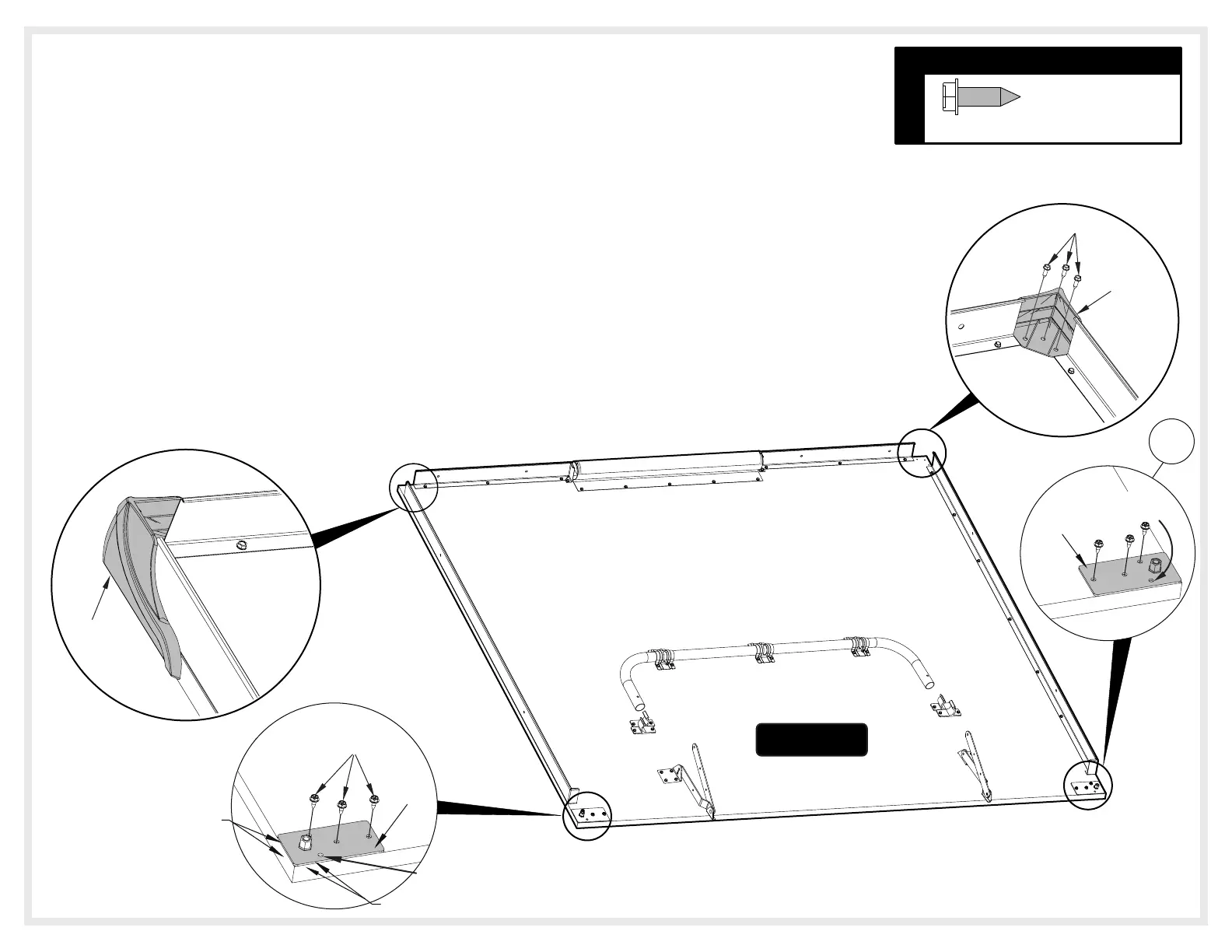

Detail J
5
40
40
5
HARDWARE NEEDED
#8 X 9/16 Screw
(Qty. 12)
17. Attach Corner Protectors to Table Top using Screw (#5) as shown in Detail J & K.
NOTE: Prepare an area for the assembly of the second table top half. If necessary, move the first table
top half aside with the aid of a helper. Be sure to place it in a location where it won't be disturbed or
damaged. If setting on its side, be sure to place the bottom edge no less than 12 inches away from the
wall. Also be sure to place carpet or pieces of the shipping carton down to protect table top edges. If
floor is not carpeted, brace table top half with a heavy object to keep it from sliding.
19. Repeat steps 5-17 to complete second Table Top Assembly.
12
Figure
*NO
TE: Legs not
shown for clarity
.
15
Detail K
NOTE: There are no Indentations guides for the nut plates (#45) on the table top.
18. Attach Net Plate (#45) as shown in Detail L & Detail M. Make sure the Nut
Plate is flush with the corner of the table and make sure to use the top three
holes in the nut plates. Note: Nut Plates Mount to one Table Top Only.
5
45
Detail L
Flush
Flush
No screw in
this hole
45
Detail M
No screw in
this hole
