22
35
1
If you want to see a video on how to insert Screw (#35) go to:
http://www.escaladesports.com/customer-service/instruction-videos
Or
Scan with your smartphone:

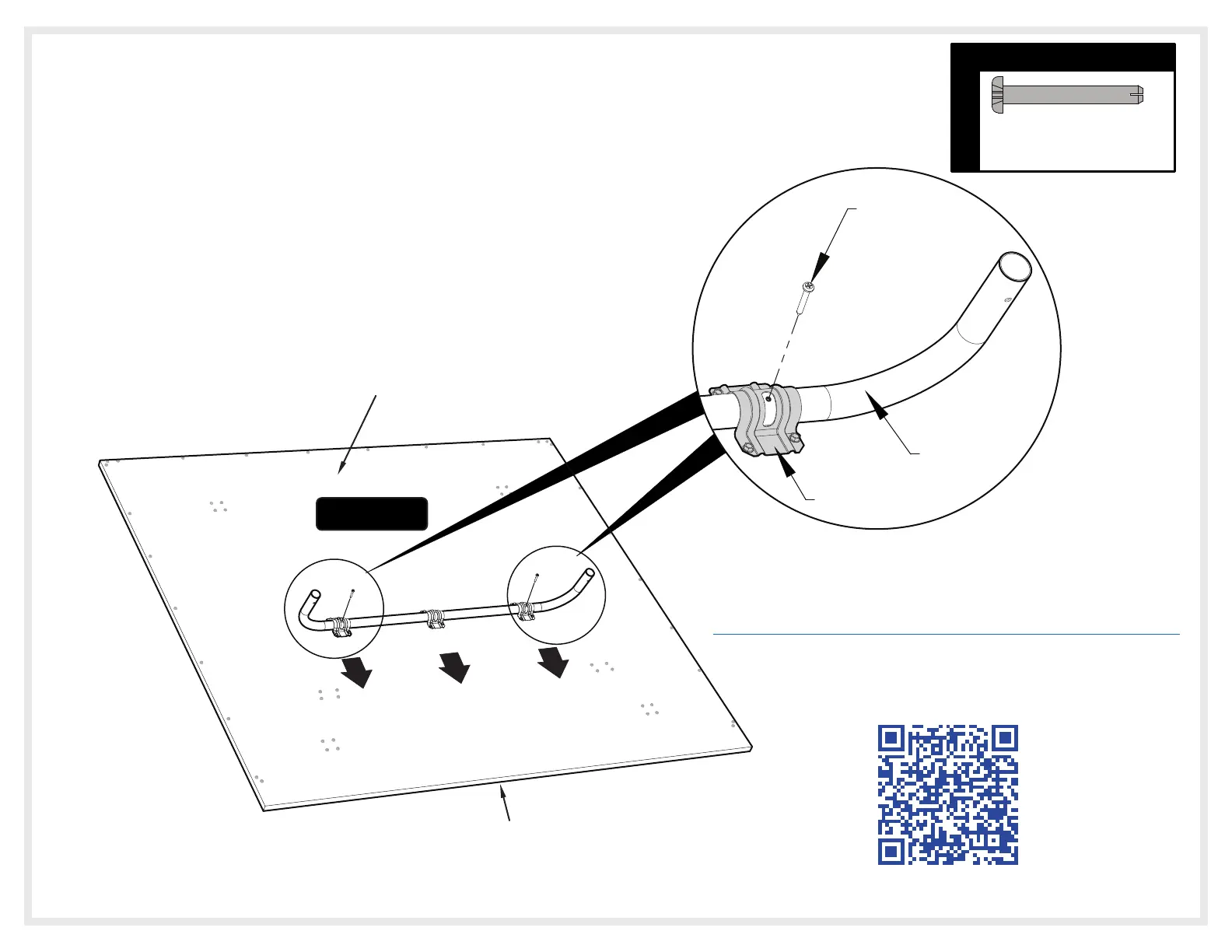

8. Rotate U-support (#21) that is on bottom of Table Top until you see the
screw holes in the slots of U-clips (#22). If necessary Slide U-support (#21)
side to side and back and forth to see holes. See Figure 6 & Detail B.
9. Insert Screw (#35) through slot in U-clip (#22) and into U-support (#21).
See Figure 6 & Detail B. Thread screw all the way into U-support until it
touches the back of the tube. There should be about 3/8” of screw (#35)
left sticking out. Repeat for second Screw (#35) and U Clip (#22).
Note: To aid in assembly use a cordless drill but DO
NOT over tighten screws. Wear safety glasses.
35
HARDWARE NEEDED
#8-32 X 1 1/4
Sheet Metal Screw
(Qty. 2)
Detail B
Note: This end has NO stripe
and NO indentations.
6
Figure
9
21
To Next Page
