STIHL 020 T 56

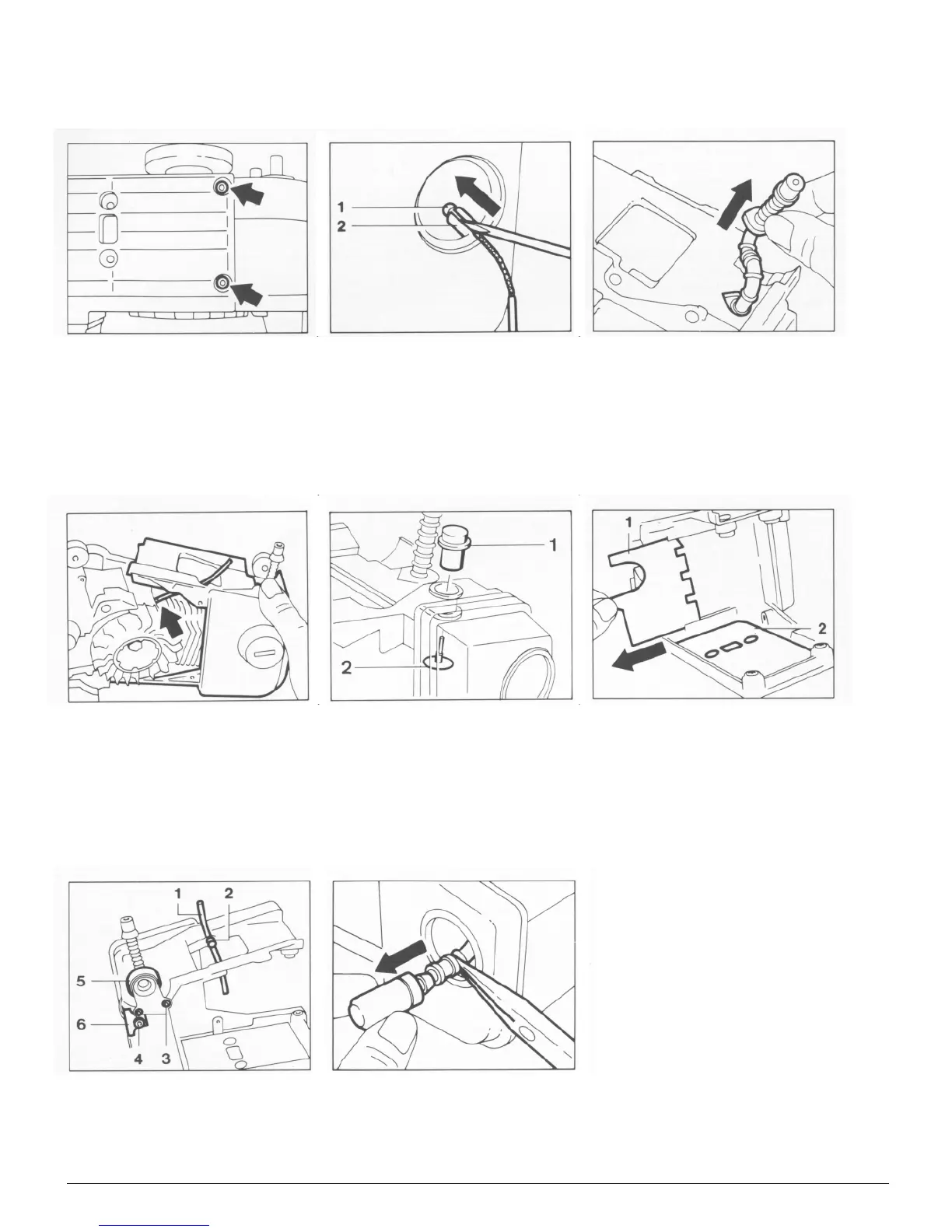

• Remove screws from underside
of tank housing.
• Unscrew filler cap and push cord
(1) out of groove (2).
• Pry the flange of the fuel hose
out of the tank and lift it away.
• Pull tank housing slightly
forwards, disconnect impulse
hose from nipple and then
remove tank housing.
• Remove filter element (1) and
valve (2) of tank vent.
• Take out the insulating plate (1).
Reassemble and install in the
reverse sequence.
Note: Bond a new heat reflecting
foil (2) in the new tank housing.
• Pull the pickup body off the fuel
hose.
• Pull out the impusle hose (1)
and grommet (2). Take out screws
(3 and 4). Remove annular buffer
(5) and retainer (6).
