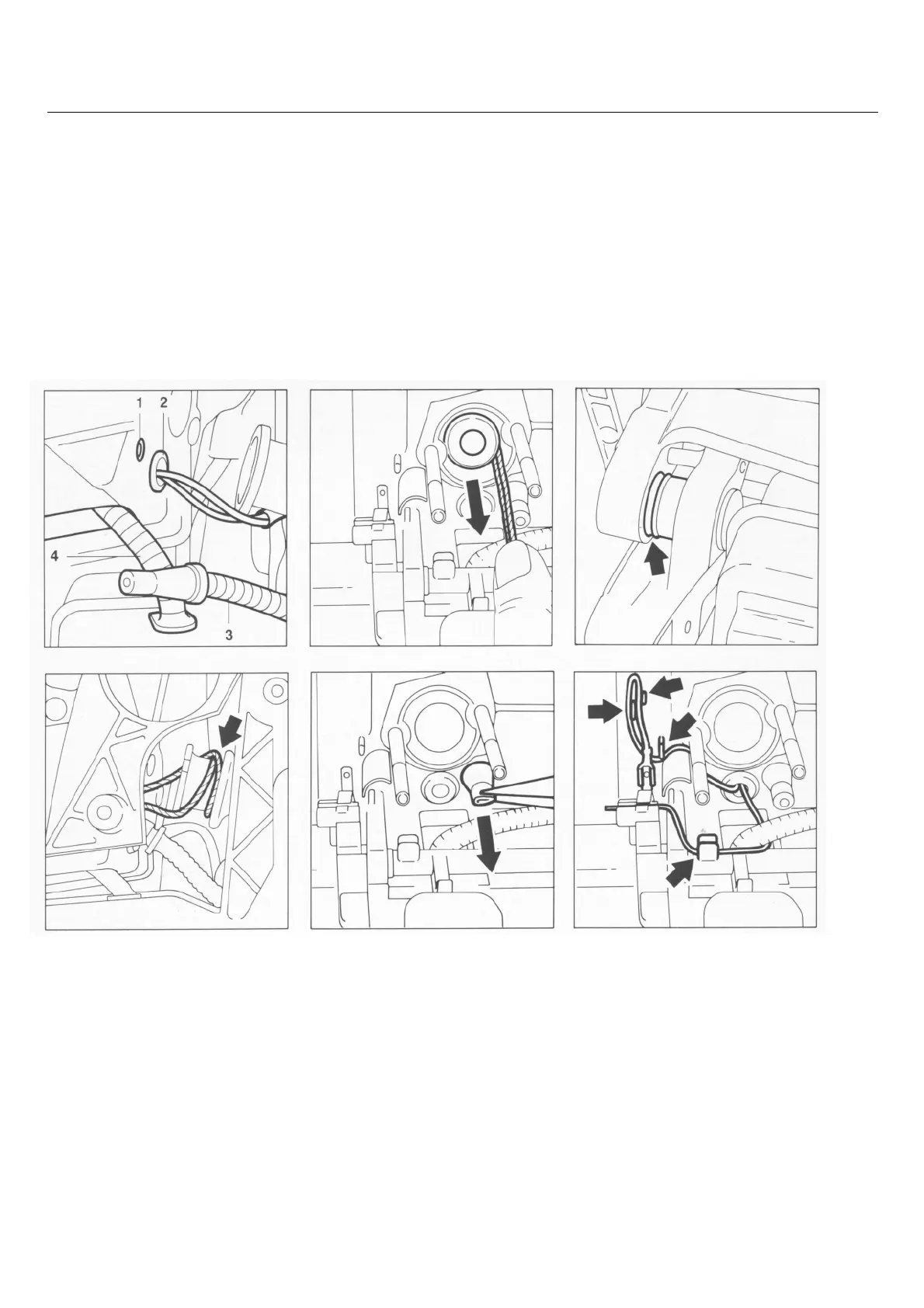

Top:
1 = Bore for impulse hose
2 = Grommet for ground and short circuit
wires
3 = Impulse hose
4 = Fuel hose
Bottom:
String around manifold
Top:
Pulling manifold into handle
housing intake opening
Bottom:
Pulling impulse hose into position
Top:
Annular groove
Bottom:
Correct position of ground and short circuit
wires
- Wind a piece of string (about 15
cm / 6" long) around the back of
the manifold flange and pass the
ends through the intake opening.
- Press the intake opening of the
handle housing against the mani-
fold and pull the ends of the string
outward at the same time. The
manifold flange is pulled through
the handle housing intake opening
without being damaged.
Note: Pay special attention to the
following points.
- Place the handle housing in posi-
tion and thread the ground and short
circuit wires through the bore. Fit the
grommet in the bore.
- Position impulse hose in bore and
pass the fuel hose through the
lower slot.
- Pull the impulse hose outward is
until its bead is in front of the
housing.
- Push the annular buffer into the
engine housing until its groove
engages the housing rib.
- Position the ground and short
circuit wires correctly in the
handle housing (see illustration)
and push them into their retainers.
