STIHL 029, 039 75
Checking installed positions of
levers:
- In the idle position the choke
shutter must be closed and the
throttle shutter at an angle of 37
degrees to the carburetor moun-
ting face.
- Open the choke shutter by slowly
turning the right-hand end of the
choke shaft. The throttle shutter
must jump to the closed position
just before the choke shutter is fully
open. This is accompanied by a
definite clicking sound.
Important: The choke shutter must be
held open for the next two operations.
- Fit lever "H" on the throttle shaft
and rotate it counterclockwise
against the pin on lever "A".
- Press lever "H" on to the throttle
shaft.
- Turn the idle speed screw "LA"
counterclockwise until the throttle
shaft is clear of the taper on the
idle speed screw.
- Open the choke shutter "I" and hold
it steady in that position.
- Swing lever "A" counterclockwise
as far as stop.

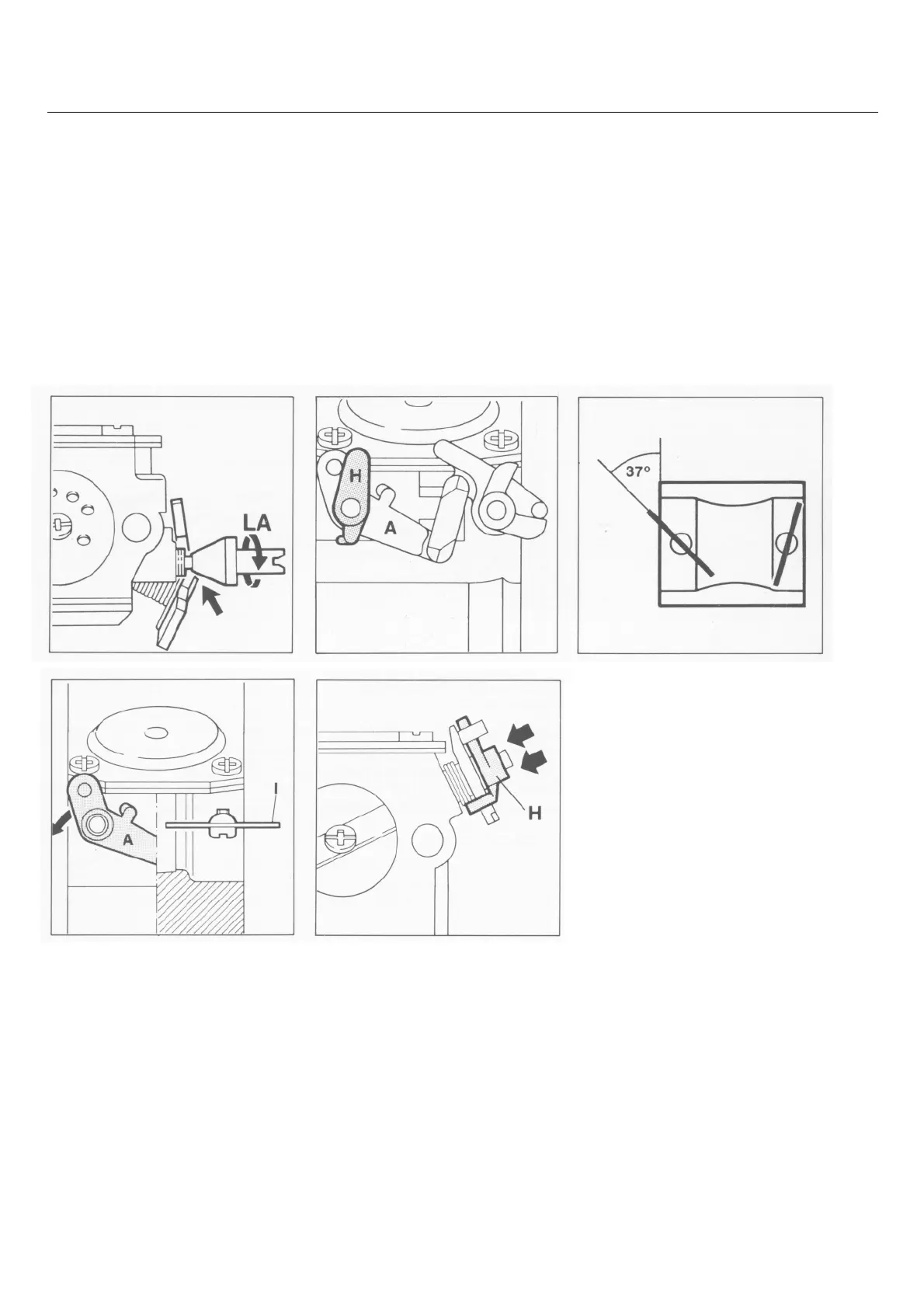

Correct positions of choke
and throttle shutters
Top:
Fitting lever "H"
Bottom:
Pressing lever "H" into position
Top:
Backing off the
idle speed adjusting screw
Bottom:
Turning lever "A" and
opening choke shutter
