Stihl 036 QS - Replacing Starter Rope and Rewind Spring

•

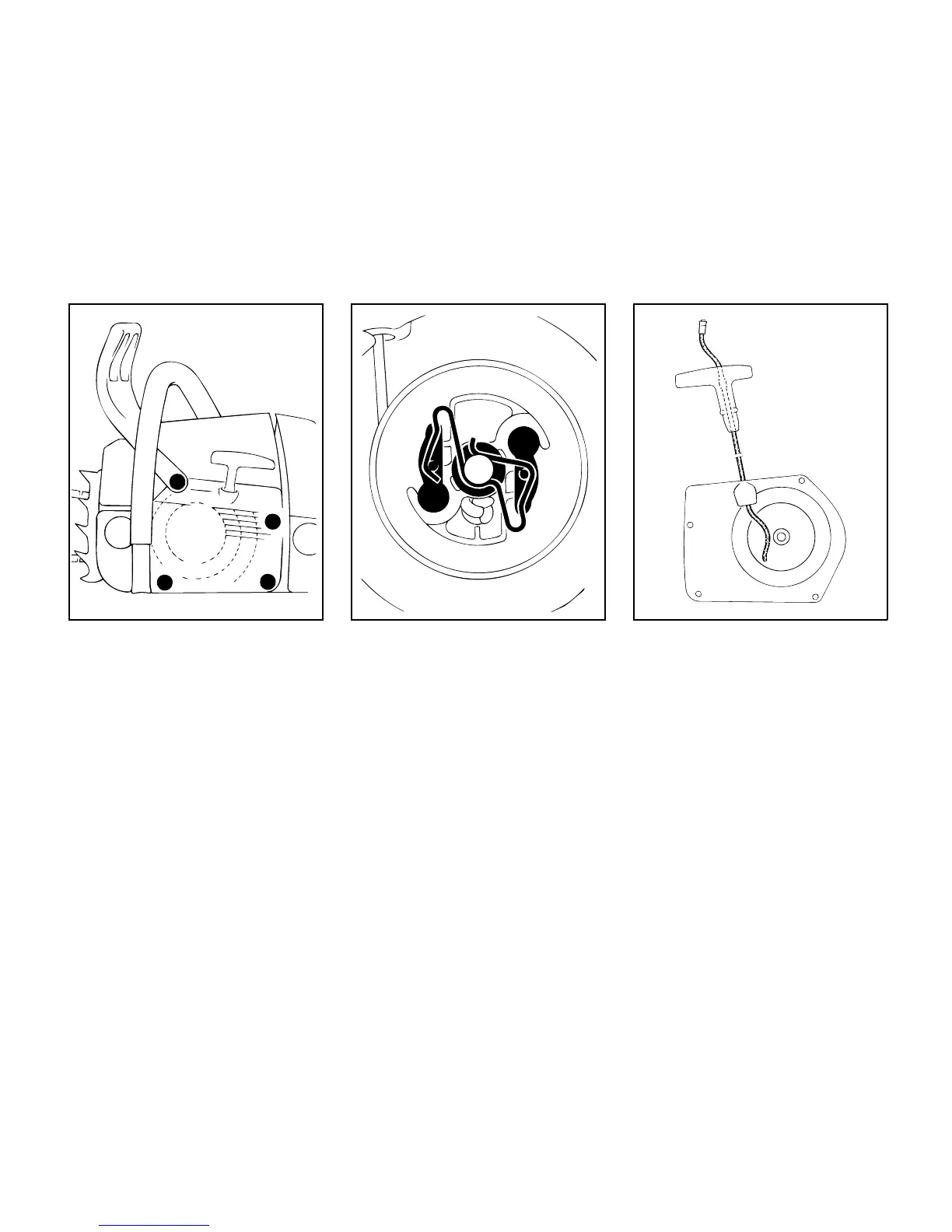

Remove four screws.
•
Push the hand guard upward.
•
Pull underside of fan housing away
from crankcase and remove it
downward
•
Use screwdriver or suitable pliers
to carefully remove spring clip 
from the starter post.
•
Now remove the rope rotor with
washer  and pawls.
•
Use a screwdriver to pry the rope
out of the starter grip.
•
Remove remaining rope from the
rotor and starter grip.
•
Thread the new rope -
Part No. 1122 190 2900 -
through the top of the starter grip
and then pull through the rope
guide bush .
