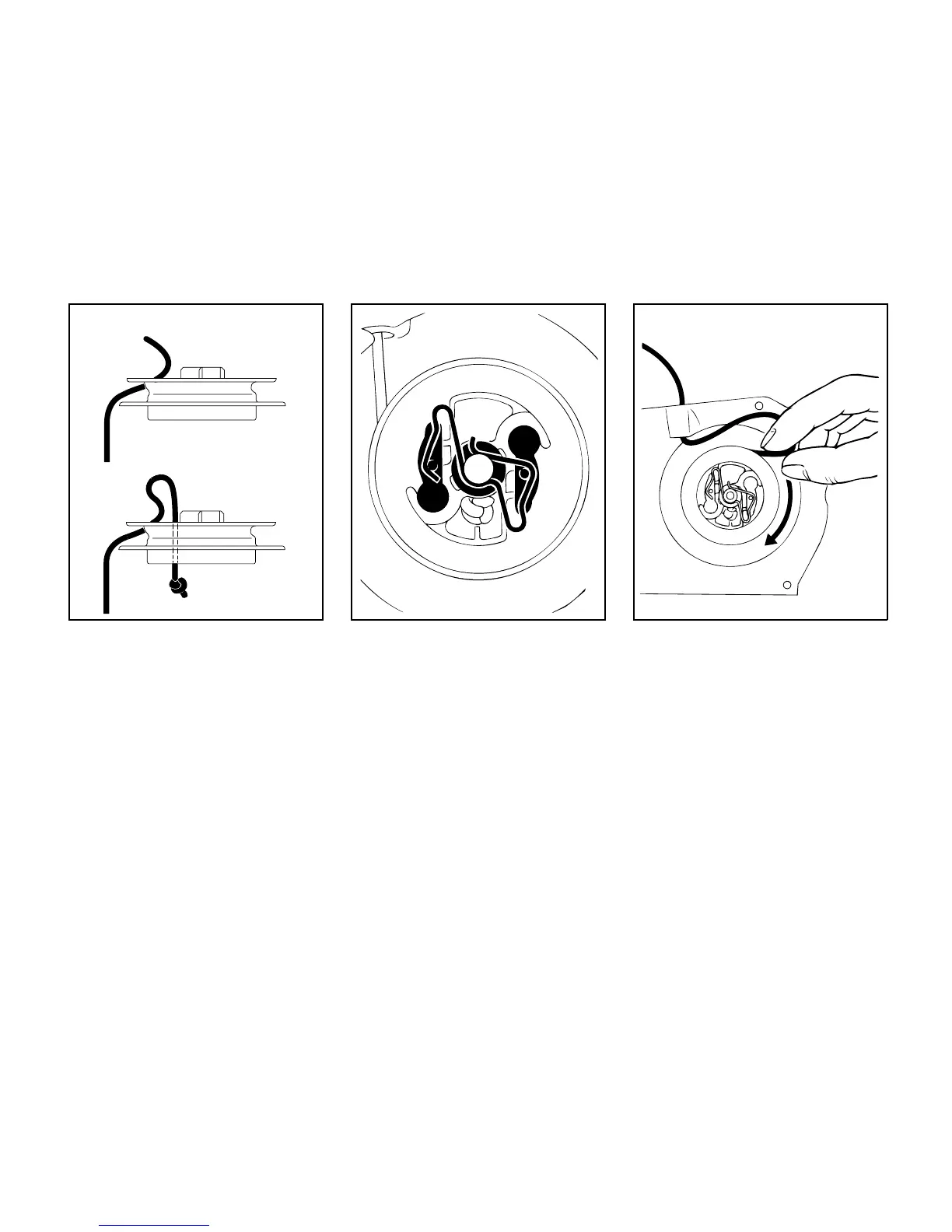

Thread the rope through the rotor
and secure it with a simple
overhand knot.
Coat rope rotor bearing bore with
non-resinous oil.
Slide rotor onto starter post -
turn it back and forth so that anchor
loop of rewind spring engages.
Refit the pawls in the rotor.
Fit the washer  on the starter
post.
Use screwdriver or suitable pliers to
install spring clip on starter post
and over the pawl pegs -
the spring clip must point in clock-
wise direction - see illustration.
7HQVLRQLQJUHZLQGVSULQJ
Make a loop in the starter rope and
use it to turn the rope rotor six full
revolutions in the direction of the
arrow.
Hold the rotor steady - straighten
the twisted rope.
Release the rotor.
Let go of rope slowly so that it
winds onto the rotor.
The starter grip must sit firmly in the
rope guide bush. If the grip droops
to one side: Increase spring tension
by one additional turn.
001BA004 K
