Stihl 038 - All cutters must be the same length; Depth gauge setting; Lowering depth gauges

&
oO
2
3
ved
oO

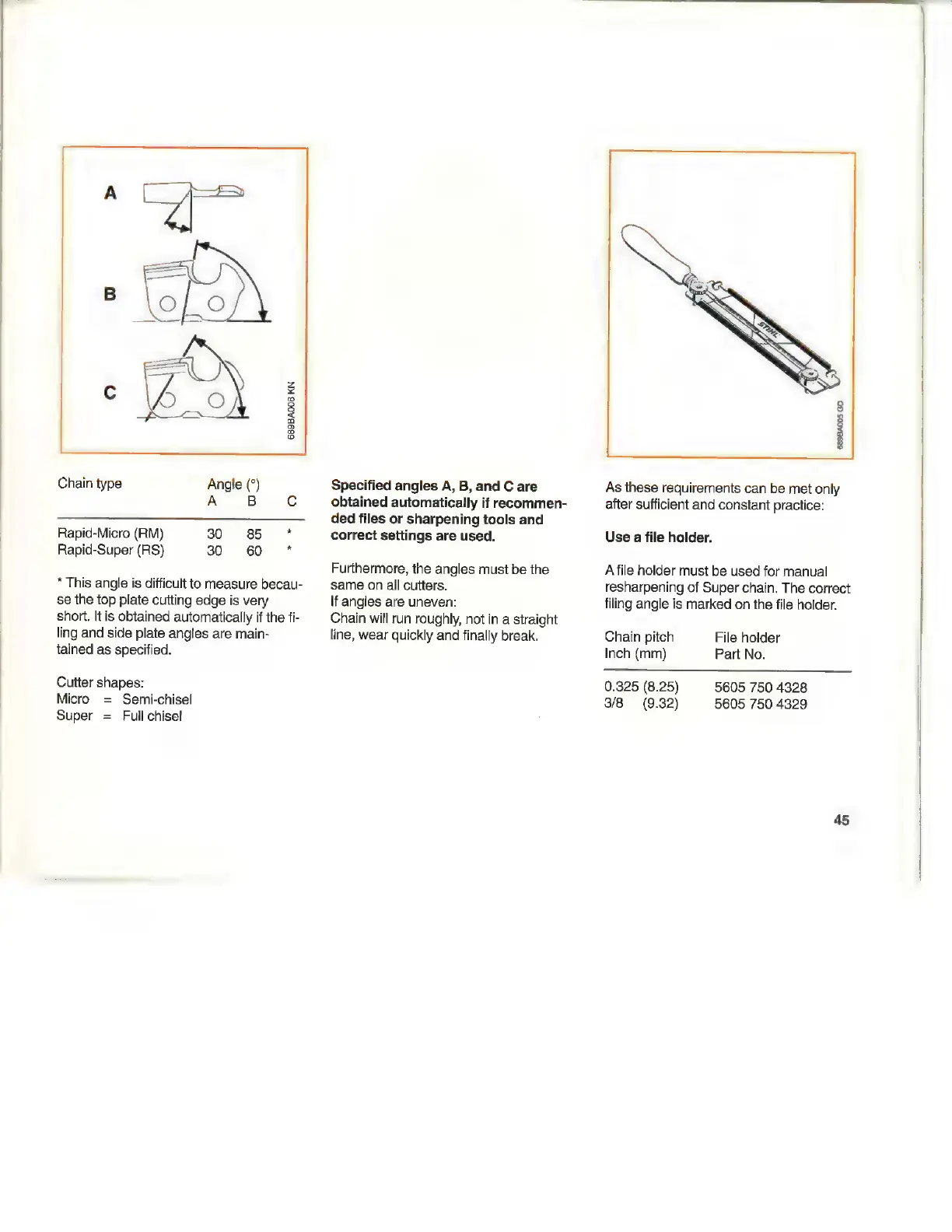

Chain
type
Angle
(°)
A
B
C
Rapid-Micro
(RM)
30
85
+*
Rapid-Super (RS) 30 60 *
* This angle is difficult to measure becau-
se the top plate cutting edge is very
short. It is obtained automatically if the fi-
ling and side plate angles are main-
talned as specified.
Cutter shapes:
Micro = Semi-chisel
Super = Full chisel
Specified angles A, B, and C are
obtained automatically if recommen-
ded files or sharpening tools and
correct settings are used.
Furthermore, the angles must be the
same on all cutters.
If angles are uneven:
Chain will run roughly, not in a straight
line, wear quickly and finally break.
As these requirements can be met only
after sufficient and constant practice:
Use a file holder.
A file holder must be used for manual
resharpening of Super chain. The correct
filing angle is marked on the file holder.
Chain pitch File holder
Inch (mm) Part No.
0.325 (8.25) 5605 750 4328
3/8 (9.32) 5605 750 4329
45
