Stihl 4144 Series - 9.2.3 One-part Carrying Ring; 9.2.4 Retainer; 9.3 Gearbox

75Series 4144 Components FC, FS, KM

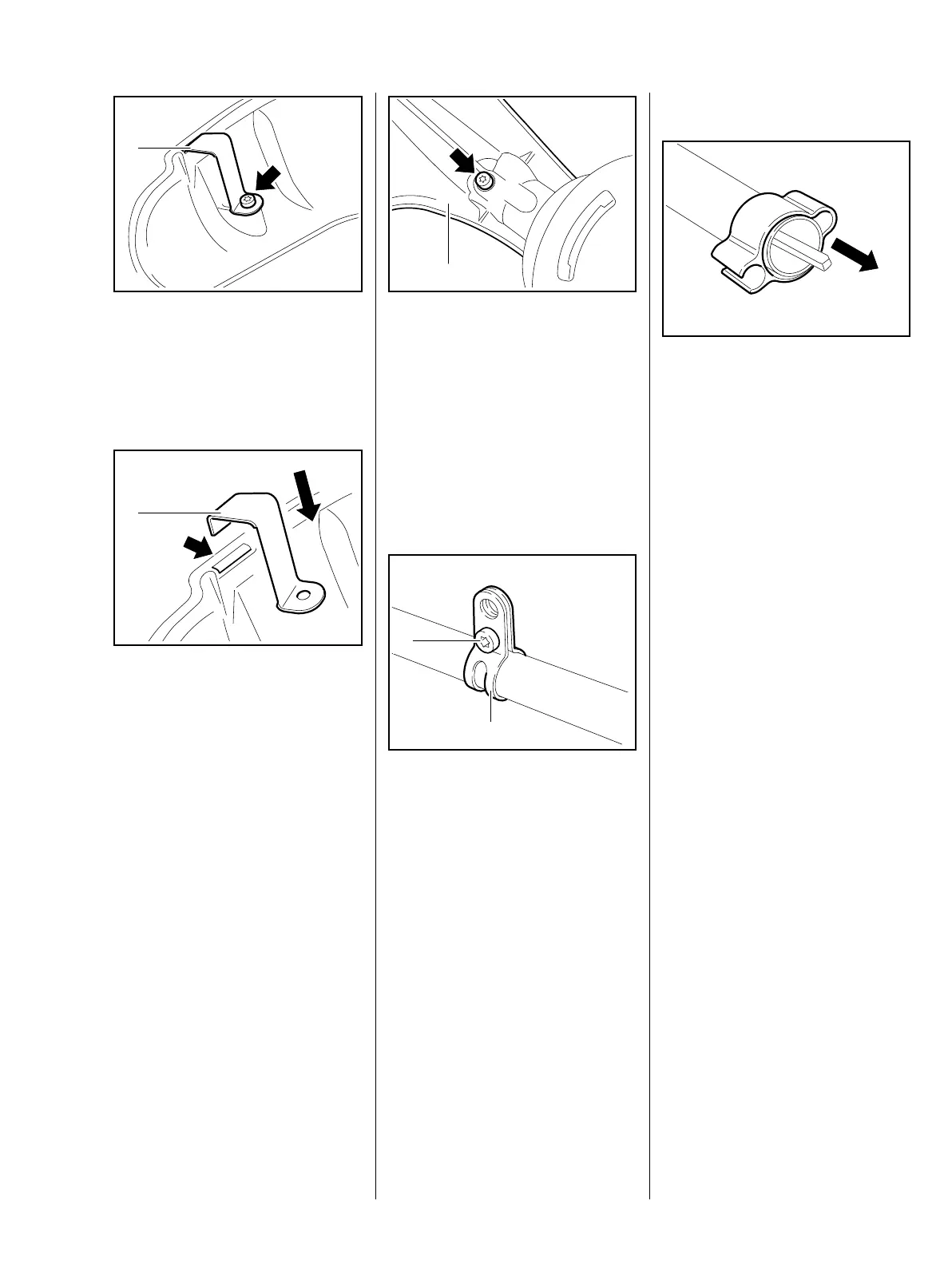

: Take out the screw (arrow).
– Remove the line limiting blade
(1), check and sharpen or replace
as necessary.
: Push the line limiting blade (1)
into its seat (arrow).
– Insert screw and tighten it down
firmly.
To avoid stripping the thread in the
plastic housing, carefully locate
screw in existing thread and tighten
in down.
– Check the gearbox, repair or
replace as necessary – see
"KombiTools" service manual.
1
545RA270 TG
1
545RA009 TG
– Locate deflector (1) against the
gearbox.
: Insert screw (arrow) and tighten it
down firmly.
– Reassemble all other parts in the
reverse sequence.
9.2.3 One-part Carrying Ring
: Take out the screw (2), bend
open the clamp (1) and remove it.
– Reassemble in the reverse
sequence.
1
545RA269 TG
2
1
545RA271 TG
9.2.4 Retainer
– Remove the drive tube, b 9.1
: Pull off the throttle cable retainer.
– Reassemble in the reverse
sequence.
9.3 Gearbox
Refer to "KombiTools" service
manual for descriptions of servicing
procedures on the gearbox.
545RA272 TG
