ADG 1
English
4
N Connect the unit to the power
supply – mains voltage and
operating voltage of the unit must be
the same – see "Connecting Unit to
Power Supply".
N Wait for unit to run self test – there is
no need to insert a battery in the unit
to select a language.
N Press the button on the unit – see
"Main Parts" – for about 3 seconds
to activate language selection.
N Press the button (about 1 second) to
select the required language.
N To confirm the language selected,
press the button on the unit again
for about 3 seconds.
The language can be changed at any
time.
The analyzer must be updated to cover
the latest cordless power tools or new
batteries and additional diagnostic
functions. The update can be performed
as described below.
Direct update with diagnostic software
and internet access
Computer with diagnostic software has
access to internet – see "Diagnostic
Software":
N Connect analyzer to the computer
with the USB cable.
In the menu, click on button "Check for
updates... ". The diagnostic software
checks whether an update is available. If
yes, the update is performed
automatically.
Indirect update (without computer)
If no computer is available, contact the
sales subsidiary.
N Connect the unit to the power
supply – see "Connecting to Power
Supply".
Operate the unit indoors only in dry
locations at an ambient temperature
between +5°C and +40°C.

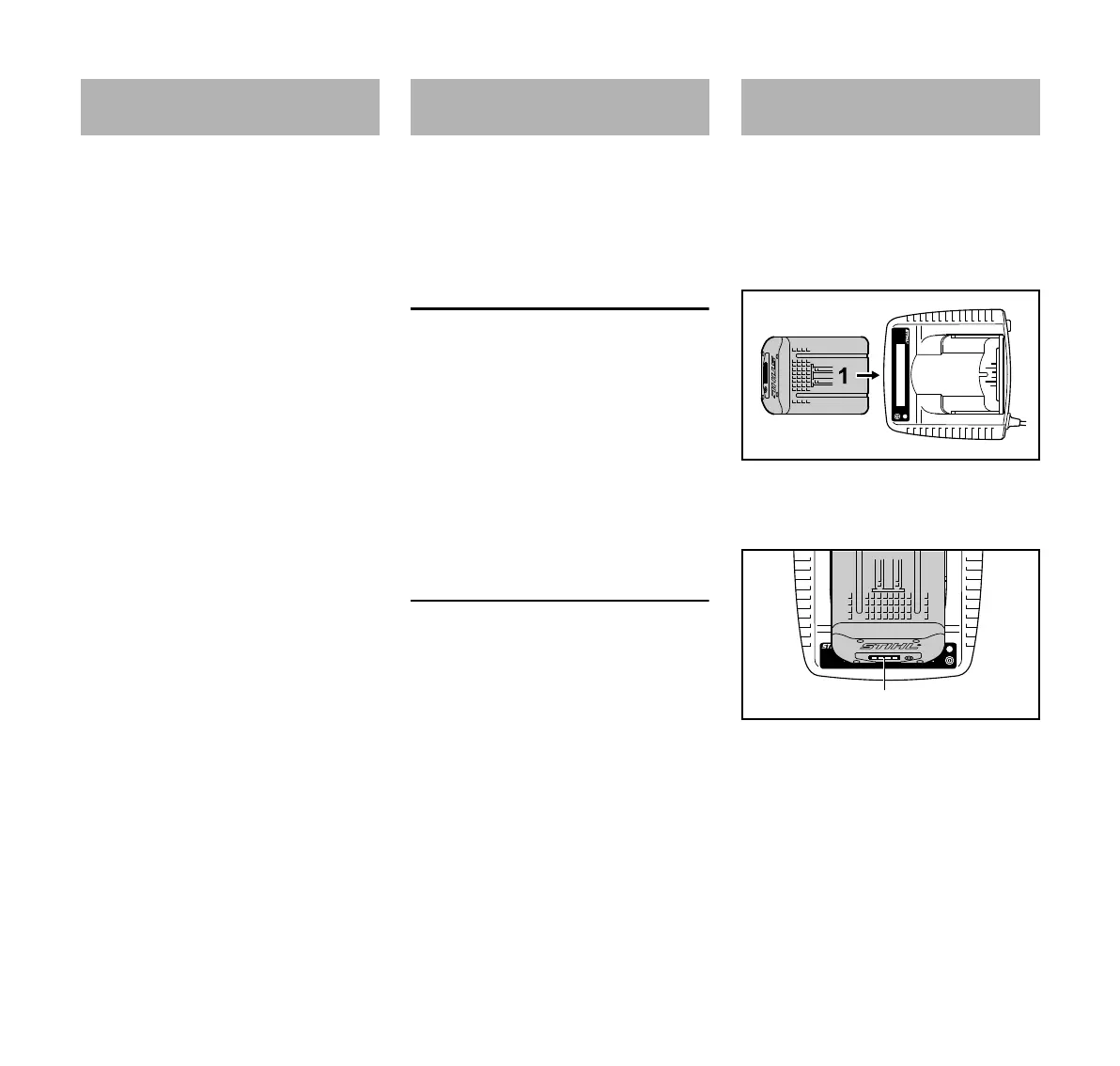

N Push the battery (1) into the unit (2)
until you feel noticeable resistance –
then push it as far as stop.
The test procedure begins as soon as
the light emitting diodes (3) on the
battery come on – see "Light Emitting
Diodes (LEDs) on Battery".
The battery and analyzer communicate
with each other. The analyzer can only
check the battery if this data exchange
functions. For this reason the battery
analyzer may only be used with
