ADG 1
English
5
approved STIHL batteries. This
exchange of data may take several
minutes.
Refer to the “Technical Information”
bulletins for engineering changes and
software updates which have been
introduced since publication of this
instruction manual. "Technical
Information" bulletins supplement the
instruction manual.
The display provides information on the
test procedure.
N Follow the instructions on the
display.
N For further information, hold the
pushbutton (4) depressed for about
1 second.
After Test
Take the battery out of the unit.

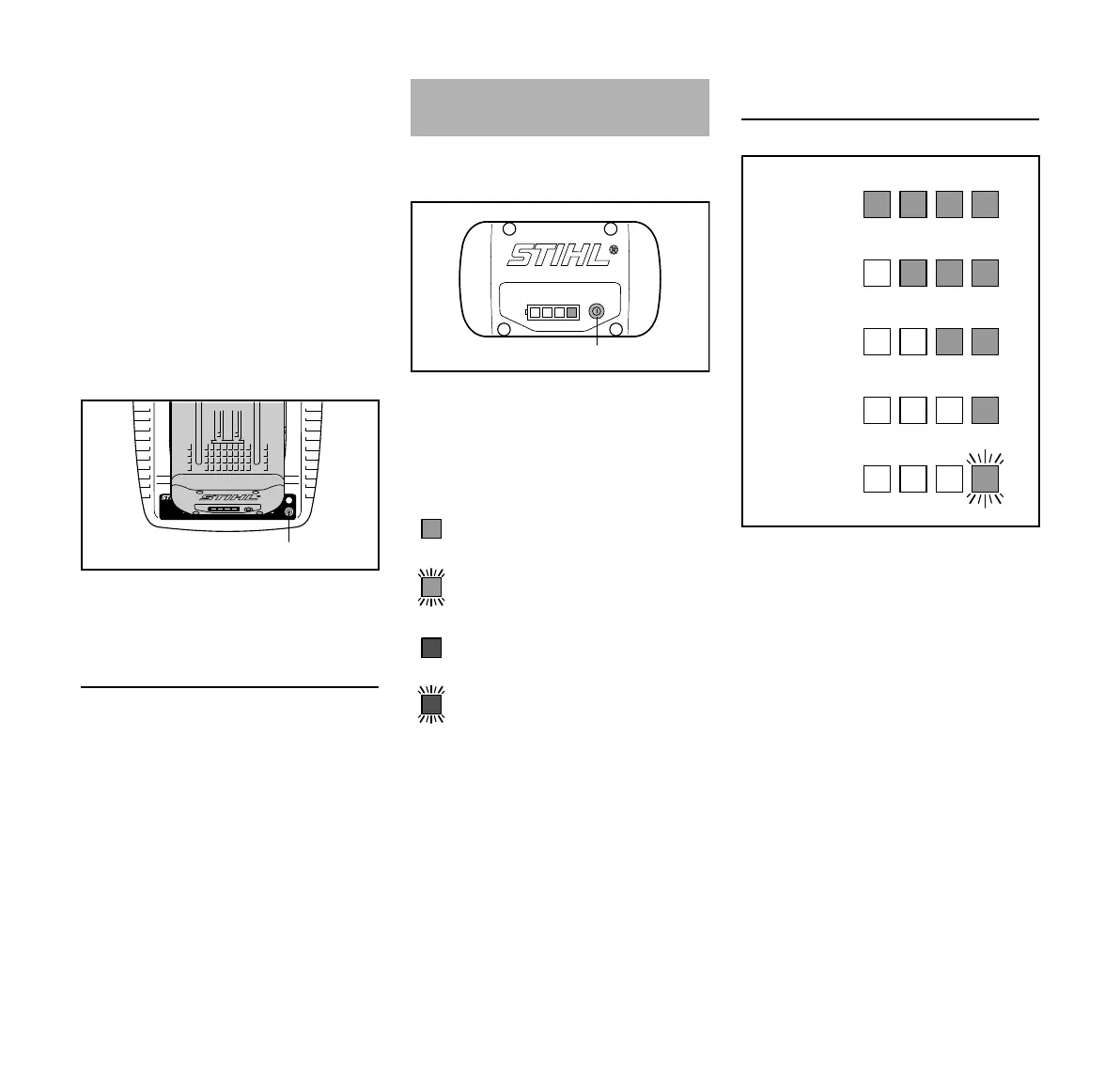

Four light emitting diodes indicate the
condition of the battery.
N Press button (1) to activate the
display – the display goes off
automatically after 5 seconds.
The light emitting diodes can glow or
flash green or red.
If the green light emitting diodes glow /
flash
The green light emitting diodes indicate
the battery's state of charge by glowing
and flashing continuously.
4
4901BA009 KN
Light Emitting Diodes (LED)
on Battery
Light emitting diode glows con
-
tinuously green.
Light emitting diode flashes
green.
Light emitting diode glows con
-
tinuously red.
Light emitting diode flashes red.
1
3901BA010 KN
3901BA016 KN
80 - 100 %
60 - 80 %
40 - 60 %
20 - 40 %
0 - 20 %
