FS 130, FS 130 R
English
21
N Pull out the wing screw – the
washer (6) remains on the wing
screw.
N Separate the clamp moldings – the
springs (4 and 5) remain in the
lower clamp.

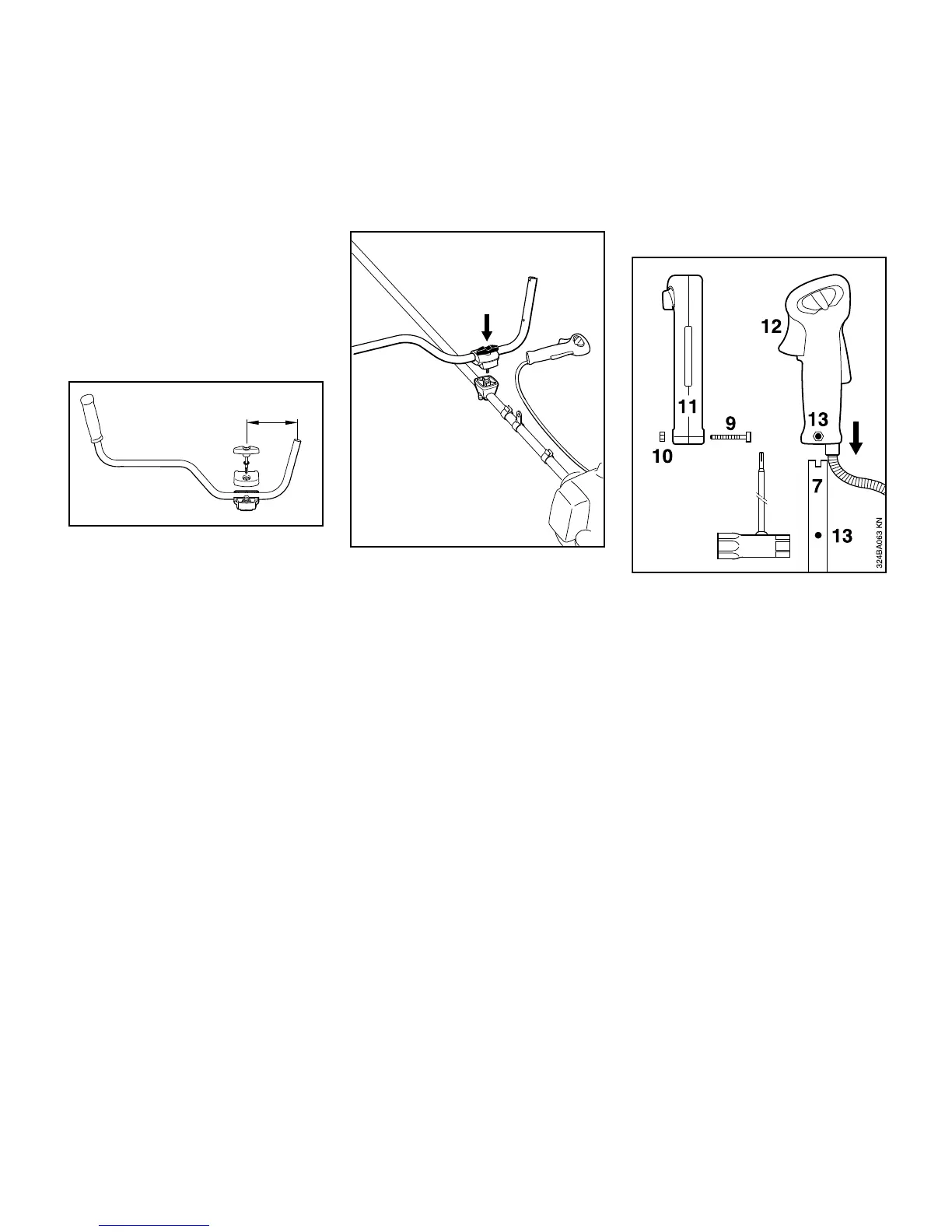

Securing the Handlebar
N Place the handlebar (7) in the lower
clamp (1) so that distance A is no
more than 6 in (15 cm).
N Place the upper clamp in position
and hold both clamp moldings
together.
N Push the wing screw through the
two clamps as far as stop – hold all
parts together and secure them.
N Place the secured assembly on the
handle support (8) with the wing
screw at the side nearest the
engine.
N Push the wing screw into the handle
support as far as stop and then
screw it down – but do not finally
tighten yet.
N Line up the handlebar at a right
angle to the drive tube – check
distance A again.
N Tighten down the wing screw firmly.
Mounting the Control Handle
N Take out the screw (9) – the nut (10)
remains in the control handle (11).
N Push the control handle onto the
end of the handlebar (7) until the
holes (13) line up – the throttle
trigger (12) must point towards the
gearhead.
N Insert the screw (9) and tighten it
down firmly.
Fitting the Throttle Cable
NOTICE
Do not kink the throttle cable or lay it in
tight radii – make sure the throttle trigger
moves freely.
1
7
A
250BA046 KN
002BA234 KN
8
