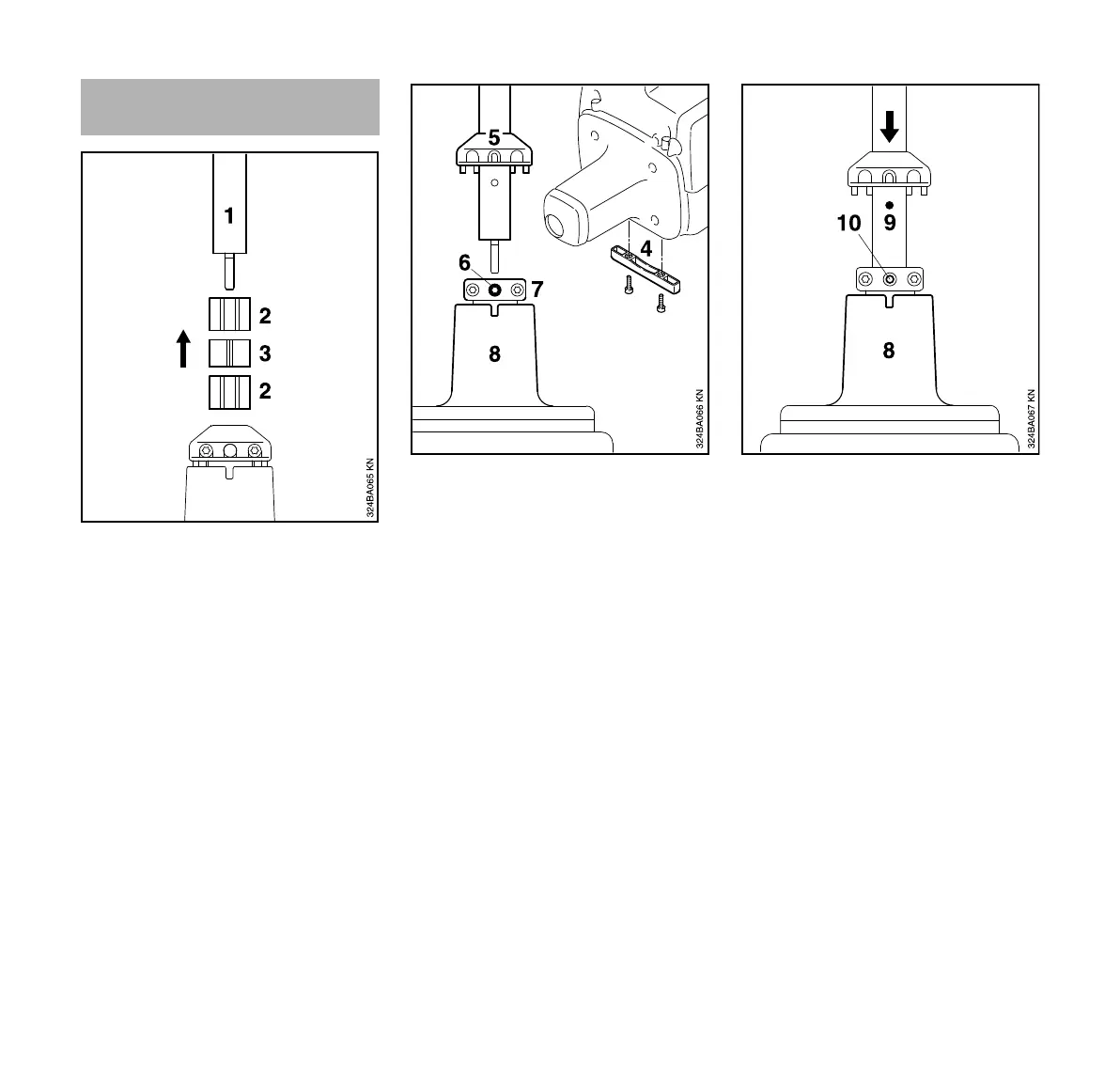

N Pull the protective cap off the drive
tube (1).
N Slide the two throttle cable
retainers (2) and the clamp (3) for
the harness onto the drive tibe in the
order shown.
N If the machine support is supplied
separately – use the two M5x16
screws to mount the machine
support (4) to the underside of the
engine.
N Unscrew the center screw (6) from
the sleeve (7) and pull the cap (5)
off the clutch housing (8). Then
push the cap onto the drive tube.
N Push the drive tube through the
sleeve and into the clutch
housing (8) until the hole (9) in the
drive tube lines up with the tapped
hole (10) in the sleeve.
