8 Carburetor adjusting screws
For tuning the carburetor.
9 Fuel tank cap
The fuel tank cap closes the fuel tank.
10 Muffler
Reduces brushcutter noise emissions.
11 Manual fuel pump
The manual fuel pump makes it easier to start
the engine.
12 Choke lever
The choke lever helps start the engine.
13 Carrying ring
The carrying ring is for attaching the carrying
system.
14 Throttle cable retainer
The throttle cable retainer secures the throttle
cable in position.
15 Control handle
The control handle is used for operating,
holding and controlling the brushcutter.
16 Stop switch
The stop switch shuts off the engine.
17 Throttle trigger lockout
The throttle trigger lockout unlocks the throttle
trigger.
18 Throttle trigger
The throttle trigger is used to control the
motor speed.
19 Handle
The handle is for holding and controlling the
brushcutter.
20 Handlebar
The handlebar connects the control handle
and the handle to the shaft.
21 Throttle cable
Connects the throttle trigger to the engine.
22 Shaft
The shaft connects all components.
23 Gear housing
The gear housing encloses the gearbox.
24 Opening for stop pin
The opening for the stop pin accommodates
the stop pin.
25 Screw plug
The screw plug closes the filler opening for
STIHL gear grease.
26 Stop pin
The stop pin blocks the shaft while a cutting
attachment is being mounted.
# Rating plate with the machine number

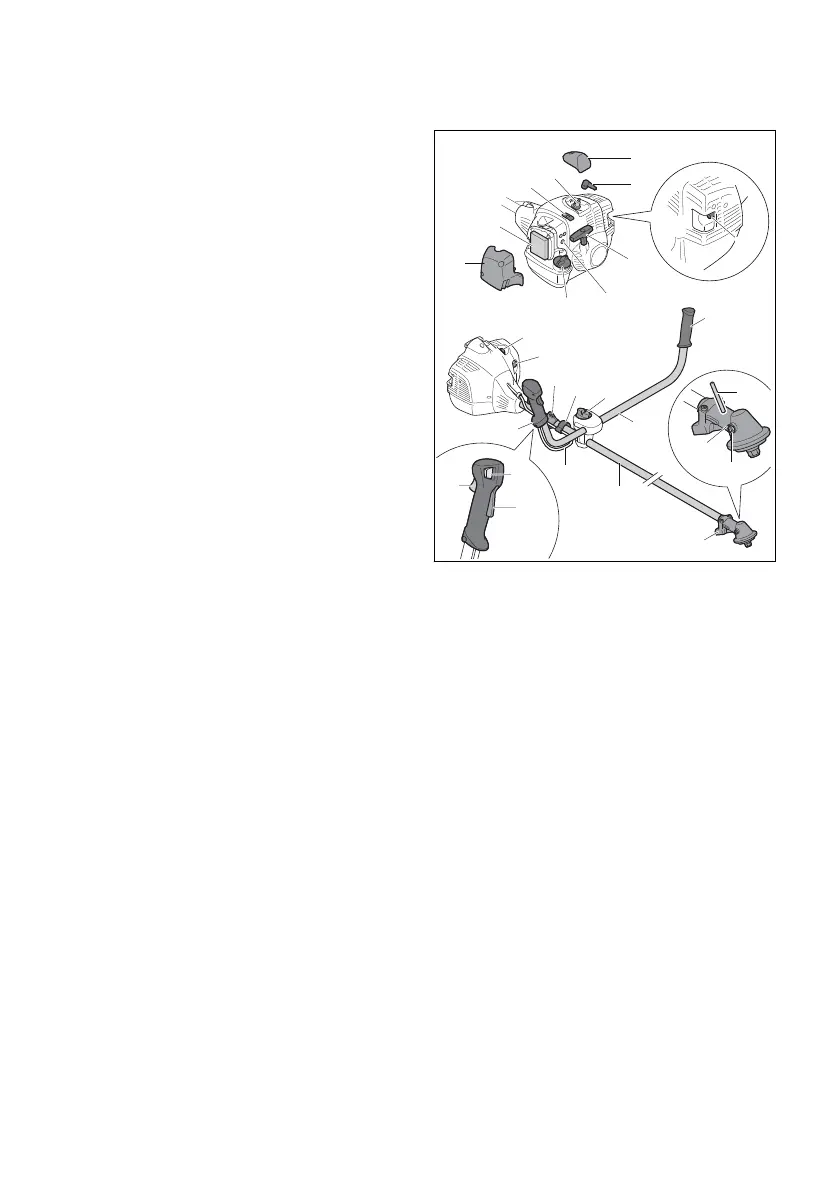

3.2 Brushcutter
1
2
3
5
6
7
8
9
4
11
12
13
14
23
20
22
19
21
24
10
17
16
18
#
27
25
26
15
0000101061
_001
1 Filter cover
Covers the air filter.
2 Air filter
The air filter filters the air entering the engine.
3 Shutter
The shutter is used to select summer or win‐
ter operating mode.
4 Spark plug
Ignites the fuel-air mixture in the engine.
5 Cover
Covers the spark plug.
6 Spark plug boot
Connects the ignition lead to the spark plug.
7 Starter grip
The starter grip is used for starting the
engine.
8 Carburetor adjusting screws
For tuning the carburetor.
9 Fuel tank cap
The fuel tank cap closes the fuel tank.
10 Muffler
Reduces brushcutter noise emissions.
11 Manual fuel pump
The manual fuel pump makes it easier to start
the engine.
English 3 Overview
30 0458-034-8701-A
