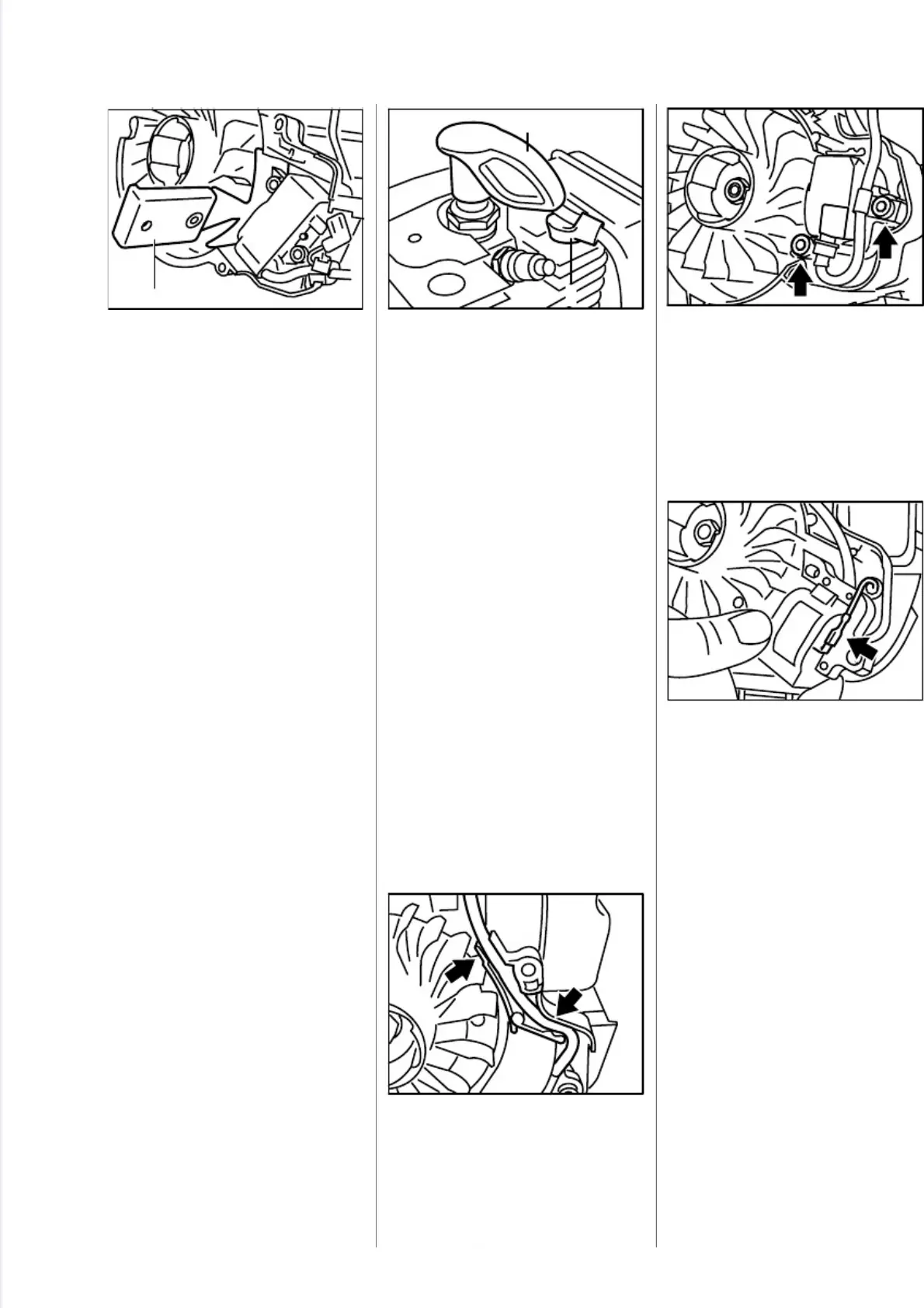

- Place the module in position,
insert the screws but do not
tighten them down yet.
- Check that ignition lead is
properly seated in grommet.
•
Slide the setting gauge (1)
1127 890 6400 between the
arms of the ignition module and
the flywheel magnet poles.
- Press the ignition module
against the flywheel and tighten
down the mounting screws to a
torque of 4.5 Nm (3.3 lbf.ft).
Reassemble all other parts in the
reverse sequence.
- Remove the shroud -see 4.1.
-Remove the fan housing -see
6.2.
•
Pull boot (1) off the spark plug.
•
Pull cable retainer (2) out of
cylinder.
•
Take ignition lead out of guide.
•
Take out the screws.
•
Lift ignition module away slightly
and disconnect short circuit wire
from ignition module.
- Remove the ignition lead - see
5.2.
- Connect the short circuit wire,
place the module in position,
insert the screws but do not
tighten them down yet.
2
5
0
R
A
1
0
3
V
A
2
5
0
R
A
1
0
4
V
A
2
5
0
R
A
1
0
2
V
A
5.3.3 Removing and Installing (FS 400/450, FR 450)
2
5
0
R
A
1
0
1
1
2
V
A
2
5
0
R
A
1
0
0
1
V
A
FS 120, 200, 300, 350, 400, 450, FR 350, 450 27
