FS 120...350, FR 350
Troubleshooting chart - see
"Standard Repairs, Trouble-
shooting" handbook.
Important:In the event of trouble
with the carburetor or the fuel
supply system, always check and
clean the tank vent -see 8.3.

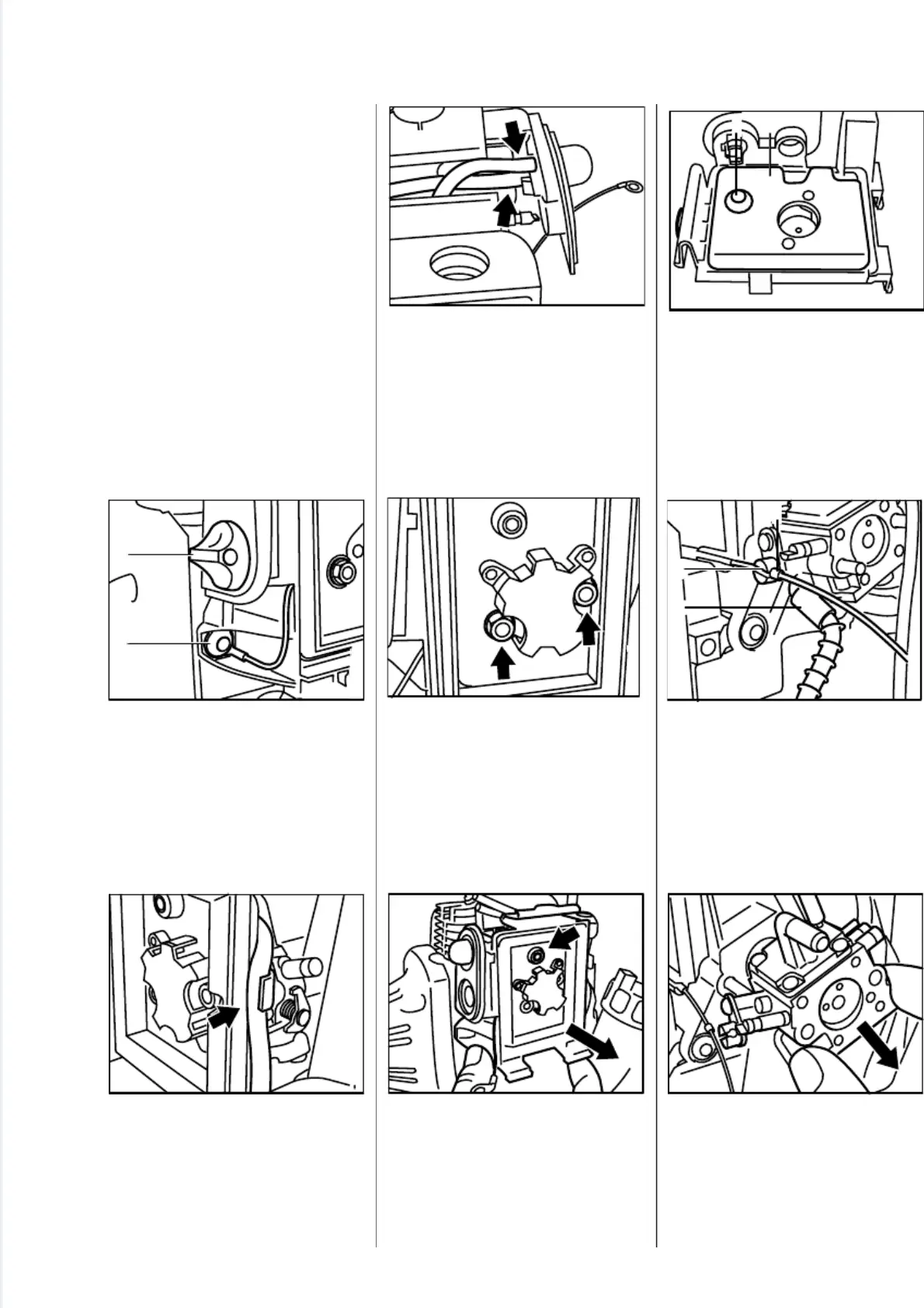

- Remove the shroud -see 4.1.
- Remove the air filter -see 8.1.
•
Take out screw (1) of extended
throttle cable.
•
Pry choke knob (2) out of filter
housing and pull it off the choke
shaft.
•
Take fuel hose out of retainer in
filter housing.
•
Disconnect fuel hoses from
manual fuel pump.
•
Unscrew the nuts.
•
Remove the filter housing and
pull stub out of grommet at the
same time.
•
Check heat shield (1). If necessa-
ry, push out the grommet (2) and
remove the heat shield.
•
Disconnect throttle cable nipple
(1) from slotted pin (2) on throttle
lever.
•
Pull the fuel hose (3) off the
elbow connector on the carbure-
tor.
•
Pull carburetor off the studs.
- If necessary, pull fuel hose off
carburetor.
2
5
0
R
A
1
5
6
V
A
2
5
0
R
A
1
6
0
3
2
1
V
A
2
5
0
R
A
1
5
7
V
A
2
5
0
R
A
1
6
1
V
A
2
5
0
R
A
1
5
8
V
A
2
5
0
R
A
1
5
9
2 1
V
A
8.2 Carburetor
8.2.1 Removingand Installing
2
5
0
R
A
1
5
5
V
A
2
5
0
R
A
1
5
4
1
2
V
A
FS 120, 200, 300, 350, 400, 450, FR 350, 450 39

Stihl FS 200 Specifications

General

Engine Type	2-stroke
Shaft Type	Straight
Vibration Level	4.5 m/s²
Engine Power	0.8 kW
Displacement (cm³)	40.2 cm³
