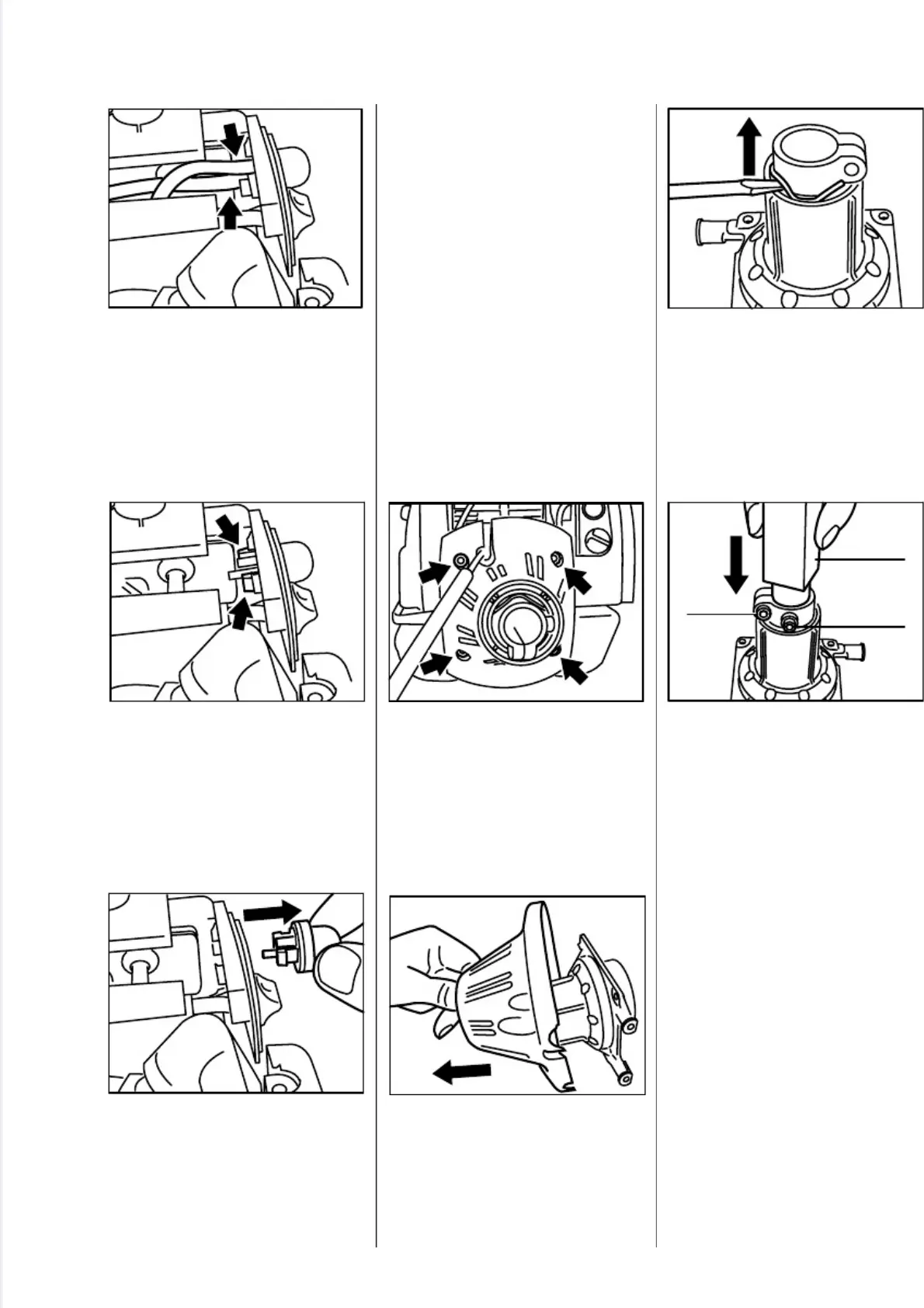

- Remove the shroud -see 4.1.
- On FS 120...350, FR350,
remove the air filter -see 8.1.
•
Disconnect hoses from
connectors.
•
Carefully push back the retaining
tabs.
•
Pull fuel pump out of its seat in
the filter/ carburetor housing.
Install in the reverse
sequence.
The anti-vibration (AV) connection
between the engine and drive tube
consists of a rubber element
installed in the clutch housing.
- Removethe drive tube - see
10.6.
•
Take out the screws.
- Remove the clutch housing and
clutch shroud.
•
Take the clutch shroud off the
clutch housing.
•
Lever the retaining ring out of the
clutch housing.
- Remove retaining ring over
the AV sleeve.
•
Push installing tool (1)
4126 893 4900 into AV sleeve
as far as stop.
•
Tighten down clamp screw (2).
•
Tighten fixing screw (3) modera-
tely if necessary.
- Apply a little lubricant (e.g. was-
hing-up liquid) between the
clutch housing and rubber ele-
ment.
8.6 Manual Fuel Pump 9. AV SYSTEM
9.1 Repair (FS 120/200)
2
5
0
R
A
1
8
9
V
A
2
5
0
R
A
1
8
6
V
A
2
5
0
R
A
1
8
7
V
A
2
5
0
R
A
1
9
0
V
A
2
5
0
R
A
1
9
1
V
A
2
5
0
R
A
1
9
2
V
A
2
5
0
R
A
1
9
3
2
3
1
V
A
FS 120, 200, 300, 350, 400, 450, FR 350, 450 47
