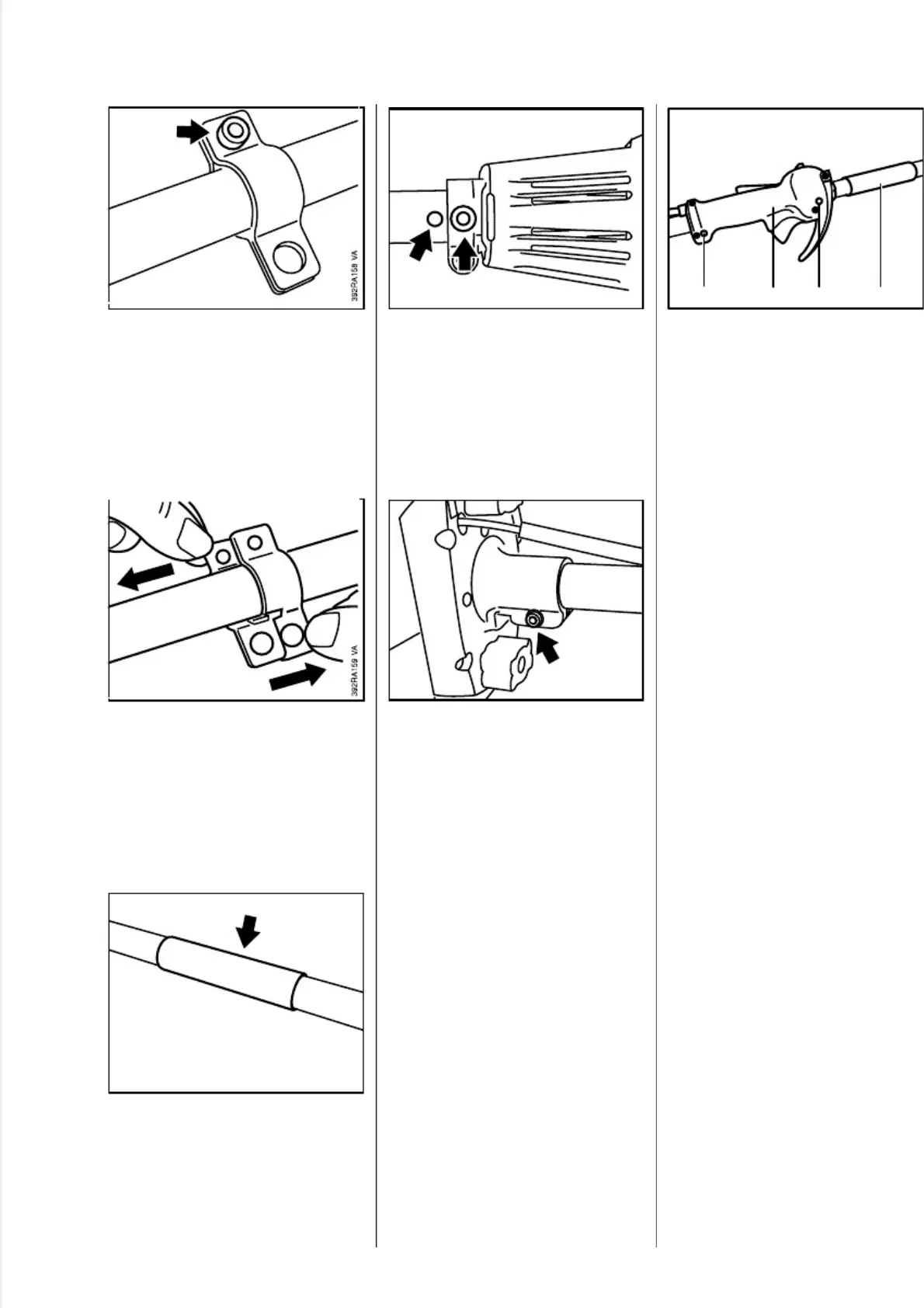

Remove screw from hose clamp
for harness.
•
Pull the hose clamp apart and
take it off the drive tube.
•
Pull off the sleeve, if fitted.
Reassemble in the reverse
sequence.
•
Degrease the clamp mounting
area and push the drive tube
home so that the holes line up.
- Tighten down fixing screw to
2.5 Nm (1.8 lbf.ft) and clamp
screw to 5.5 Nm (4.0 lbf.ft).
FS 300...450
-Remove the AV housing - see
9.2.
- Remove the drive shaft - see
10.4.
•
Release the clamp screw.
- Pull the drive tube out of the
clutch housing.
Reassemble in the reverse
sequence.
- Degrease the clamp mounting
area and push the drive tube
home into clutch housing as far
as stop.
- Tighten down clamp screw to
8.5 Nm (6.3 lbf.ft) (FS 300/350)
or 12 Nm (8.8 lbf.ft) (FS 400/
450).
FR 350/450
-Remove the drive shaft - see
10.4.
- Remove the housing -see 10.7.
•
Release screws (1) on clamps of
control handle (2).
•
Pull off the control handle.
•
Pull off the sleeve (3).
Reassemble in the reverse
sequence.
- Line up control handle relative to
housing -see 7.4.
- Tighten screws on clamps to
2.0 Nm (1.5 lbf.ft).
2
5
0
R
A
2
0
7
V
A
3
9
2
R
A
1
3
9
V
A
2
5
0
R
A
2
0
8
V
A
2
5
0
R
A
2
4
9
1 2
1
3
V
A
FS 120, 200, 300, 350, 400, 450, FR 350, 450 55
