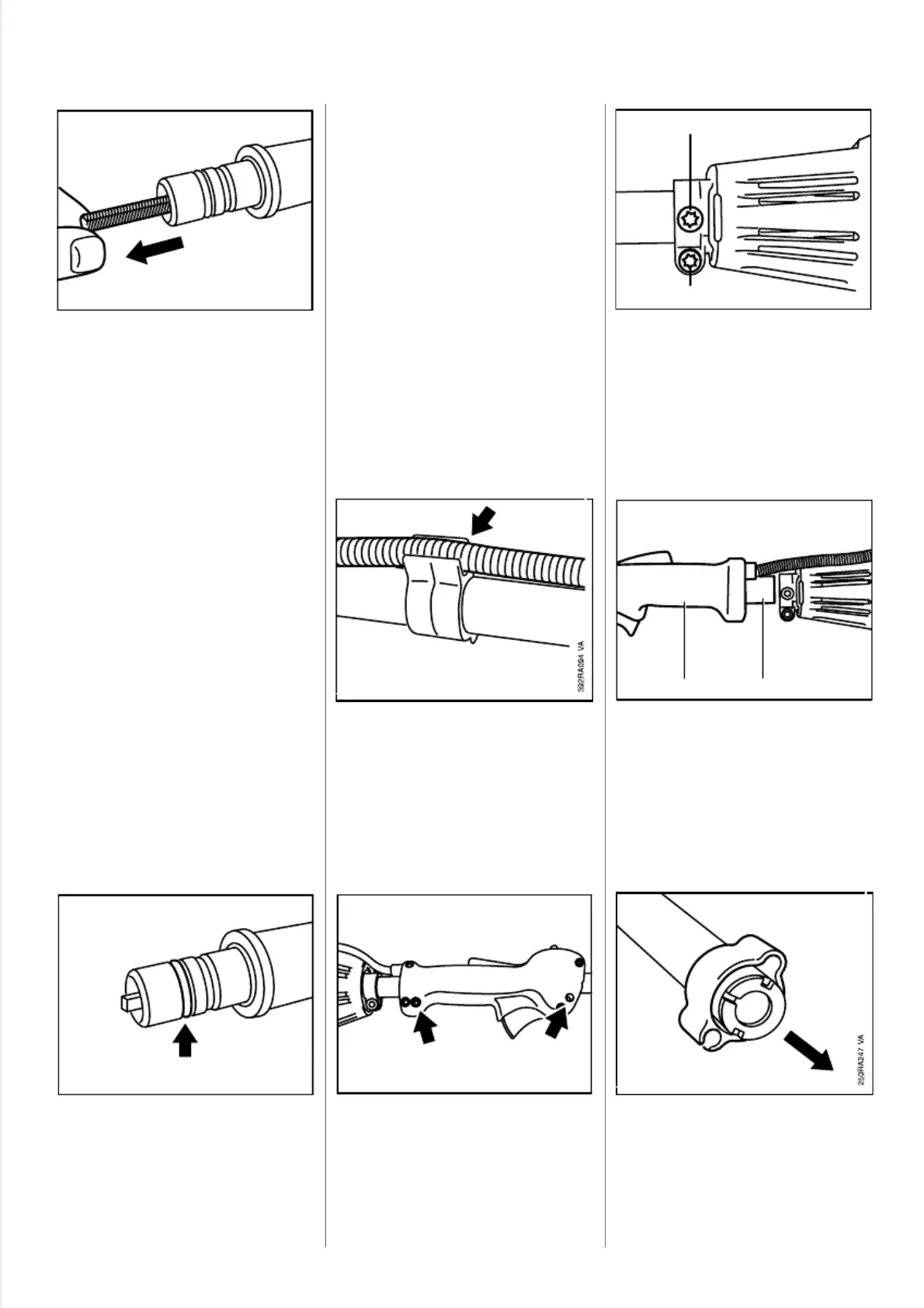

Pull flexible shaft out of the
drive tube.
Note:If flexible shaft has turned
blue, fit a new one.
- Coat the flexible shaft with
STIHL gear lubricant 0781 120
1109, see 13.2, before installa-
tion.
Important:Apply the grease
uniformly and thinly to the whole
shaft. Do not pump grease directly
into the drive tube.
•
Inspect the 0-ring and fit a new
one if necessary.
- Install flexible shaft and fit
throttle cable in the retainers.
FS 120/200
- Remove the drive shaft - see
10.4.
- Remove the bike or loop handle -
see 10.1 and 10.3.
•
On machines with bike handle,
take throttle cable out of
retainers.
•
On machines with loop handle,
release screws on control handle
clamps.
•
Take the fixing screw (1) out of
the AV sleeve.
•
Release the clamp screw (2).
- Pull out the drive tube.
•
On machines with loop handle,
pull the drive tube (1) out of the
control handle (2) at the same
time.
•
Slip the throttle cable retainer, if
fitted, off the drive tube.
3
9
2
R
A
1
2
9
V
A
2
1
3
9
2
R
A
1
5
6
2
1
V
A
10.6 Drive Tube
2
5
0
R
A
2
0
6
V
A
3
6
2
R
A
1
7
4
3
6
2
R
A
1
7
4
V
A
3
6
2
R
A
1
7
5
3
6
2
R
A
1
7
5
V
A
54 FS 120, 200, 300, 350, 400, 450, FR 350, 450
