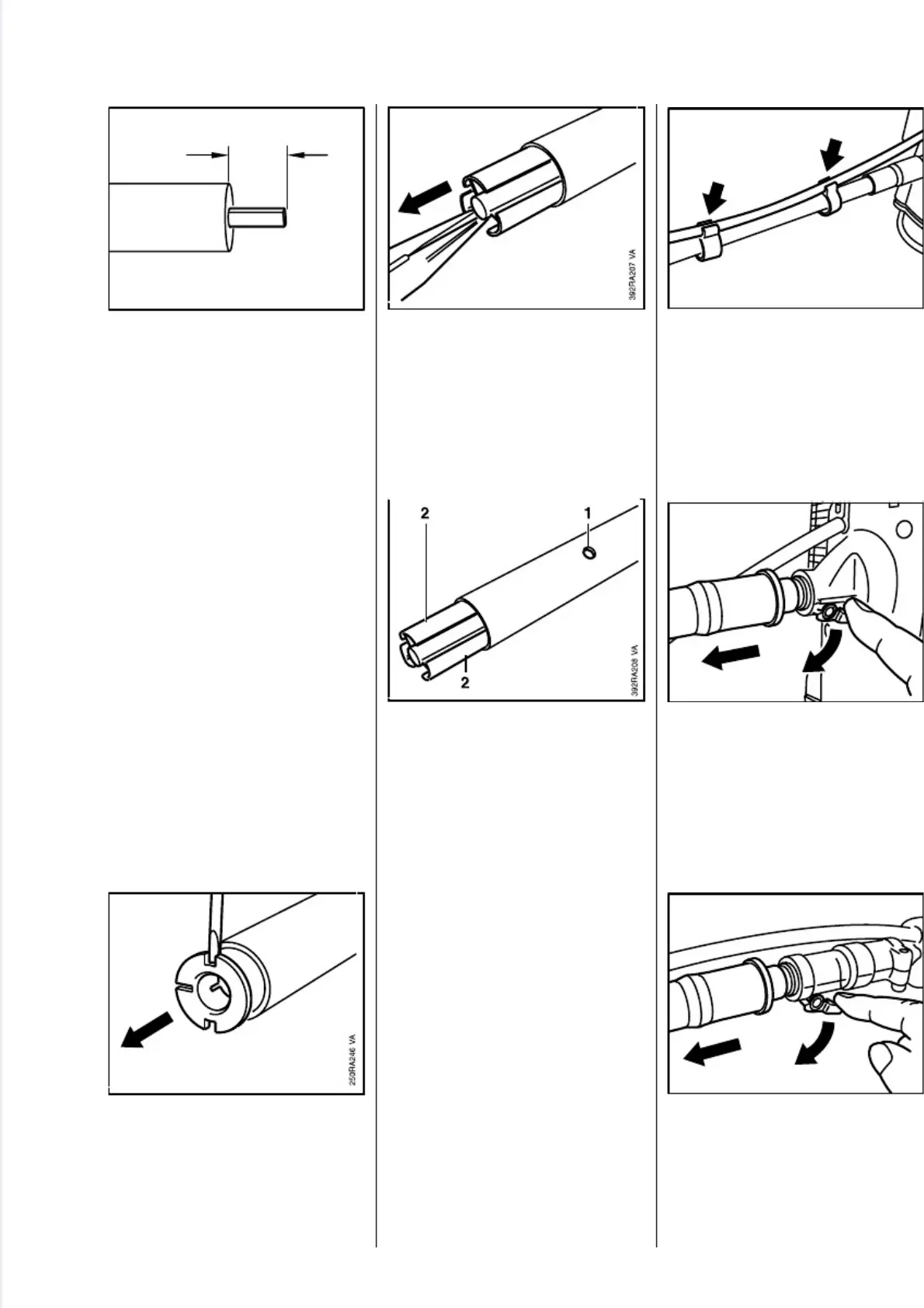

Push the drive shaft into the
drive tube until dimension "A" is
20 mm/0.8" (FS 120/200) or 30
mm/1.2" (FS 300...450).
If necessary, apply slight pres-
sure to the shaft and rotate it
slowly until it can be pushed in to
the specified dimension.
- Fit the gearhead -see 11.1.
Flexible liner
- Removethe drive tube - see
10.6.
•
Pry the plug out of the drive tube.
•
Pull out the flexible liner.
•
On FS 120/200, the hole (1)
must be between the spokes (2).
- Insert plug, install the drive tube -
see 10.6.
•
Take throttle cable out of the two
retainers.
•
Press down lever on clutch
housing.
- Pull out the shaft.
•
Press down lever on housing.
- Pull out the shaft.
10.5 Flexible Shaft
(FR 350/450)
3
6
2
R
A
1
7
7
A
V
A
2
5
0
R
A
2
4
1
V
A
2
5
0
R
A
2
4
0
V
A
2
5
0
R
A
2
4
3
V
A
FS 120, 200, 300, 350, 400, 450, FR 350, 450 53
