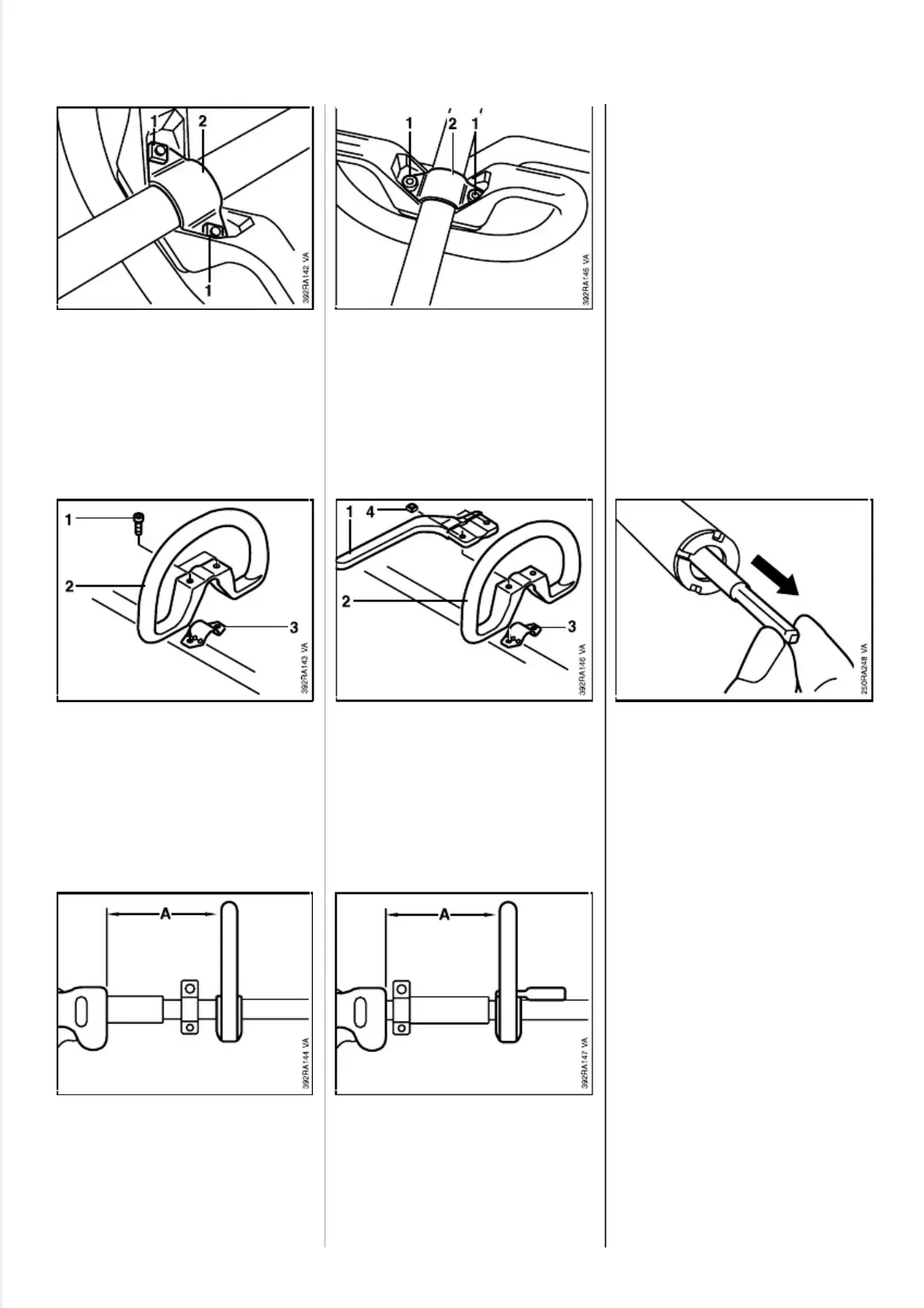

Loop handle without barrier bar
•
Unscrew the nuts (1).
•
Remove lower clamp (2).
•
Remove screws (1).
•
Remove the loop handle (2) and
upper clamp (3).
Reassemble in the reverse
sequence.
•
Align the loop handle at
distance "A" = 20 cm (8") from
the control handle and tighten
down firmly.
Loop handle with barrier bar
•
Take out screws (1).
•
Remove lower clamp (2).
•
Remove the barrier bar (1), loop
handle (2) and upper clamp (3).
•
Take the square nuts (4) out of
the barrier bar.
Reassemble in the reverse
sequence.
•
Align the loop handle at
distance "A" = 20 cm (8") from
the control handle and tighten
down firmly.
The drive shaft is supported in a
flexible liner inside the drive tube.
The ends of the drive tube are
sealed with plugs.
- Remove the gearhead -see 11.1.
Drive shaft
•
Pull the drive shaft out of the
drive tube.
Note:If the shaft has turned blue,
fit a new one.
- Coat the drive shaft with STIHL
gear lubricant 0781 120 1109,
see 13.2, before installation.
Important:Apply the grease
uniformly and thinly to the whole
drive shaft. Do not pump grease
directly into the drive tube.
- Push the drive shaft into the
drive tube.
10.3 Loop Handle 10.4 Drive Shaft/ 
Flexible Liner
52 FS 120, 200, 300, 350, 400, 450, FR 350, 450

Stihl FS 200 Specifications

General

Engine Type	2-stroke
Shaft Type	Straight
Vibration Level	4.5 m/s²
Engine Power	0.8 kW
Displacement (cm³)	40.2 cm³
