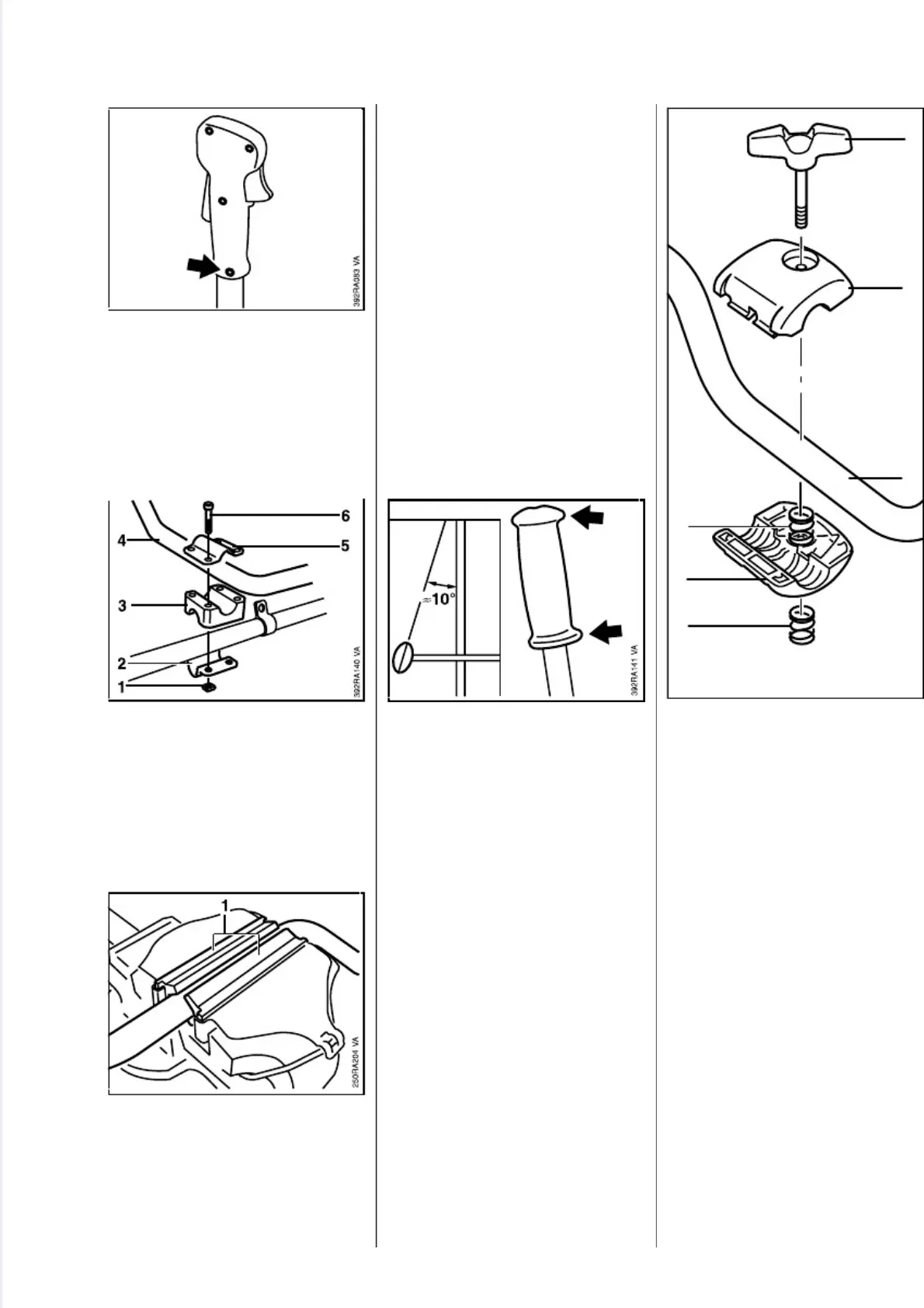

Take out the screw.
- Pull off the control handle.
•
Unscrew the nuts (1).
•
Remove lower clamp (2),
support block (3), bike handle (4)
and upper clamp (5) with screws
(6).
•
Use jaws (1) 5910 893 2700 to
clamp bike handle tube in vice.
- To replace left grip, carefully cut
it open and pull it off.
- Coat inside of new grip with a
little lubricant (e.g. washing-up
liquid).
Note:If too much lubricant is
used, the grip will twist on the
tube. Always leave it to dry for a
while after fitting.
•
Push the grip into position so
that the longer ends (see arrows)
point toward the gearhead at an
angle of 7 - 15 degrees to the
shaft.
Assemble all parts in the reverse
sequence.
- Remove the control handle - see
10.1.
•
Take out the clamp screw (1).
•
Swing open the upper clamp (2)
and lift it away.
•
Remove bike handle (3) and
lower clamp (4).
•
If necessary, take springs (5) of
out lower clamp.
- Replace left grip if necessary -
see 10.1.
Reassemble in the reverse
sequence.
- Lubricate thread of clamp screw
with STIHLmultipurpose grease -
see 13.2
10. SHAFT 10.2 Bike Handle
10.1 Bike Handle (FS 120/200) (FS 300...450)
2
5
0
R
A
2
0
5
4
1
2
5
3
5
V
A
FS 120, 200, 300, 350, 400, 450, FR 350, 450 51
