Stihl FS 311 User Manual

FS 311
English
43
Definitions
1 Fuel Filler Cap
For closing the fuel tank.
2 Carburetor Adjusting Screws
For tuning the carburetor.
3 Starter Grip
The grip of the pull starter, for
starting the engine.
4 Manual Fuel Pump
Provides additional fuel feed for a
cold start.
5. Cover
Covers and protects the spark plug.
6 Muffler with Spark Arresting Screen
Muffler reduces exhaust noises and
diverts exhaust gases away from
operator.
Spark arresting screen is designed
to reduce the risk of fire.
7 Machine Support
For resting machine on the ground.
8 Throttle Trigger
Controls the speed of the engine.
9. Stop Switch
Switches the engine‘s ignition off
and stops the engine.
10 Throttle Trigger Lockout
Must be depressed before the
throttle trigger can be activated.
11 Bike Handle
For easy control of the machine with
both hands during cutting work.
12 Clamp Screw
Locks handlebar in selected
position.
13 Carrying Strip
The device to connect the clearing
saw to the harness.
14 Choke Knob
Connects the spark plug with the
ignition lead.
15 Air Filter Cover
Covers and protects the air filter
element.
16 Fuel Tank
For fuel and oil mixture.

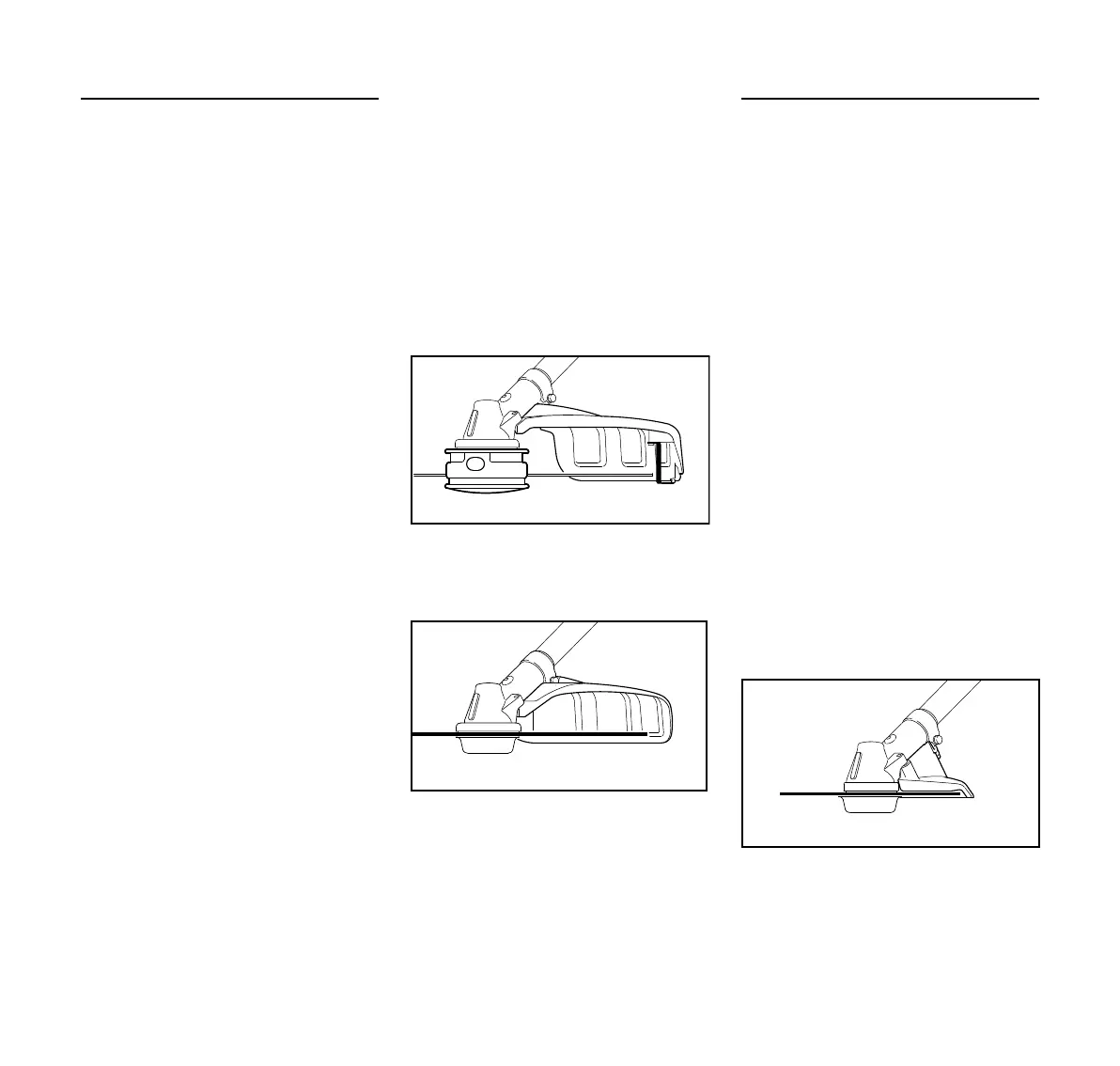

1 Mowing Head
2 Deflector for Mowing Heads
3 Line Limiting Blade
4 Metal Mowing Tool
5 Deflector for Metal Mowing Tools
Definitions
1 Mowing Head
The cutting attachment, i. e.
mowing head, for different
purposes.
2 Deflector for Mowing Heads
Designed to reduce the risk of injury
from foreign objects flung
backwards toward the operator by
the cutting attachment and from
contact with the cutting attachment.
3 Line Limiting blade
Metal blade at the deflector in order
to keep the line of the mowing head
at the proper length.
4 Metal Mowing Tool
The cutting attachment, i. e. blade,
made from metal for different
purposes.
5 Deflector for Metal Mowing Tools
Designed to reduce the risk of injury
from foreign objects flung
backwards toward the operator by
the cutting attachment and from
contact with the cutting attachment.
6 Circular Saw Blade
7 Limit Stop for Circular Saw Blade
1
002BA412 KN
2
3
002BA417 KN
5
4
7
002BA435 KN
6

Stihl FS 311 Specifications

General

Type	2-in-1 Brush cutter & String trimmer
Cordless	Yes
Head type	Blade
Handle type	U-type handle
Engine power	1.9 hp
Product color	Black, Metallic, Orange
Uncertainty K	2 m/s²
Rotational speed	8500 RPM
Number of strokes	4
Sound power level	110 dB
Fuel tank capacity	0.71 L
Engine displacement	36.3 cm³
Sound pressure level	99 dB
Cutting diameter (max)	480 mm
Power source	Gasoline

Weight and Dimensions

Length	1800 mm
Weight	7200 g
