Stihl FS 36 User Manual

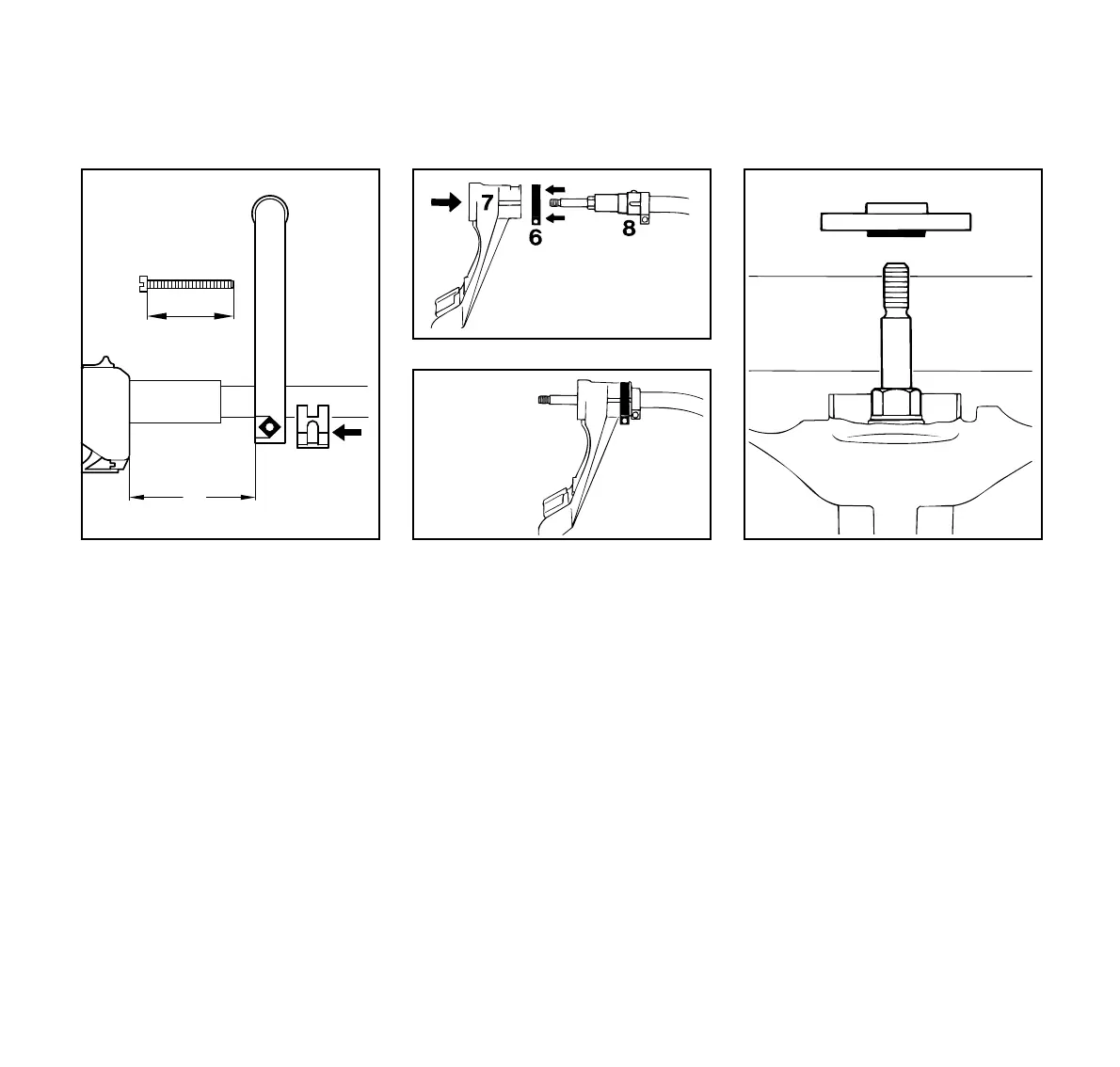

0RXQWLQJWKHORRSKDQGOH
•
Fit the loop handle 
on the drive tube -
15 cm $ forward of the
control handle .
•
Position the clamp  against the
drive tube and slide it into the loop
handle.
•
Fit square nut  in the loop
handle, insert the clamp screw 
from the other side and tighten
down securely.
$GMXVWLQJORRSKDQGOHWRPRVW
FRPIRUWDEOHSRVLWLRQ
•
Release clamp screw .
•
Move the loop handle along the
drive tube as required -
retighten the clamp screw.
0RXQWLQJWKHGHIOHFWRU
•
Slip the clamp 
over the deflector 
•
Push the deflector onto the
bearing housing  as far as stop.
•
Tighten the clamp firmly.
3UHSDULQJWKHEUXVKFXWWHU
•
Lay brushcutter down:
loop handle and engine hood facing
downwards,
 shaft facing upwards -
&XWWLQJKHDG67,+/$XWRFXW
 Remove thrust plate
 from shaft -
&XWWLQJKHDGV67,+/3RO\FXW
DQG3RO\FXW
 Slide thrust plate
 onto shaft and insert
 hexagon socket over
 hexagon -
$VVHPEOLQJWKH7ULPPHU
342BA018 KN
4
A
1
2
3
5
50 mm
(2")
342BA001
342BA019 KN
6
342BA020 KN
1
2
3
4
0RXQWLQJWKH&XWWLQJ+HDG
)6 

Stihl FS 36 Specifications

General

Engine Power	0.8 kW
Engine Type	2-stroke
Fuel Tank Capacity	0.33 L
Shaft Type	Straight
Displacement	27.2 cc
Starter System	Recoil
