Stihl FS 410 C K User Manual

FS 410 C K
English
11

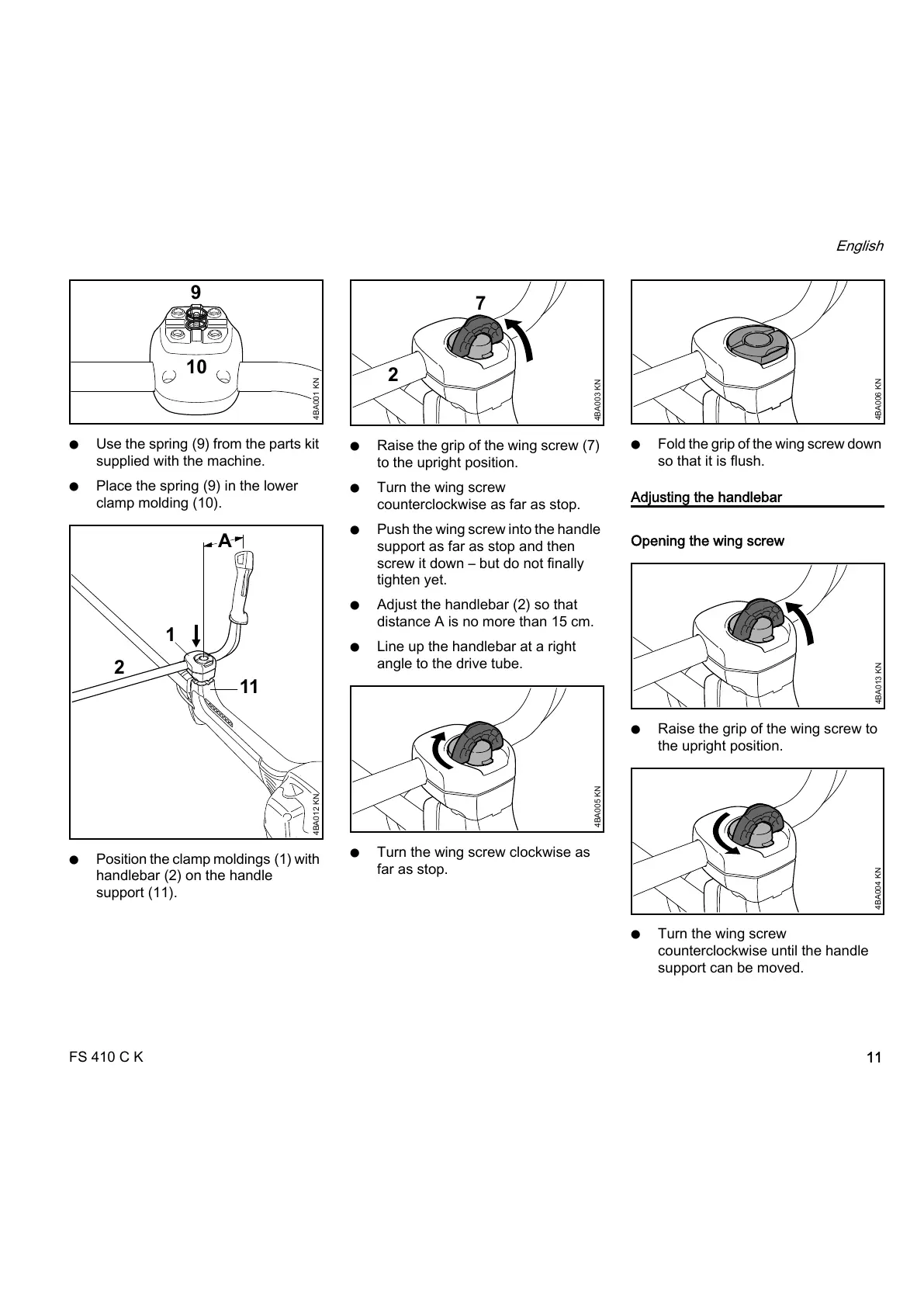

N Use the spring (9) from the parts kit
supplied with the machine.
N Place the spring (9) in the lower
clamp molding (10).
N Position the clamp moldings (1) with
handlebar (2) on the handle
support (11).
N Raise the grip of the wing screw (7)
to the upright position.
N Turn the wing screw
counterclockwise as far as stop.
N Push the wing screw into the handle
support as far as stop and then
screw it down – but do not finally
tighten yet.
N Adjust the handlebar (2) so that
distance A is no more than 15 cm.
N Line up the handlebar at a right
angle to the drive tube.
N Turn the wing screw clockwise as
far as stop.
N Fold the grip of the wing screw down
so that it is flush.
Adjusting the handlebar
Opening the wing screw
N Raise the grip of the wing screw to
the upright position.
N Turn the wing screw
counterclockwise until the handle
support can be moved.
4BA001 KN
9
10
11
1
4BA012 KN
2
A
2
4BA003 KN
7
4BA005 KN
4BA006 KN
4BA013 KN
4BA004 KN
