Stihl FS 46 - Mounting the Loop Handle

16
English
FS 45, FS 46

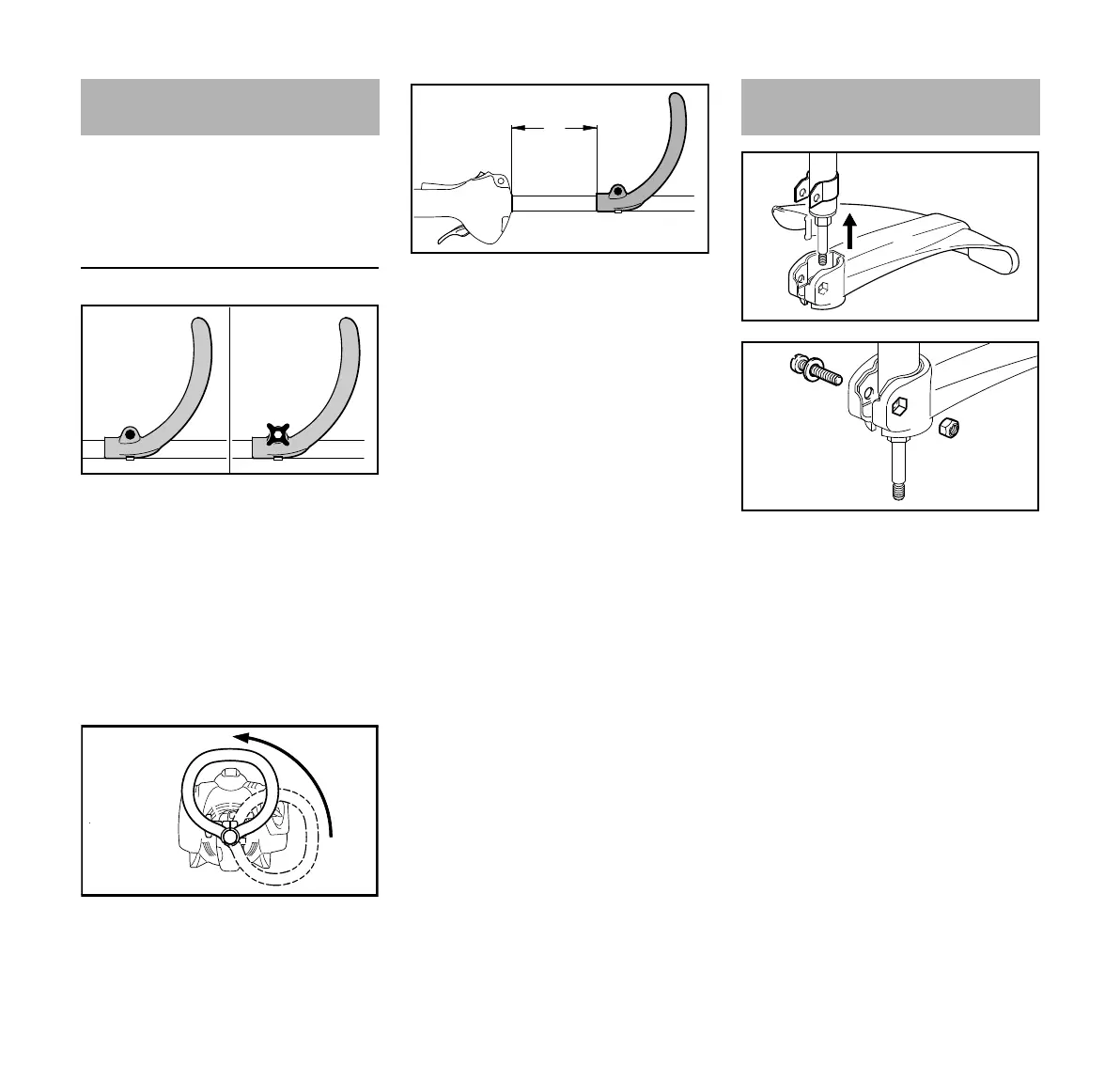

: Place friction liner in the loop handle : Fit the loop handle (1) on the drive
tube, approx. 20 cm (8 in) (A)
forward of the control handle (2).
: Push the spacer (3) (not all markets)
into the loop handle until it fits
snugly.
: Insert the screw (4) through the loop
handle and the spacer so that the
screw head locates in the hexagon
recess.
: Fit the washer (5) and wingnut (6)
and tighten down firmly.
Adjusting loop handle to most
comfortable position
: Loosen the wingnut (6).
: Slide or rotate the loop handle (1) on
the drive tube as required.
: Tighten the wingnut (6).
Mounting the Loop Handle
223BA017 KN
223BA018 KN
4
6
5
232BA069 KN
1
2
3
A
