FS 460 C-M, FS 460 C-M L, FS 490 C-M, FS 490 C-M L
English
24

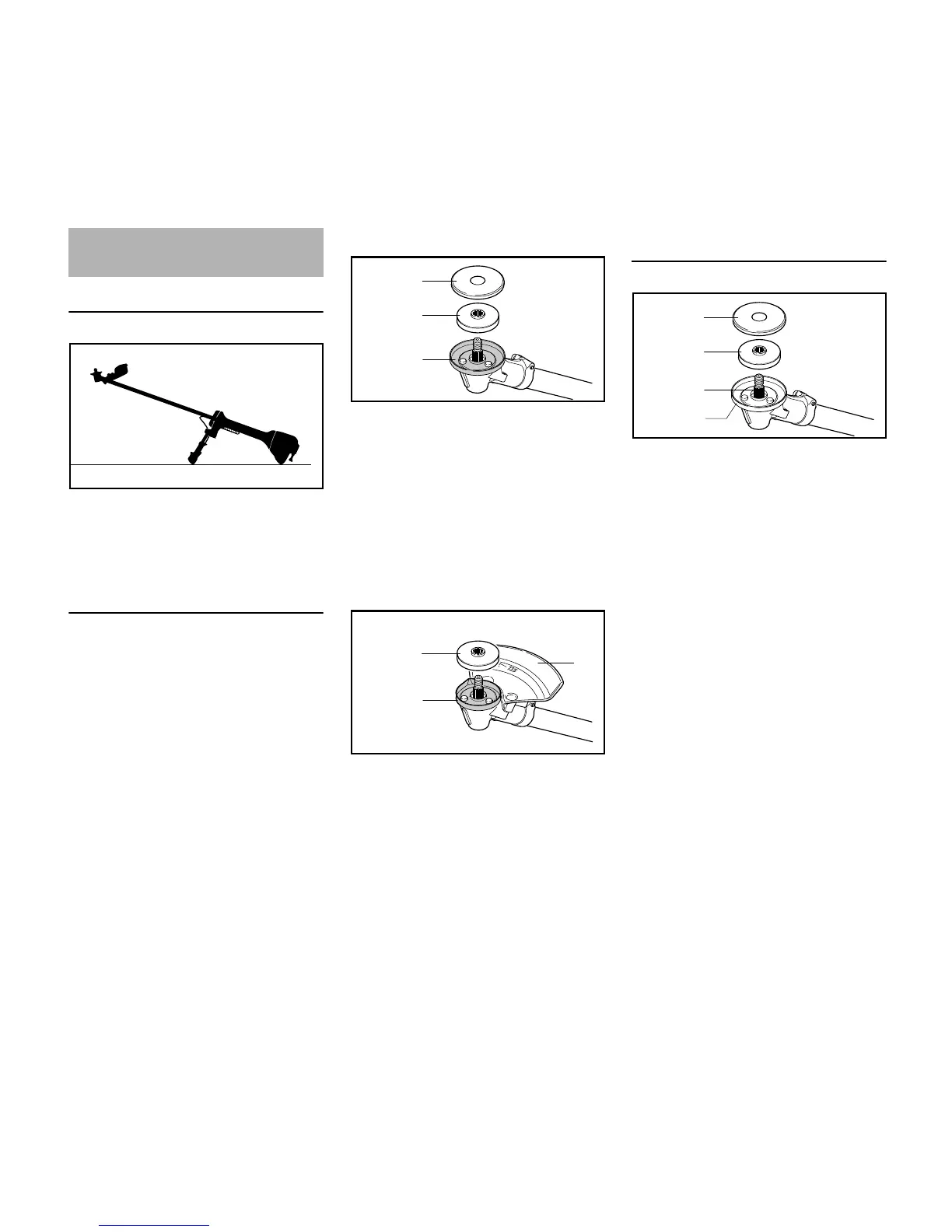

Placing power tool on the ground
N Shut off the engine.
N Lay your power tool on its back so
that the cutting attachment
mounting face is pointing up.
Use the Right Guard Ring
Your power tool comes standard with a
guard ring.
The guard ring is also available as a
special accessory.
The guard ring must be mounted with
particular care. Have this work
performed by your servicing dealer.
STIHL recommends a STIHL servicing
dealer.
Guard ring for mowing applications
Always fit guard ring (1) when using
– mowing heads
– grass cutting blades
– brush knives
– shredder blades
to ensure optimum protection against
grass cuttings.
Guard ring for sawing applications
Fit guard ring (2) only when you use
circular saw blades.
Mounting the Thrust Plate and Guard
Washer
N Fit the thrust plate (1) and guard
washer (2) on the shaft (3).
NOTICE
The thrust plate (1) on the gearbox is
necessary for mounting all cutting
attachments.
NOTICE
The guard washer (2) is required for
mounting
– mowing heads
– grass cutting blades
– brush knives
– shredder blades
to the gearbox. The guard washer is not
required for mounting circular saw
blades.
Mounting the Cutting
Attachment
