Correct adjustment of the throttle cable
is a precondition for correct operation of
the machine in all modes, from starting
to full throttle.
It may be necessary to readjust the
throttle cable after assembling the
machine or after a prolonged period of
operation.
– You can check and adjust of throttle
cable – see "Inspection and
Maintenance by User".
Use the Right Deflector
WARNING
Deflector (1) is approved for mowing
heads only and must therefore be
mounted before fitting a mowing head.
WARNING
Deflector (2) is approved for grass
cutting blades and brush knives only and
must therefore be mounted before fitting
a grass cutting blade or brush knife.
WARNING
The limit stop (3) is approved as a
deflector for circular saw blades only
and must therefore be mounted before
fitting a circular saw blade. It is also
necessary to change the guard ring (5),
see "Mounting the Cutting Attachment" /
"Mounting Circular Saw Blades".
Mounting the Deflector
Deflectors (1 to 3) are mounted to the
gearbox in the same way.
N Remove dirt from joints on gearbox
and defelector – make sure that no
dirt gets into the screw holes in the
gearbox.
N Place the deflector on the gearbox
(5).
N Insert the screws (6) and tighten
them down firmly.

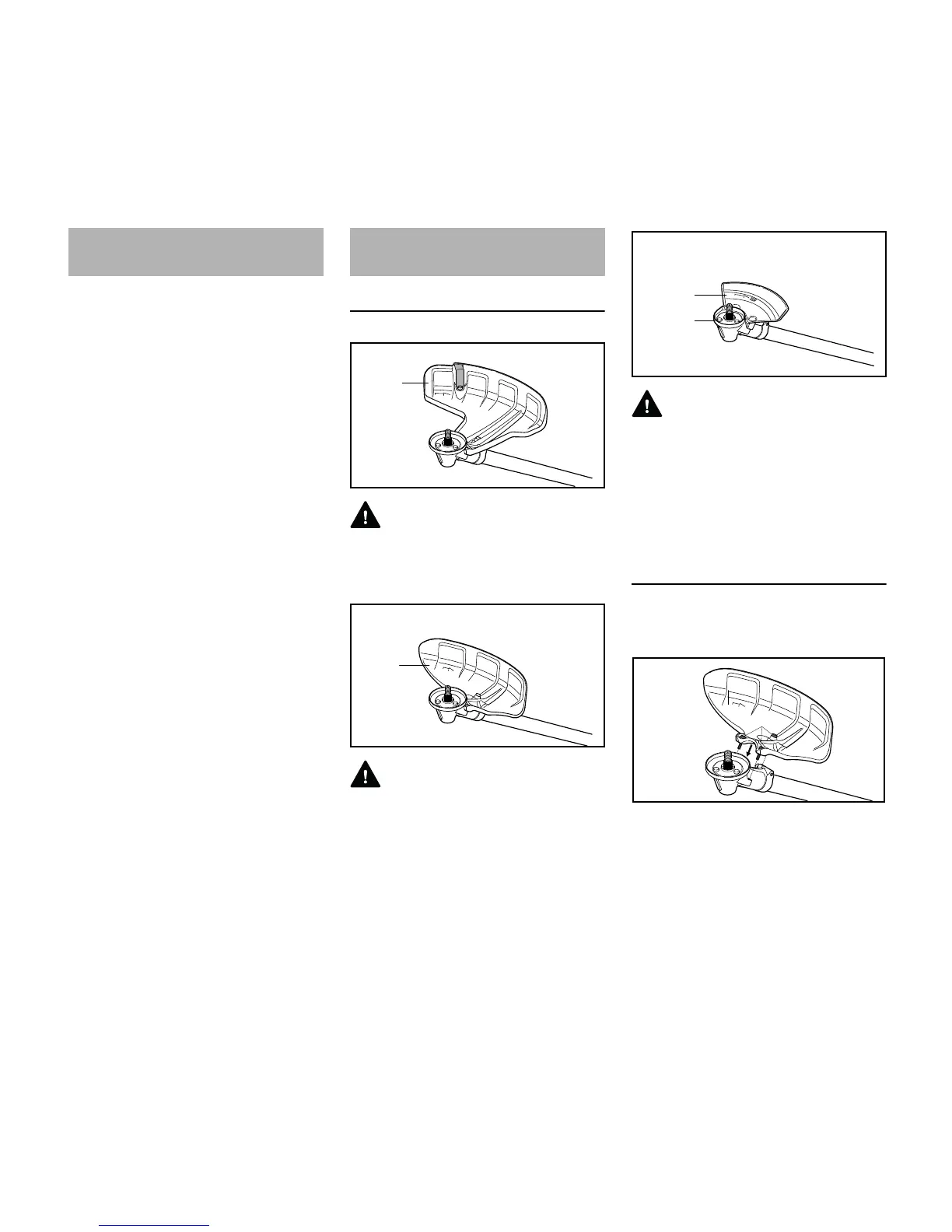

Adjusting the Throttle Cable Mounting the Deflector
1
002BA401 KN
2
002BA402 KN
3
002BA433 KN
4
6
5
002BA434 KN
