Stihl FS 460 C-M User Manual

FS 460 C-M, FS 460 C-M L, FS 490 C-M, FS 490 C-M L
English
22

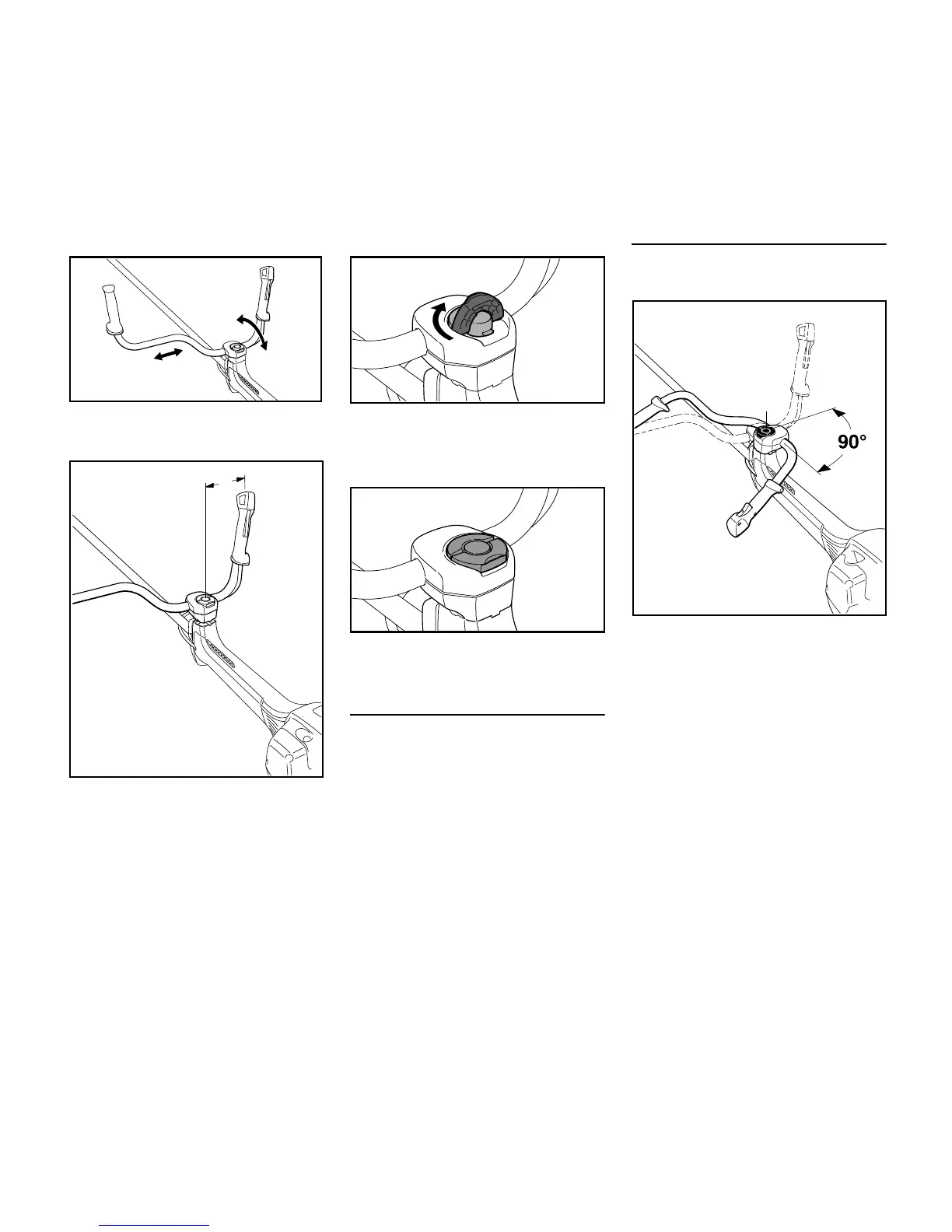

Lining up the handlebar
N Move the handlebar to the required
position.
N Adjust the handlebar (2) so that
distance A is about 17 cm (7 in).
Do not clamp the curved part of the
handlebar.
Closing the wing screw
N Rotate the wing screw clockwise
until it becomes difficult to turn.
N Tighten down the wing screw firmly.
N Fold the grip of the wing screw down
so that it is flush.
Checking the Throttle Cable
N After mounting the control handle,
check the throttle cable – see
chapter on "Adjusting the Throttle
Cable".
Swiveling the Handlebar
Transport position
N Loosen the wing screw (8) and
unscrew it until the handlebar (2)
can be turned clockwise.
N Turn the handlebar 90° and then
swing the handles down.
N Tighten down the wing screw (8)
firmly.
Working position
N Reverse the sequence described
above to swing the handles up and
turn the handlebar
counterclockwise.
6BA007 KN
3BA014 KN
2
A
6BA005 KN
6BA006 KN
3BA025 KN
2
8
