FS 460 C-M, FS 460 C-M L, FS 490 C-M, FS 490 C-M L
English
21

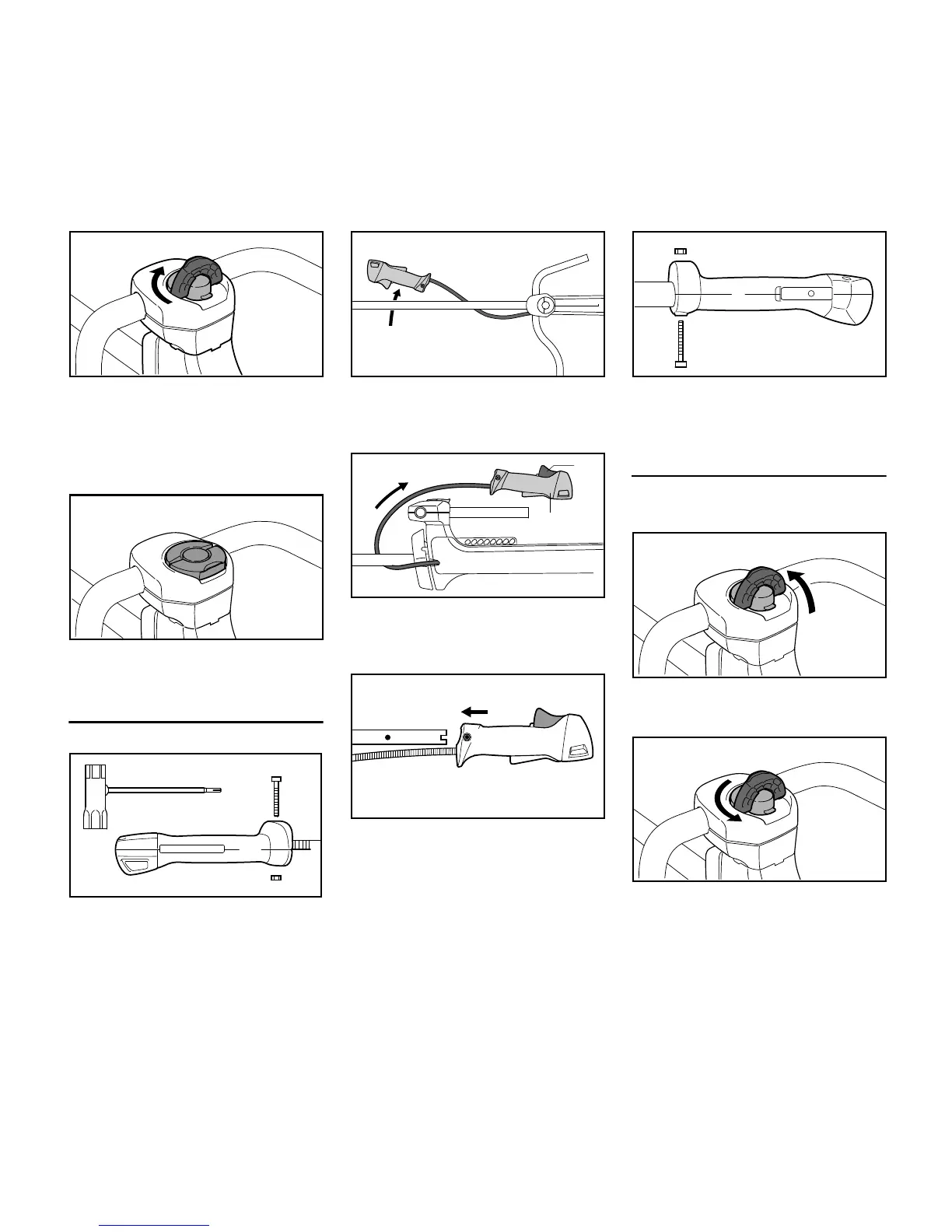

N Rotate wing screw clockwise until
the lower clamp molding (6) butts
against the handle support (7).
N Only tighten the wing screw
moderately.
N Fold the grip of the wing screw down
so that it is flush.
Mounting the Control Handle
N Take out the screw (11) and remove
the nut (12) from the control
handle (1).
N Pass the control handle (1) under
the drive tube and put it down on the
right-hand side of the machine.
N Swing the control handle (1) behind
the handlebar so that the throttle
trigger (13) is facing up.
N Push the control handle (1) in this
position onto the end of the
handlebar (2) until the holes (14)
are in alignment – the throttle
trigger (13) points up.
N Fit the nut (12) in the control
handle (1), insert the screw (11)
and tighten it down firmly.
Adjusting the Handlebar
Opening the wing screw
N Raise the grip of the wing screw to
the upright position.
N Turn the wing screw
counterclockwise until the handle
support can be moved.
7
6
3BA010 KN
3BA026 KN
11
12
1
002BA451 KN
1
3BA011 KN
3BA012 KN
1
13
13
14
14
2
1
002BA458 KN
11
12
1
002BA459 KN
3BA027 KN
3BA028 KN
