FS 460 C-M, FS 460 C-M L, FS 490 C-M, FS 490 C-M L
English
20
The brushcutter is available with two
different handlebars:
2 Handlebar for standard machines
3 Handlebar for machines with
electric handle heating
The machine is supplied with the clamp
moldings (4) mounted on the
handlebars (2, 3).
N Do not change the position of the
clamp moldings on the handlebar
until the control handle is mounted.
The mounting procedure is the same for
both types of handlebar. Therefore, the
following description only shows
handlebar (2).

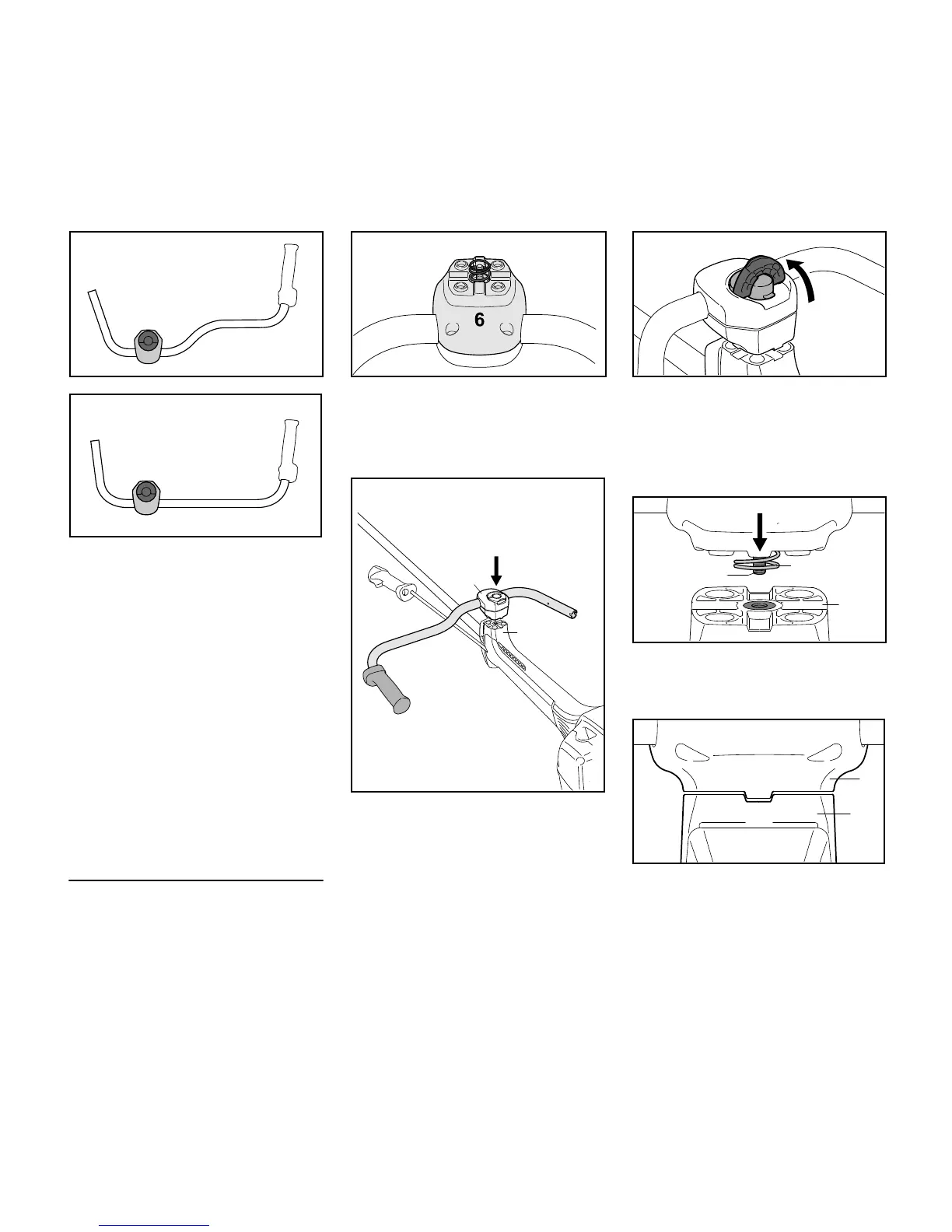

Mounting the Handlebar
To assemble the swivelling handle
support it is necessary to fit a spring in
the clamps and secure them to the
handle support on the machine.
N Use the spring (5) from the parts kit
supplied with the machine.
N Push the spring (5) into the lower
clamp molding (6).
N Position the clamp moldings (4) with
handlebar (2) on the handle
support (7).
N Do notturn the handlebar in the
clamp moldings.
N Raise the grip of the wing screw (8)
to the upright position.
N Rotate the wing screw
counterclockwise and tighten it only
moderately.
N Position wing screw (8) in threaded
insert in handle support (7) –
against pressure of spring (5).
N Position the clamp moldings so that
the tabs (9) on the lower clamp
molding (6) line up with the
slots (10) in the handle support (7).
3BA004 KN
4
2
2BA001 KN
4
3
3BA005 KN
5
7
3BA006 KN
2
4
8
3BA007 KN
5
8
3BA008 KN
7
6
10
7
9
3BA0009 KN
