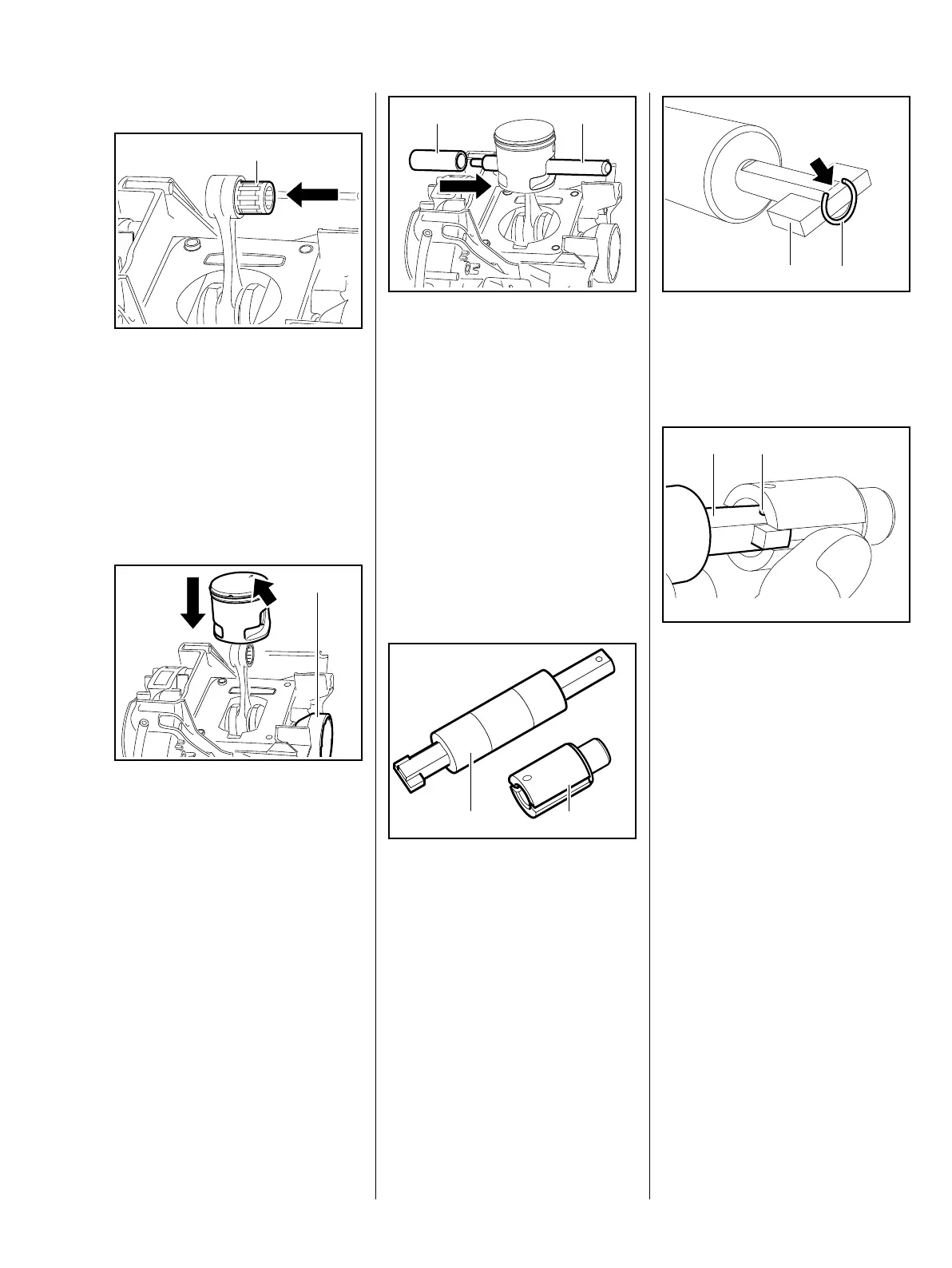

37FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M
Installation
Remove needle bearing from the
rod eye, examine and clean it,
replace if necessary
: Coat the needle cage (1) with oil
and insert it in the rod eye
Examine the piston rings and
replace if necessary, b 5.8
: Orient the piston as illustrated so
that the marking (arrow) faces
rearward and the starter cup (1)
is on the right
Position the piston on the rod eye
5904RA086 TG
1
5904RA087 TG
1
Push assembly drift (2) into the
piston on the side with the
installed snap ring
: Push the assembly drift (2)
1110 893 4700 with the stub end
first through piston hole and rod
eye (needle cage) and secure
the piston
Coat the piston pin with oil
: Fit the piston pin (1) on the stub
of the assembly drift (2) and slide
it into the piston
: Remove the sleeve (1)
5910 893 1709 from the installing
tool (2) 5910 890 2211
5904RA088 TG
1 2
5904RA089 TG
2
1
: Attach the snap ring (1) to the
magnet (2) and align it so that the
snap ring gap is on the flat
side (arrow)
: Push the slotted opening of the
sleeve over the magnet and snap
ring
The inner pin (1) must point towards
the flat face of the
shaft (2).
165RA153 TG
1
2
5904RA090 TG
2
1
