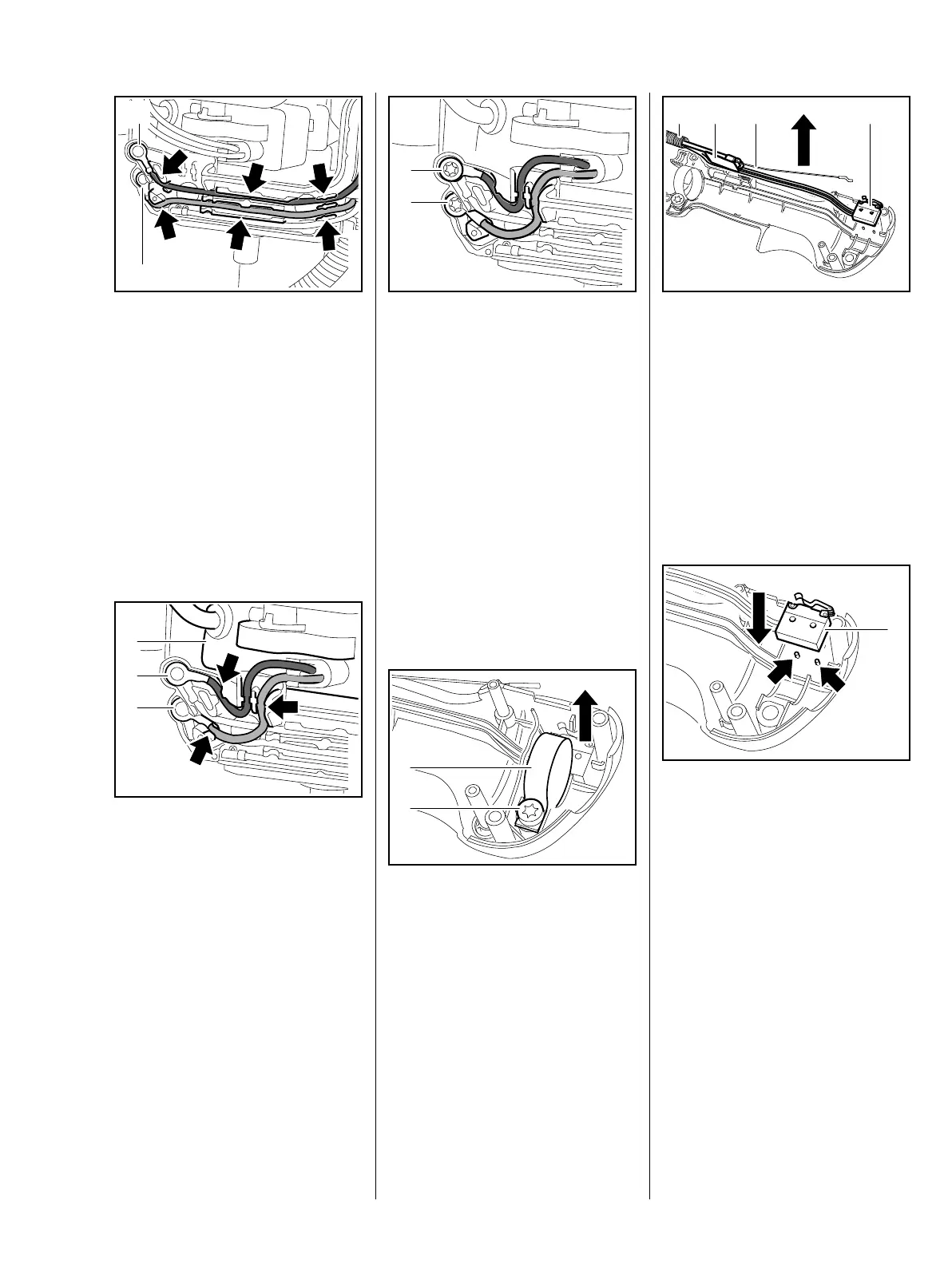

51FS 240 C, FS 260 C, FS 360 C, FS 410 C, FS 460 C-M
: Insert lead (red) of the M-Tronic
with the lug (1) in the mount –
crimped side must face cable
holder
: Insert lead (blue) of the short
circuit wire with the lug (2) in the
mount – crimped side must face
cable holder
: Starting at the lug, press both
leads into the guides (arrows) as
far as they will go
: Insert lead (red) of the control
unit (ignition module) (1) with the
lug (2) in the mount – crimped
side must face cable holder
: Insert lead (blue) of the control
unit (ignition module) (1) with the
lug (3) in the mount – crimped
side must face cable holder
: Starting at the lug, press both
leads into the guides (arrows) as
far as they will go
2
1
5904RA135 TG
2
5904RA136 TG
3
1
: Insert and tighten down the
screws (1)
Reassemble remaining parts in
reverse order
6.6.4 Short circuit wire on
control handle for loop
handle,
removal and installation
Remove throttle trigger and
trigger interlock, b 10.1.1
Remove slide control, b 10.1.2
: Unscrew screw (1) and remove
clamp (2)
1
5904RA259 TG
1
5904RA149 TG
1
2
: Ease out microswitch (1)
: Pull out wiring harness (2) with
throttle cable (3) and slide (4)
Remove throttle cable and short
circuit wire from engine,
without M-Tronic, b 6.6.2,
with M-Tronic, b 6.6.3
Installation
: Push the microswitch (1) onto the
pins (arrows) as far as possible
5904RA150 TG
12 4 3
4902RA216 TG
1
